9-Inch Touch Screen 4CH DVR Split Monitor AHD Car Reverse Aid Function Front Rear View Truck Monitor Screen

9-Inch Touch Screen 4CH DVR Split Monitor AHD Car Reverse Aid Function Front Rear View Truck Monitor Screen

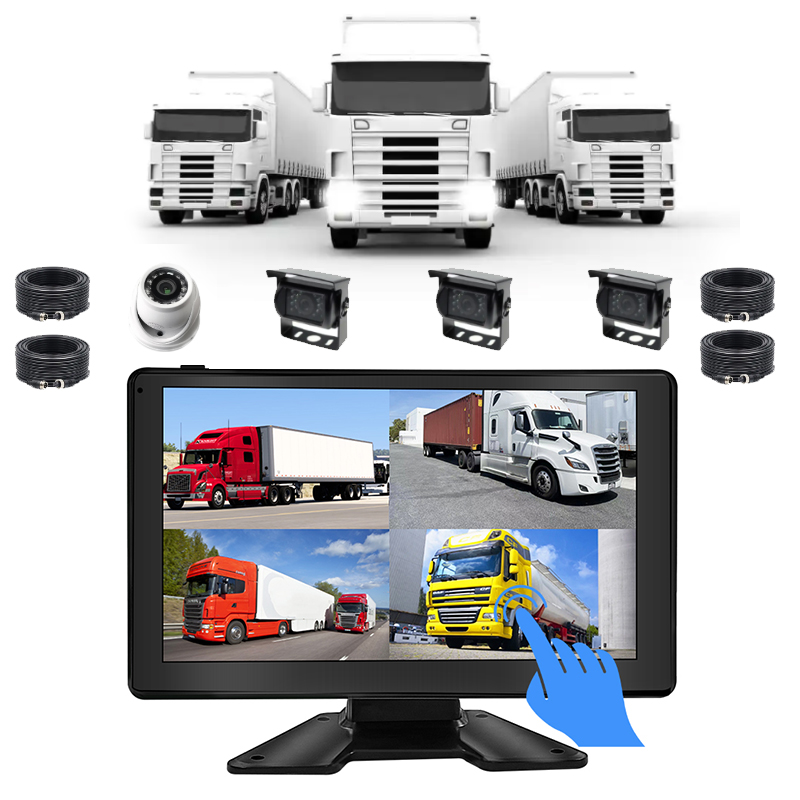

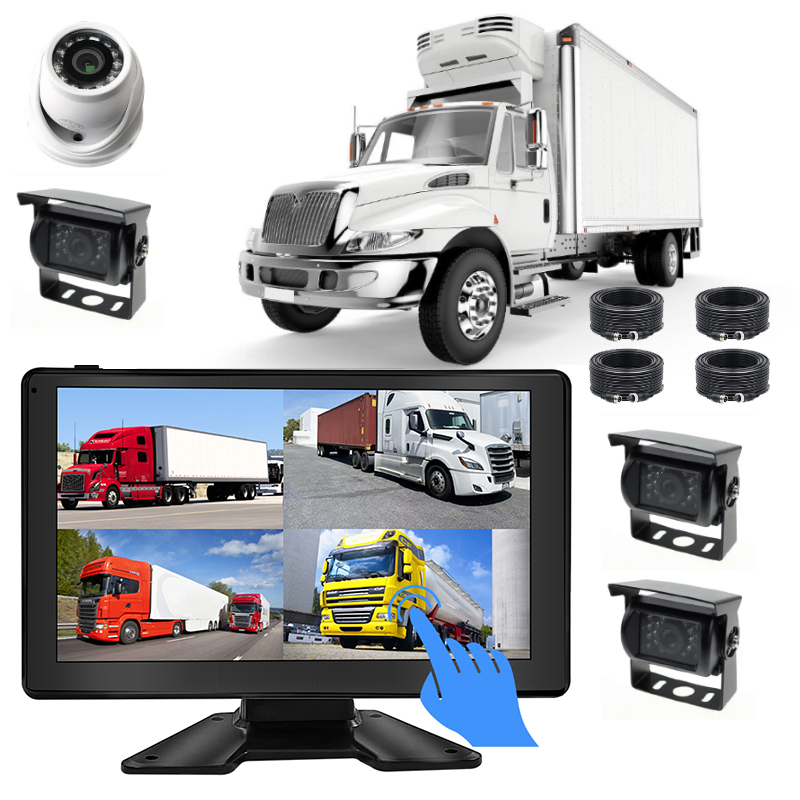

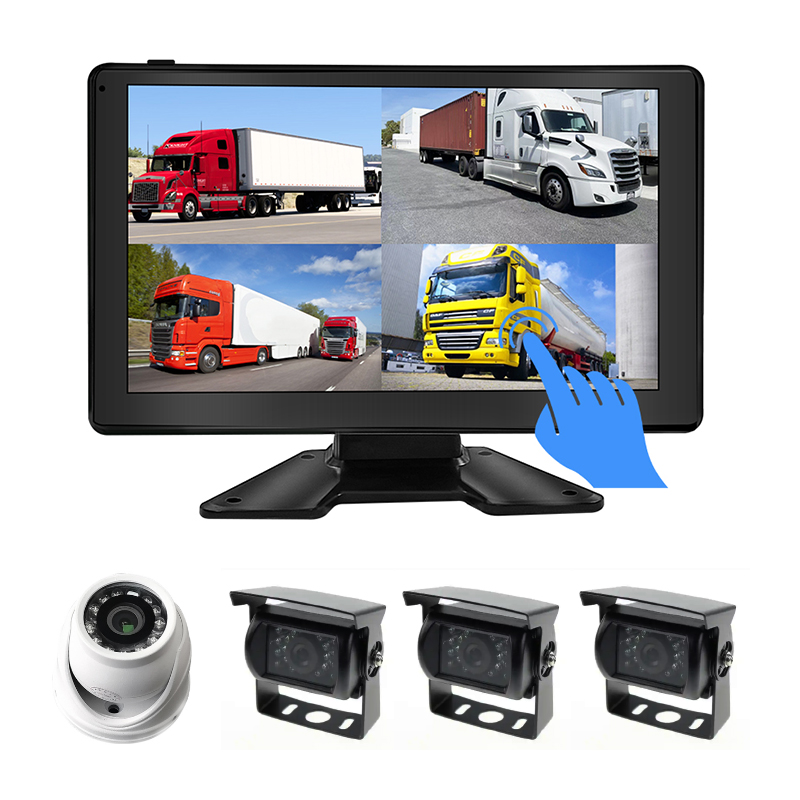

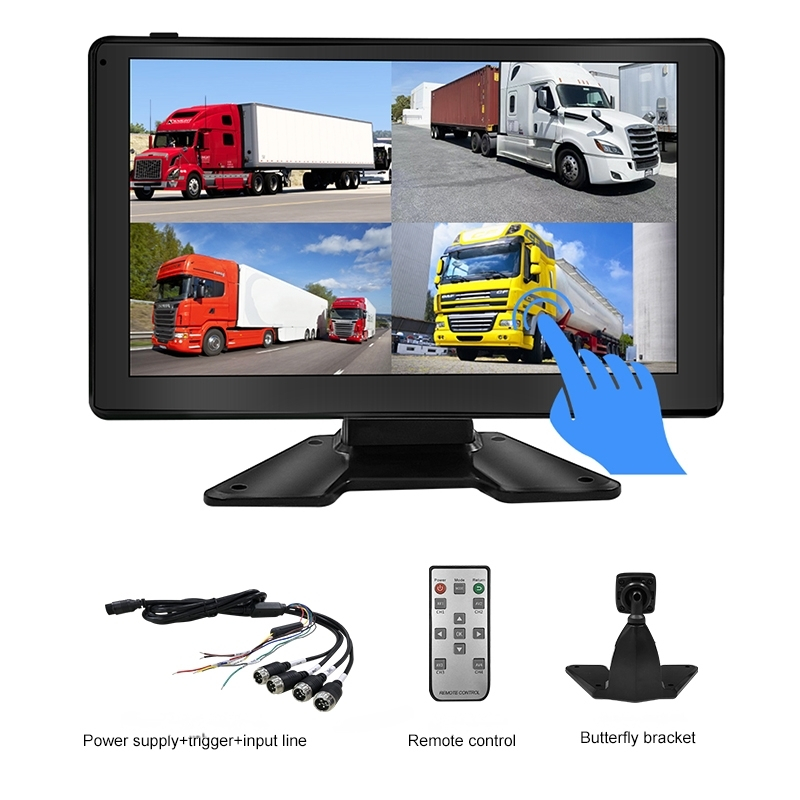

This 4CH touch screen split monitor is a versatile surveillance device with a 1024×600 resolution screen. It supports 4-channel 1080P video input, compatible with AHD and CVBS signals. Equipped with an ARM Cortex-A7 quad-core CPU and 4GB DDR4 RAM, it ensures smooth operation. The device offers boot and timing recording modes, stores up to 1TB TF card with loop coverage, and operates on DC8-36V power. Its compact size (230×140×35mm) and lightweight (0.9kg) make it suitable for various applications.

Quantity:
Availability:





Inquire Add to Basket

Model:
SMT838-924 MDVR Monitor

Core Features of APC Camera

1. High-Performance Processor

Our 4CH touch screen split monitor is powered by an ARM Cortex-A7 quad-core processor running at 1.2GHz, combined with 4GB DDR4 RAM. This robust configuration ensures smooth and efficient operation, even when handling multiple high-definition video streams. The processor's speed and memory capacity allow for real-time video processing and quick response times, making it ideal for demanding surveillance applications.

2. Versatile Video Input and Compatibility

The monitor supports 4-channel 1080P video input with backward compatibility for CVBS signals. It can handle a variety of video resolutions, including 1080P, 720P, and D1, and is compatible with AHD 1080P/720P/960P and CVBS signal sources. This flexibility allows users to integrate both modern and legacy camera systems without the need for additional conversion equipment, saving on costs and simplifying installation.

3. Efficient Storage and Recording Options

Equipped with a maximum 1TB TF card storage capacity, the monitor offers ample space for long-term video recording. It features loop coverage recording, which automatically overwrites the oldest footage when the storage is full, ensuring continuous operation without manual intervention. This feature is particularly useful for 24/7 surveillance applications where constant recording is essential.

4. Wide Operating Voltage Range

The monitor operates on a wide voltage range of DC8-36V, making it highly adaptable to different power supply conditions. This flexibility ensures stable performance in various environments, from vehicles with fluctuating power supplies to industrial settings with diverse electrical systems. The wide voltage range reduces the risk of power-related issues and enhances the reliability of the surveillance system.

5. User-Friendly Interface and Compact Design

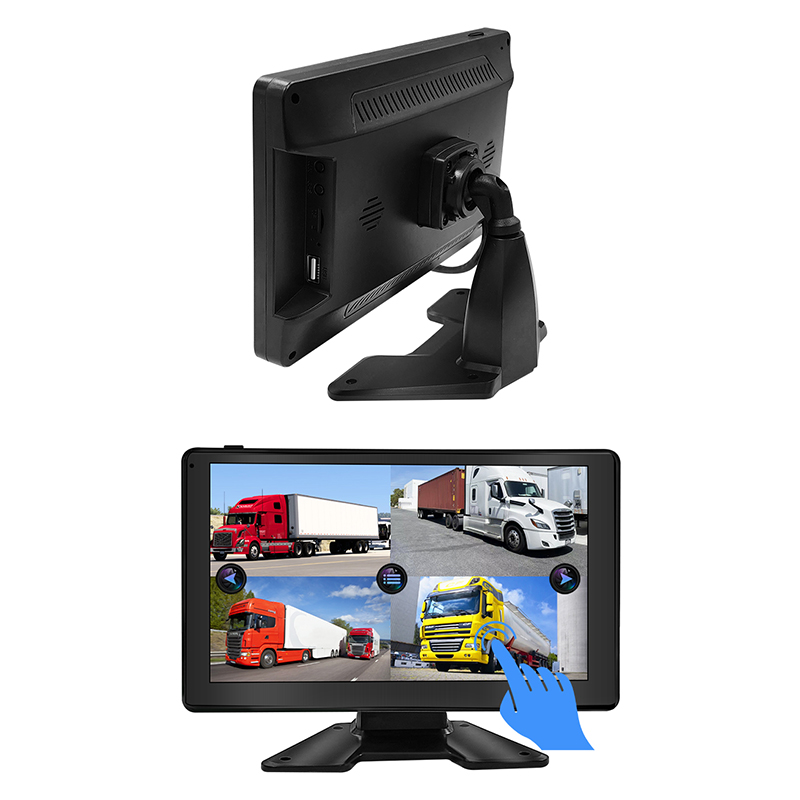

The 4CH touch screen split monitor features a 1024×600 resolution screen with a user-friendly touch interface. The compact size (230mm×140mm×35mm) and lightweight design (0.9kg) make it easy to install in tight spaces, such as vehicle interiors or small retail environments. The touch screen allows for intuitive operation, enabling users to easily switch between camera views and adjust settings without the need for additional control devices.

6. Flexible Installation Options

With extension cable options ranging from 3m to 15m, the monitor can be installed in a variety of locations to meet specific surveillance needs. Whether it's in a vehicle, small shop, or industrial setting, the flexible cable lengths ensure that the monitor can be positioned optimally for maximum visibility and convenience. This adaptability makes it a versatile solution for a wide range of applications.

Scenes Solutions

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

Truck

School Bus

bus monitor

Taxi

Freight Trucks

Rail Transit

Trucks

Emergency & Rescue

Specification

Item		Parameter
Plan		Hisilicon solution
System language		Simplified/Traditional Chinese,English,(other languages can be customized)
Video compression format		H.264
OSD		Character overlay function, supports time and date, channel characters, segmentation borders, vehicle information and other image overlays
Video and recording System	Video input	4CH AHD1080P/960P/720P and 960H, D1 (CVBS) and other video inputs; Compatible with CVBS and AHD signal mixed input; Compatible with PAL and NTSC mixed input;
	Preview function	12 kinds of multi-screen mode splicing preview, support manual/voltage trigger full screen display function
	Display resolution	1024*600
	Video resolution	1920*1080
	Video quality	Ultra-clear, high-definition, standard, and ordinary 4-level video recording adjustable
	Video method	Automatic recording when powered on
Audio	Audio input	Not support
	Audio output	Not support
	Compression format	G.711u
Trigger input		3 groups of I/O triggers, support 12-24V power supply to trigger full screen display
Memory card	TF card	Supports up to 1TB memory card, automatically deletes when full, and overwrites in a loop
	Upgrade method	Support TF/U disk video card upgrade
	Storage method	Proprietary raw disk storage method: real-time storage, without missing a second
	USB	Upgrade/backup/recording/mouse operation
Video playback	Video search	You can choose the last three days, last week, last two weeks, last month, all, etc.
	Playback	4CH synchronous playback, support pause, fast forward and fast rewind
	Playback	Support 2, 4, 8 times fast forward or rewind
Power supply and consumption	Power management	Adaptive wide power input, with protection functions such as low voltage, over voltage, reverse connection and short circuit
	Input voltage	DC:+12V ~ +36V
	Output voltage	+12V/3A
	Consumption	Normal working state <8W (excluding camera)
Working environment	Temperature	-30℃ to +70℃
Working environment	Humidity	0% to 50%

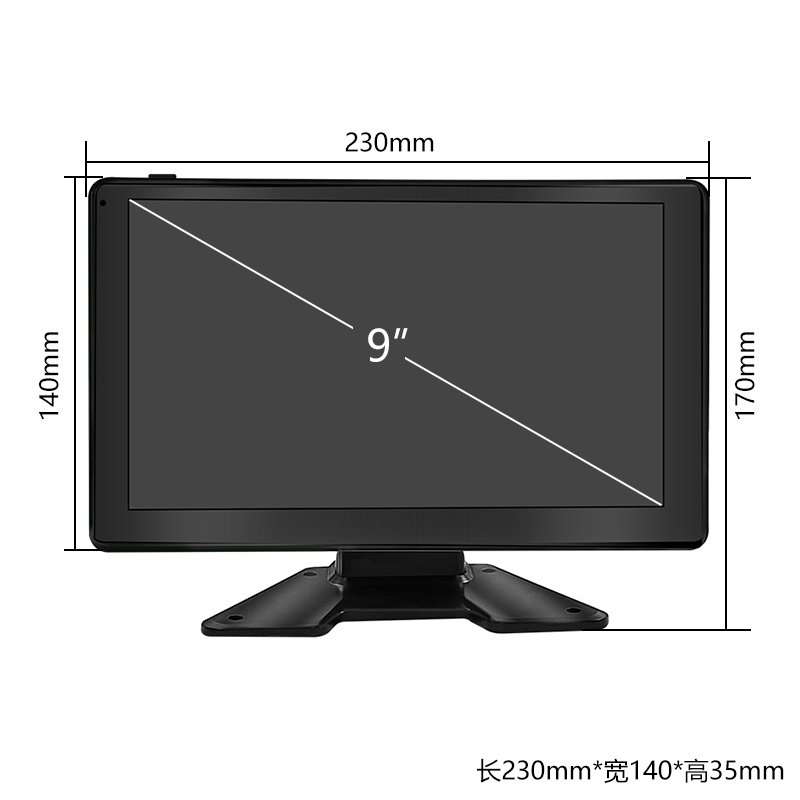

Other	Size	230mm140mm35mm
