9 Inch Vehicle Monitor 1080P Backup Camera with 4G Wifi And GPS for Trucks Car Assist Reversing 1 Year Warranty

9 Inch Vehicle Monitor 1080P Backup Camera with 4G Wifi And GPS for Trucks Car Assist Reversing 1 Year Warranty

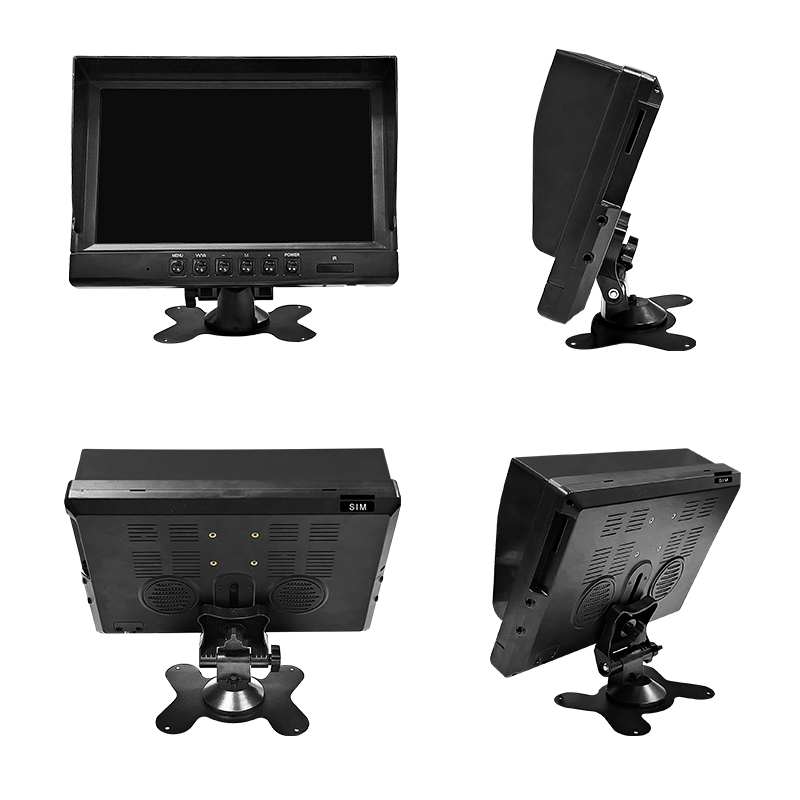

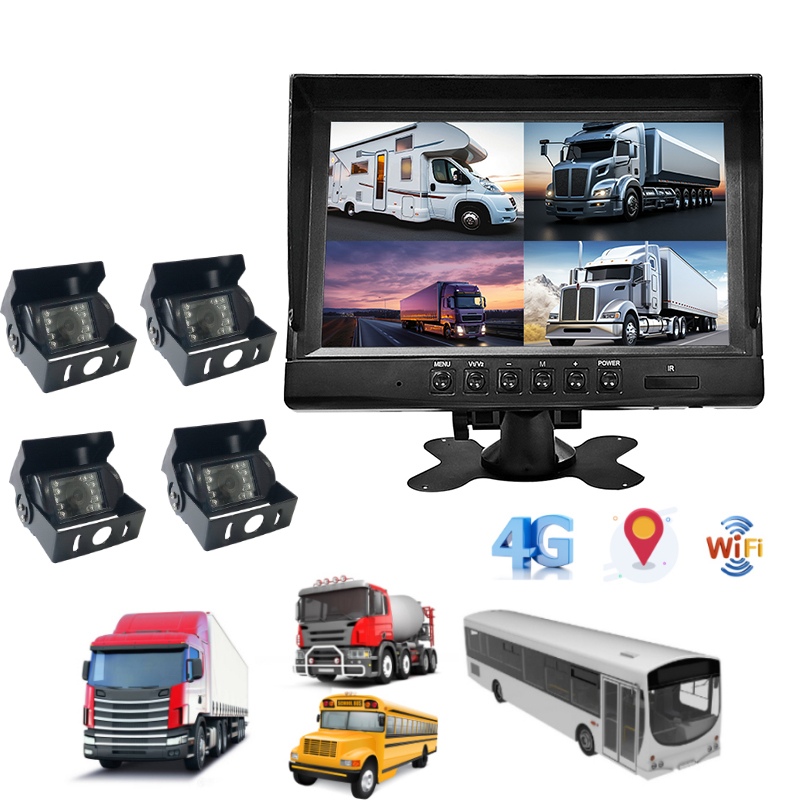

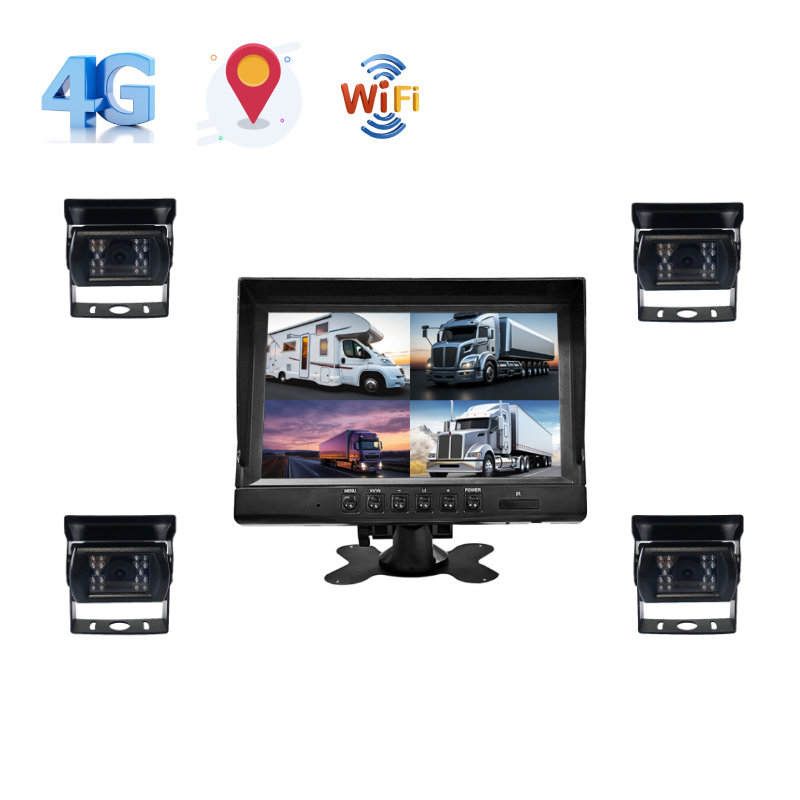

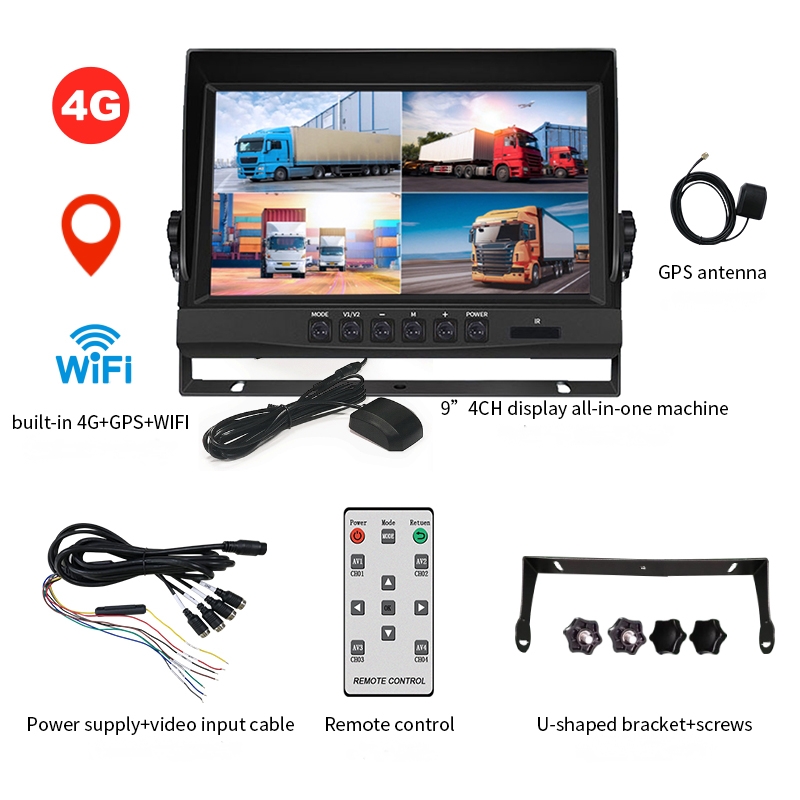

This 9-inch 4CH split monitor is designed for versatile surveillance applications. It features a Hi3521A chip and runs on Linux, supporting H.264 compression. It accepts 4CH AHD and CVBS inputs with resolutions up to 1080P. The monitor offers 1920×1080 display resolution and supports power-on/timed recording, with up to 1TB SD card storage. It includes 3 groups of I/O triggers for full-screen display, operates on DC 12-36V, and works in -30℃ to +70℃. Optional GPS, 4G, and WIFI enhance its functionality.

Quantity:
Availability:





Inquire Add to Basket

Model:
SMT838-9-SD MDVR Monitor

Core Features of APC Camera

1. Advanced Technology Integration

Powered by the Hi3521A chip and Linux OS, the monitor delivers high performance with H.264 compression. It supports up to 1080P resolution, ensuring clear and detailed video output.

2. Versatile Input Compatibility

The monitor accepts 4-channel AHD and CVBS inputs, covering resolutions from 1080P to D1. This flexibility allows seamless integration with various camera systems.

3.Robust Storage and Recording

Equipped with up to 1TB SD card storage, the monitor supports power-on and timed recording. Its high-resolution display ensures detailed video playback.

4.Wide Operating Range

Designed for harsh environments, the monitor operates between -30℃ and +70℃. It supports a wide input voltage range of DC 12-36V, ensuring stability in diverse conditions.

5.Flexible Installation Options

With 3 groups of I/O triggers and extension cables up to 15m, the monitor offers versatile installation solutions, enhancing ease of use.

6. Enhanced Connectivity

Optional GPS, 4G, and WIFI capabilities expand the monitor’s application range, making it suitable for modern surveillance needs.

Scenes Solutions

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

Truck

School Bus

bus monitor

Taxi

Large Truck

Forklift

Bus

Emergency & Rescue

Specification

Item		Parameter
Plan		Hisilicone 3521A
System language		Chinese, Traditional Chinese, English, Russian, Korean, and others (customizable)
Video compression format		H. 264
OSD		Character overlay function, supporting image overlay of time and date, channel characters, segmentation borders, vehicle information, etc
Video and recording system	Video input	4CH AHD1080P/960P/720P and 960H, D1 (CVBS) video inputs; 2CH HD+2CH SD, 3CH HD+1CH SD, 1CH HD+3CH SD video input; Compatible with mixed input of CVBS and AHD signals; Compatible with mixed input of PAL and NTSC formats;
	Preview function	6 multi screen mode splicing preview, supporting manual/voltage triggered full screen display function
	Display resolution	1024*600
	Video resolution	1920*1080
	Video image quality	Ultra clear, high-definition, standard, and regular 4-level video recording adjustable
	Video recording method	Automatic recording upon startup/timed recording
Audio	Audio input	Not support
	Audio output	Not support
	Compression format	G. 726 compression format
Optional function	3G/4G	Built in 3G or 4G communication module

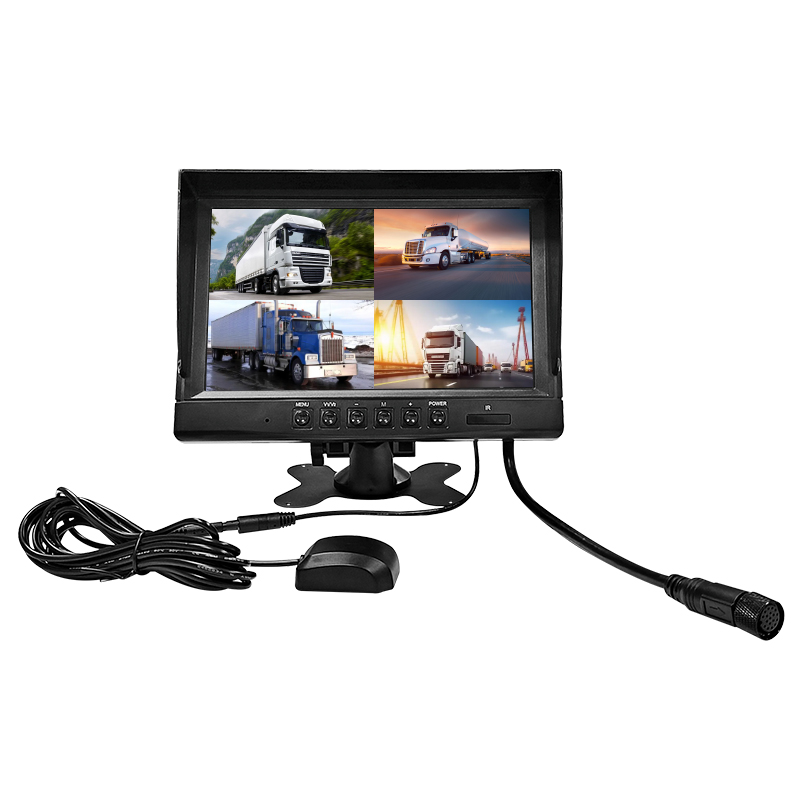

	GPS	Built in GPS module; Latitude, longitude, speed, etc. can be overlaid onto the video file, and can also be uploaded wirelessly
	WIFI	Built in WIFI module
	Speed sensor	Not support
	RS232/485	Not support
Trigger input		3 sets of I/O triggers, supporting full screen display triggered by 12-24V power supply
Memory card	SD	Supports 1TB storage card, automatic full disk deletion, and cyclic overwrite
	Upgrade method	Support SD video card upgrade
	Storage method	Exclusive bare disk storage method: real-time saving, no leakage of seconds
	USB	No
Video replay	Video search	You can choose from the last three days, last week, last two weeks, last month, all, etc;
	Playback	4CH synchronous playback, supporting pause, fast forward, and rewind
	Playback	Supports fast forward or rewind at speeds of 2, 4, and 8 times
Power supply and consumption	Power management	Adaptive wide range power input, with protection functions such as low voltage, overvoltage, reverse short circuit, etc;
	Input voltage	DC:+12V~+36V (with camera operation requiring input voltage above 13V)
	Output voltage	+11.5V/3A
	Power waste	Normal working condition<5W (excluding display screen and camera)
Working environment	Temperature	-30℃ to +70℃
Working environment	Humidity	20% to 80%
Other	Size	229mm154mm64mm
Other	Net weight

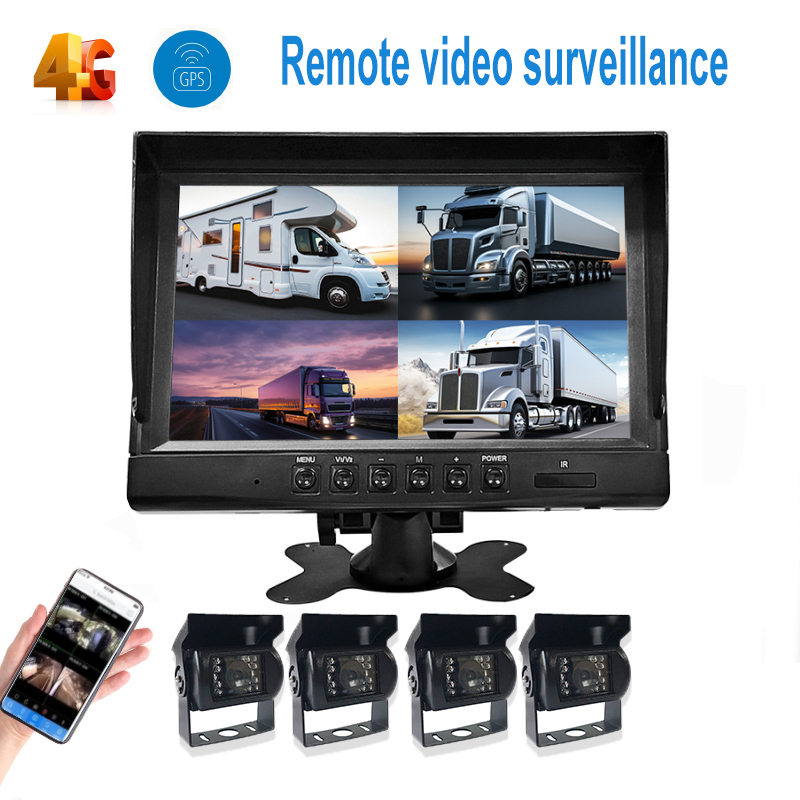

Platform software	PC software and web	Vehicle information analysis, real-time video preview, voice intercom, GPS upload, alarm upload, central command issuance, parameter configuration, remote video playback and other equipment management
Platform software	Mobile software	Real time video preview, voice intercom, GPS positioning, message notification, etc
Software upgrade	USB	Not support
	SD	Can be used for software upgrades and video storage
	Server	Remote upgrade of client server
