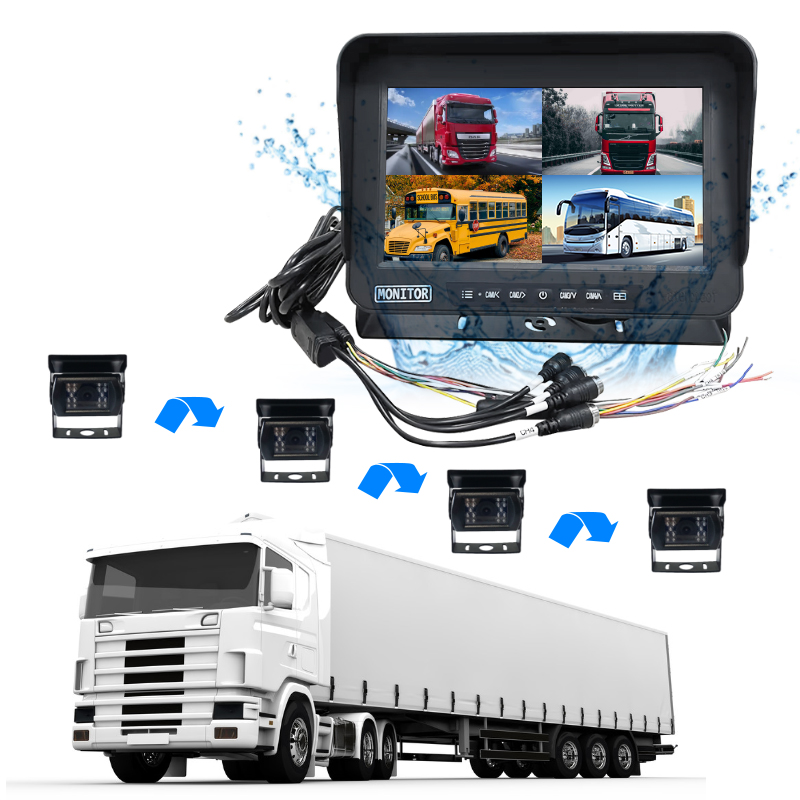

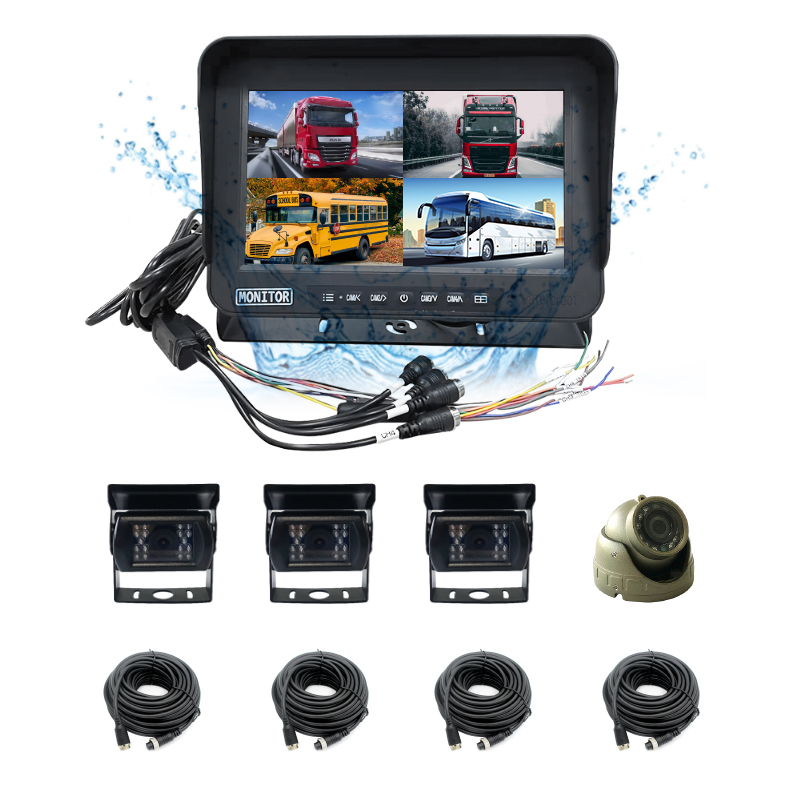

10.1inch 4CH Waterproof Split Monitor DVR 1080p Reverse Backup Camera CCD Night View Front Camera for Tour Bus Truck

10.1inch 4CH Waterproof Split Monitor DVR 1080p Reverse Backup Camera CCD Night View Front Camera for Tour Bus Truck

The 10.1-inch 4CH waterproof split monitor is designed for versatile surveillance applications. It features a Hisilicone chip and runs on a Linux system, with a display resolution of 1024×600. Supporting H.264 compression and 4-channel 1080P video input (backward compatible with CVBS), it offers clear image quality. The monitor includes 1TB TF card storage, supports 4-channel synchronous playback, and operates on a wide voltage range (DC +12V to +36V). With IP69 waterproof rating and a robust temperature range (-30℃ to +70℃), it is ideal for automotive, industrial, and outdoor surveillance.

Quantity:
Availability:





Inquire Add to Basket

Model:
SMT838-1034FS MDVR Monitor

Core Features of APC Camera

1. High-Performance Chip and System

Equipped with a Hisilicone chip and running on a Linux system, this monitor ensures stable and efficient operation. The Linux system is known for its reliability and security, making it ideal for surveillance applications. The Hisilicone chip provides fast processing speeds, ensuring smooth video playback and minimal lag.

2. Robust Video Compression and Compatibility

The monitor supports H.264 video compression, which reduces file sizes by up to 50% compared to older formats, saving storage space. It also offers 4-channel 1080P video input, backward compatible with CVBS, allowing users to connect multiple types of cameras without compatibility issues.

3. Wide Voltage Range and Low Power Consumption

Designed for versatility, the monitor operates on a wide voltage range of DC +12V to +36V, making it suitable for various power sources. Additionally, it consumes less than 8W in normal operation (without cameras), ensuring energy efficiency and reduced operating costs.

4. Exceptional Environmental Durability

With an IP69 waterproof rating, the monitor is highly resistant to water and dust, making it suitable for harsh environments such as outdoor and industrial settings. It also operates within a wide temperature range of -30℃ to +70℃, ensuring reliability in extreme conditions.

5. Convenient Storage and Playback Options

The monitor supports up to 1TB of internal TF card storage, providing ample space for long-term video recording. It also offers 4-channel synchronous playback, allowing users to review footage from multiple cameras simultaneously. This feature is particularly useful for comprehensive surveillance systems.

6.Flexible Installation and Customization

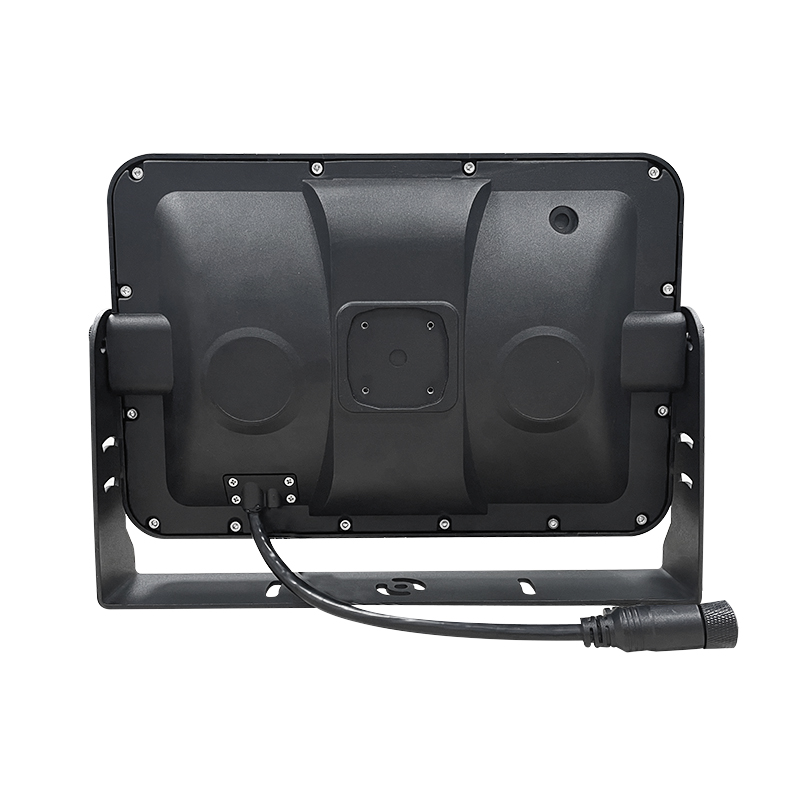

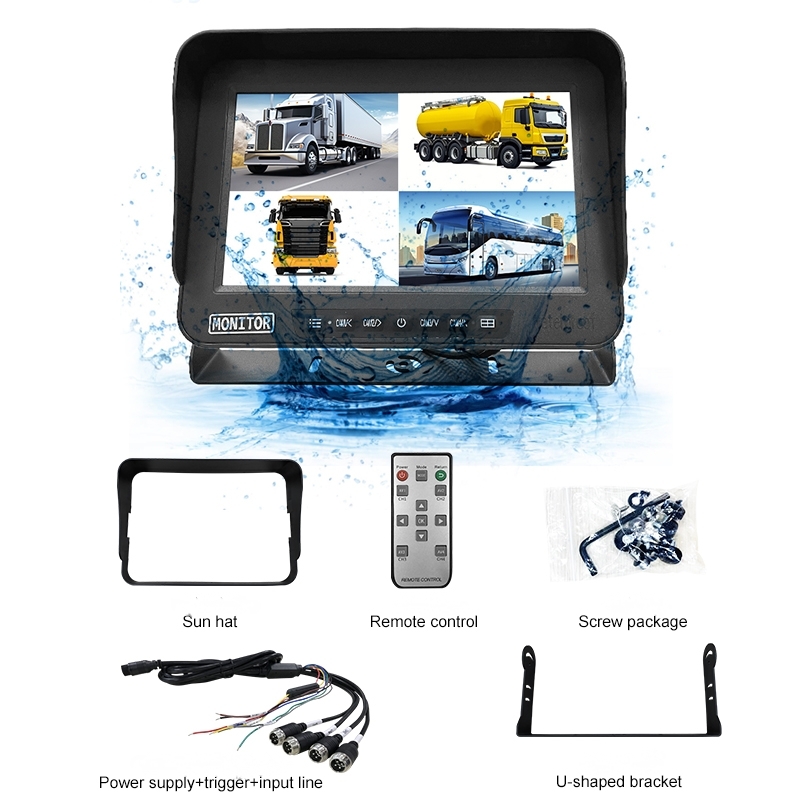

Available with extension cables of 3m, 5m, 10m, and 15m, the monitor can be easily installed in various locations. Its compact size (276mm×214mm×63mm) and lightweight design (2.92kg) make it easy to mount in vehicles, industrial equipment, or outdoor locations without compromising on functionality.

Scenes Solutions

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

Truck

School Bus

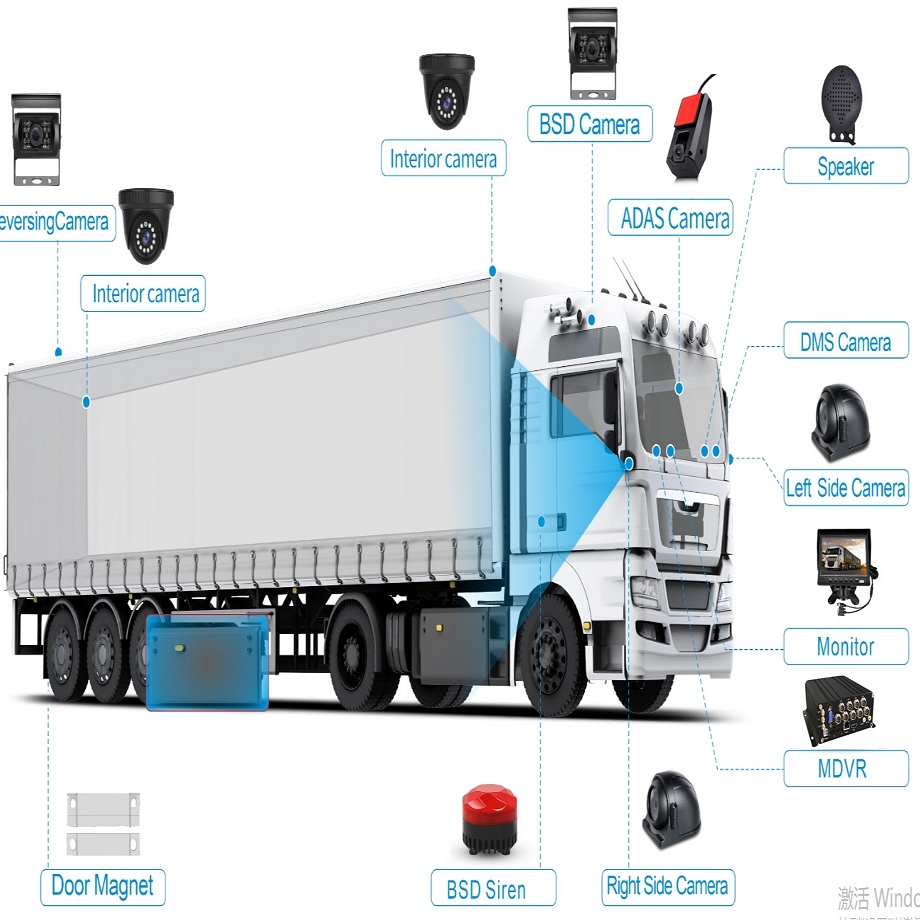

bus monitor

Taxi

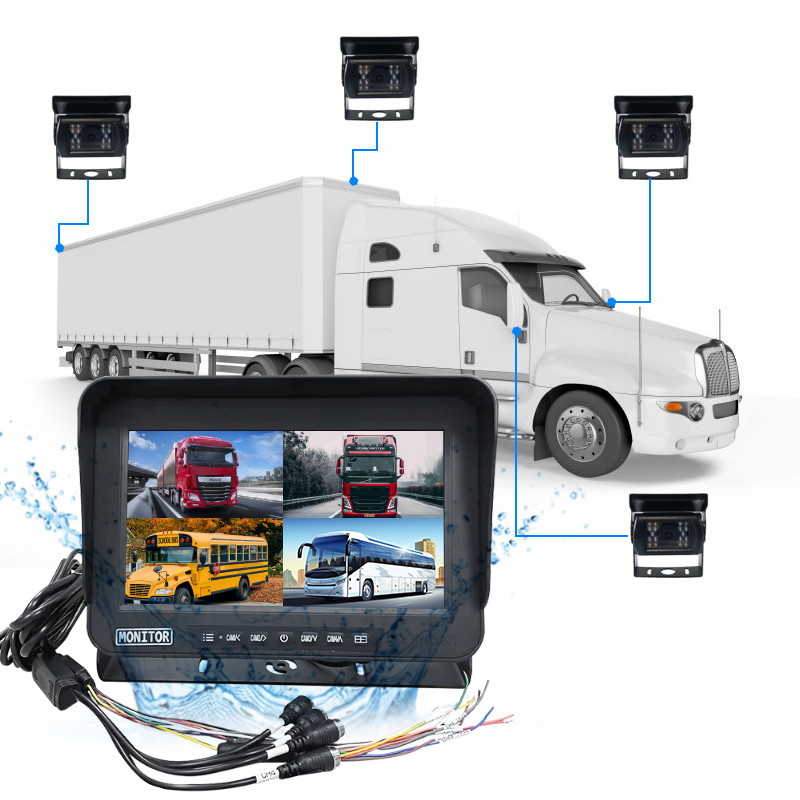

Freight Trucks

Forklift

Trucks

Emergency & Rescue

Specification

Item		Specification
System	Operate OS	Linux system Hisilicon solution
	System language	Simplified/Traditional Chinese, English, Russian, Korean (other languages can be customized)
	OSD	OSD graphical menu, support remote control, key operation to set system parameters
	Safety management	User password and administrator password are managed at two levels
Processor	CPU	ARM Cortex-A7 Quad-core@1.3GHz
Processor	RAM	4GB DDR4
Video and Recording System	Video input	4CH 1080P backward compatible and supports CVBS input
	Display resolution	1024x600
	Video compression format	H.264 compression format
	Preview features	Single channel, 2/4/6/8 screen splicing preview, support manual/alarm trigger full screen display function
	Video resolution	1080N, 720P, D1 option
	Video quality	Normal, Standard (default), HD, UHD 4 levels optional
	Video ways	Automatic recording when powered on
Audio	Audio input	Cable Non-support
	Audio input	Non-support
	Compression format	G.711U compression format, 8KB/s
Storage	storage medium	TF card supports 1TB (only built-in)
	Upgrade ways	TF card upgrade
	Storage ways	Proprietary raw disk Preallocated storage (industry advanced storage)
	USB	Non-support
Replay	Video search	You can search video data by recording time and recording method
Replay	Playback	Support 8 synchronous playback, pause, fast forward, fast rewind
Alarm input		6 groups of IO alarm, high level input, pulse input
Power supply and consumption	Power management	Adaptive wide power input, reverse short-circuit protection, power loss/overvoltage/overcurrent protection function; Support 0-24 hours delay shutdown function.
	Input voltage	DC:+12V ~ +36V（Greater than 36V automatic shutdown protection）
	Output voltage	+12V@2.5A
	Consumption	Normal operation < 8W (without camera)
Working environment	Temperature	-30 ℃ ~ +70 ℃
Working environment	Humidity	10% ~ 100%
Others	Size	276mm*214mm
Others	N.W	2.92KG
