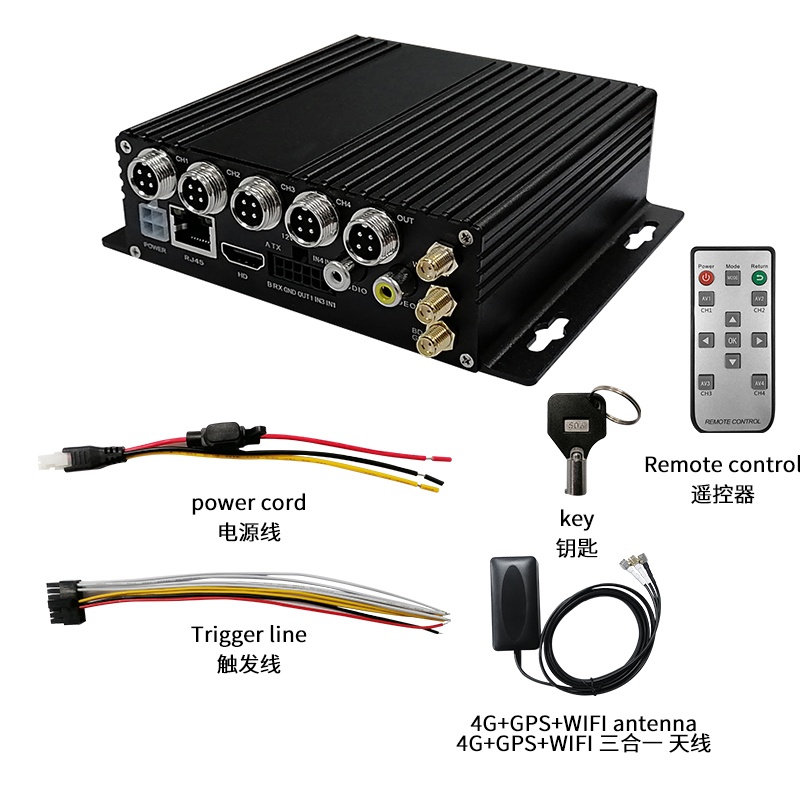

4CH TF Card Mobile DVR 4G Car GPS Tracker 1080P Night Vision Dual Lens Angle Video Recorder MDVR

4CH TF Card Mobile DVR 4G Car GPS Tracker 1080P Night Vision Dual Lens Angle Video Recorder MDVR

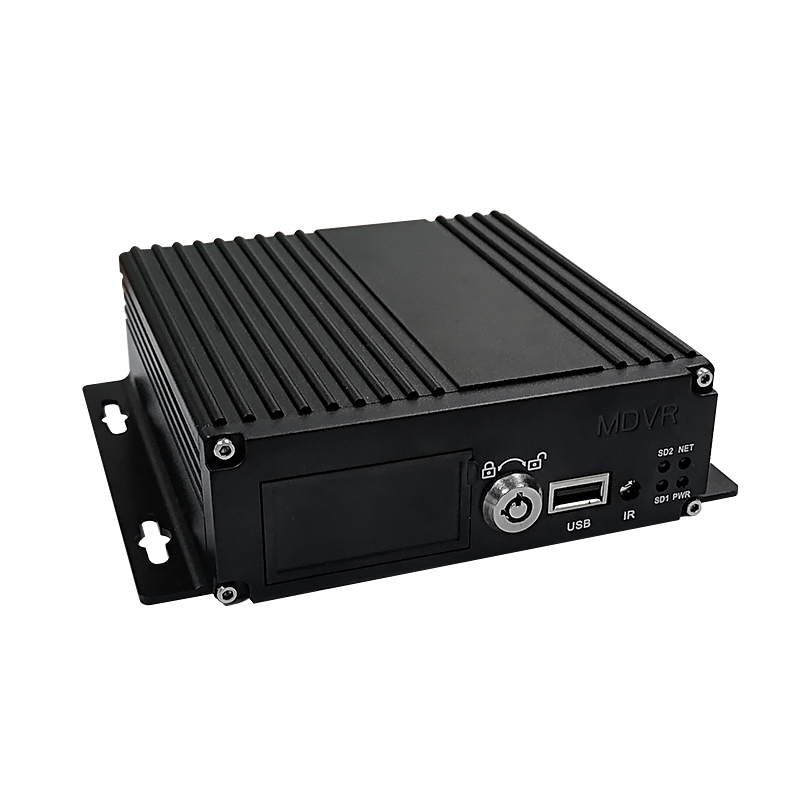

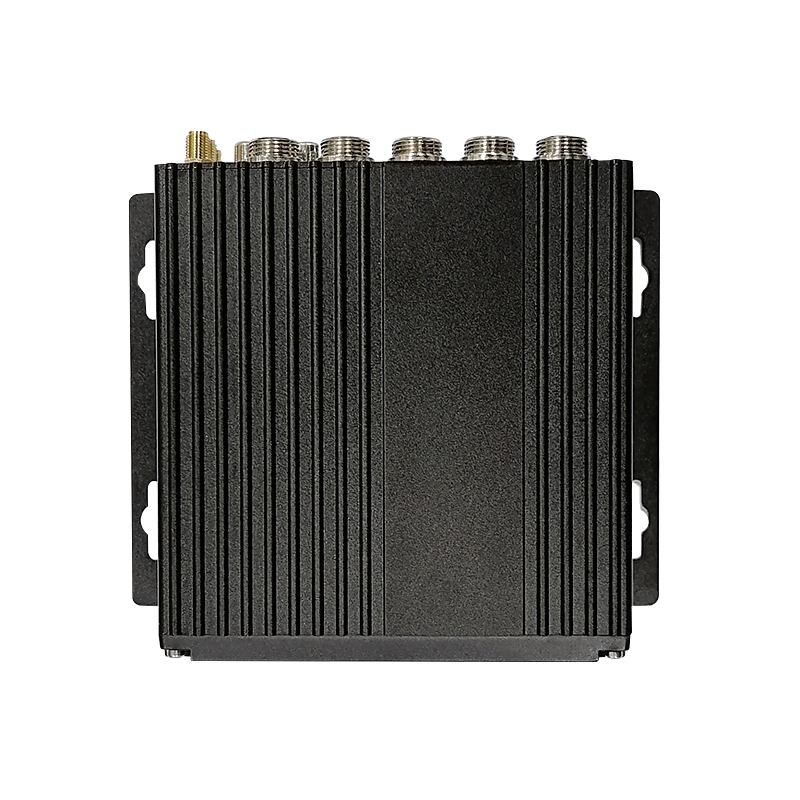

4CH TF Card MDVR is a compact, high-performance surveillance camera supporting H.264 compression and AHD/CVBS inputs. It features 4-channel video input, dual-channel CVBS+HDMI output, and up to 1TB dual TF card storage. With 4G/WiFi connectivity, it uploads video and GPS data to the CMSV6 platform. Low power consumption (under 5W) and a wide operating temperature range (-30℃ to 70℃) ensure reliability. Its small size (14.7×13.7×4.2cm) and light weight (0.7kg) make it suitable for diverse monitoring scenarios.

Quantity:
Availability:





Inquire Add to Basket

Model:
SMT9704-H

Core Features of 4CH AI MNVR

Key Features of 4CH IPC MNVR

1. High-Performance Chip

Equipped with the Hisilicon HI3520D V300 chip, featuring a 1 TOPS NPU for lightweight AI computing. Processing speed is increased by 30%, ensuring stable operation in complex scenarios.

2. High-Definition Encoding and Decoding

Supports H.264 encoding and decoding with up to 4K resolution. Storage space is reduced by 50%, while maintaining clear and smooth image quality.

3. Flexible Network Connectivity

Supports 4G/WiFi, enabling real-time upload of video and GPS data. Deployment time is shortened by 70%, enhancing the convenience of surveillance.

4. Low-Power, High-Capacity Storage

Supports up to 1TB dual TF card storage. Power consumption is under 5W, and it operates reliably in -30℃ to 70℃ environments, reducing power usage by 40%.

5. Multi-Functional Interfaces

Features 4-channel M12-4 input and 2-channel CVBS+HDMI output, supporting various signal inputs and outputs. Compatibility is increased by 60%.

Scenes Solutions

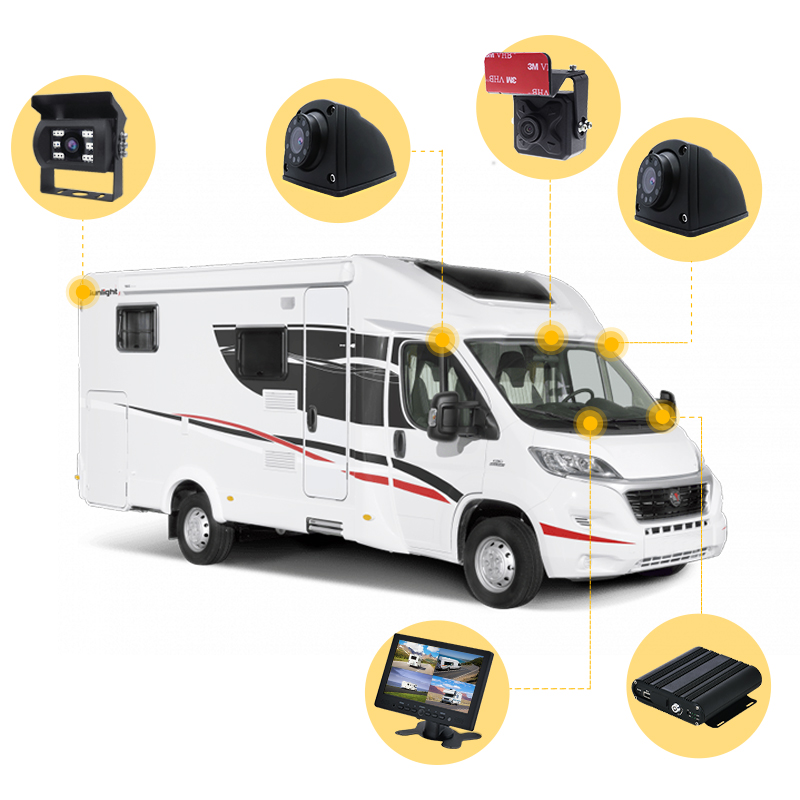

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

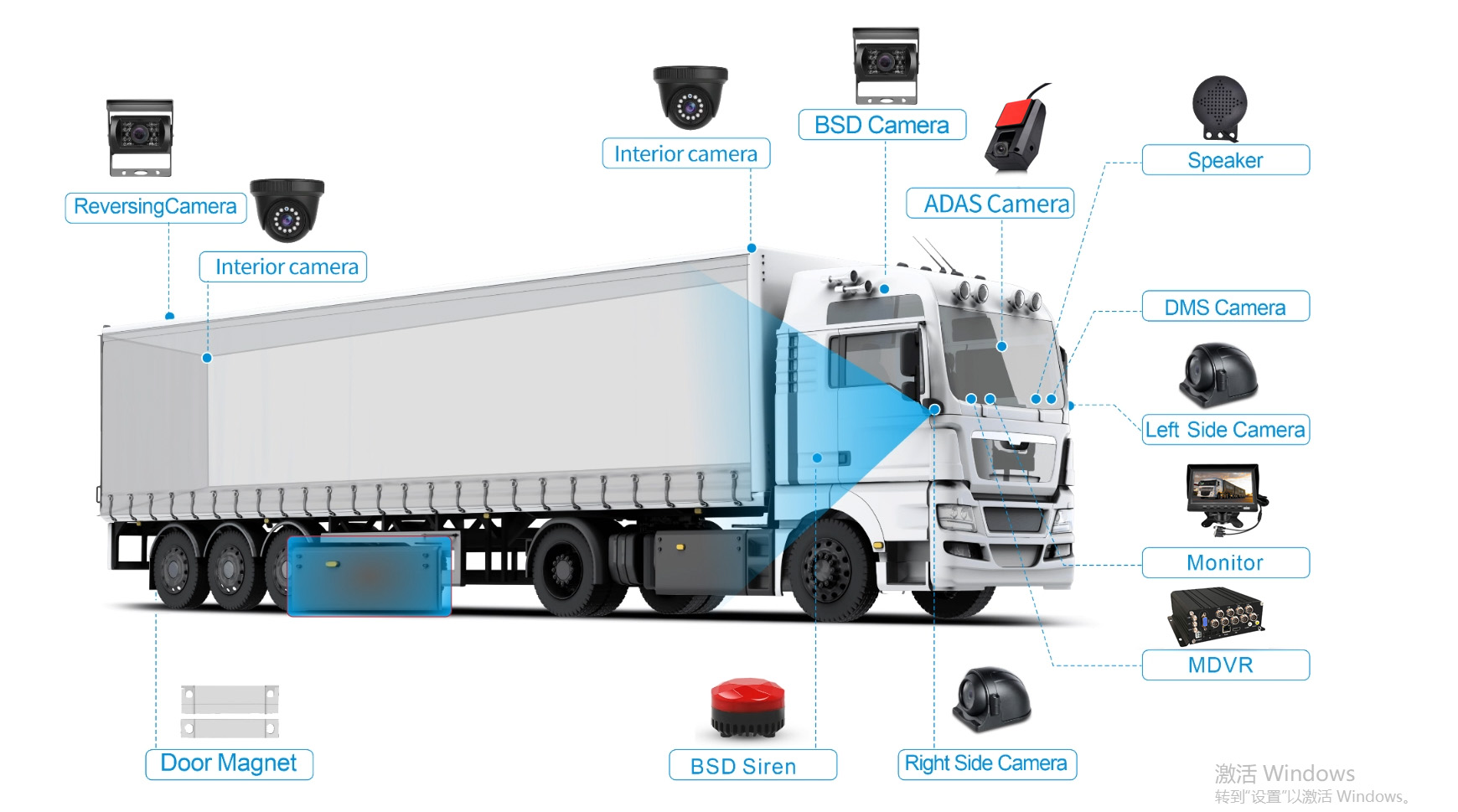

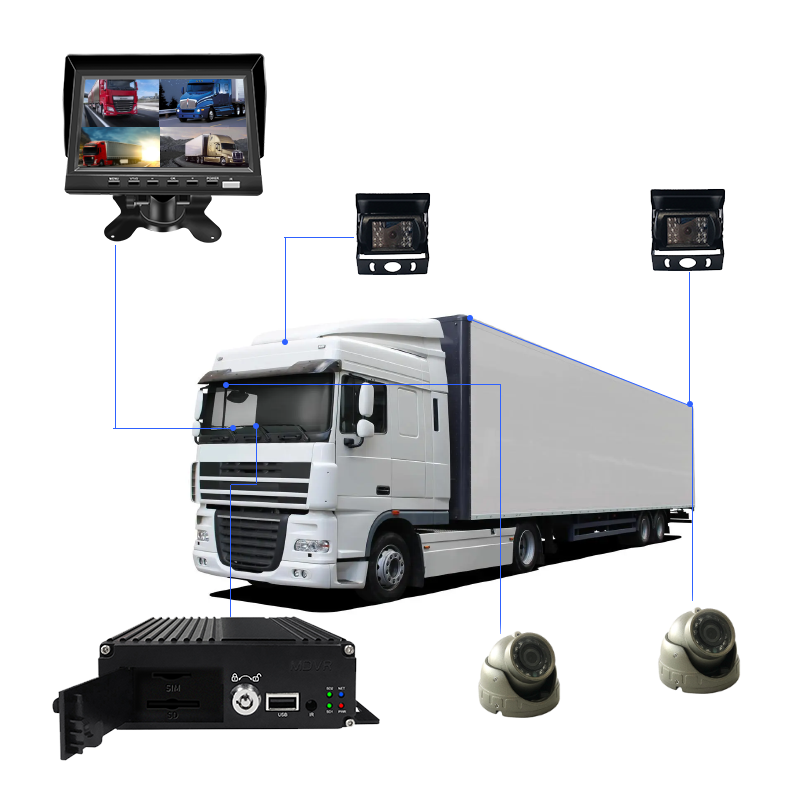

lorries

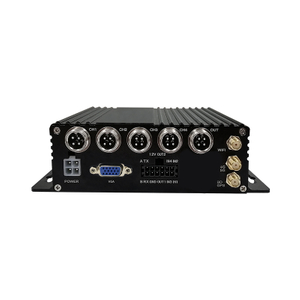

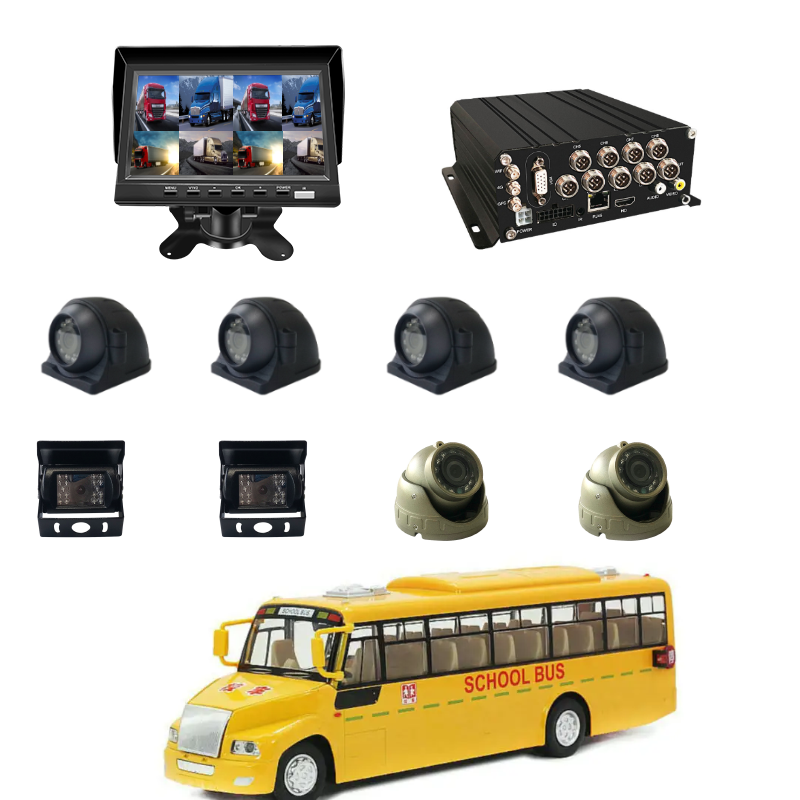

School Bus

Taxi

Rail Transit

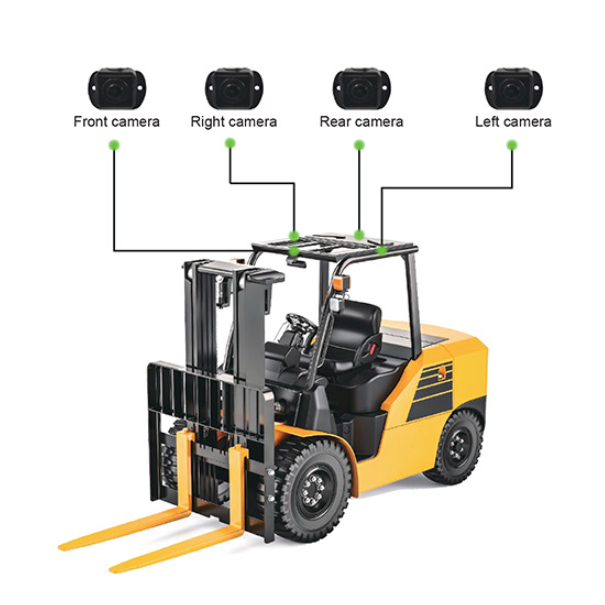

Forklift

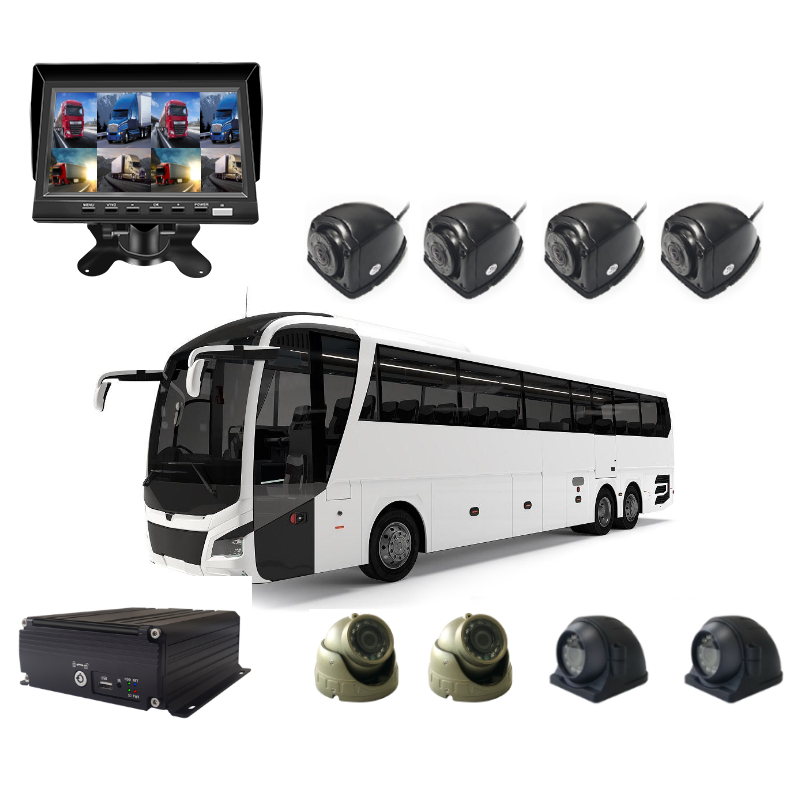

omni Bus

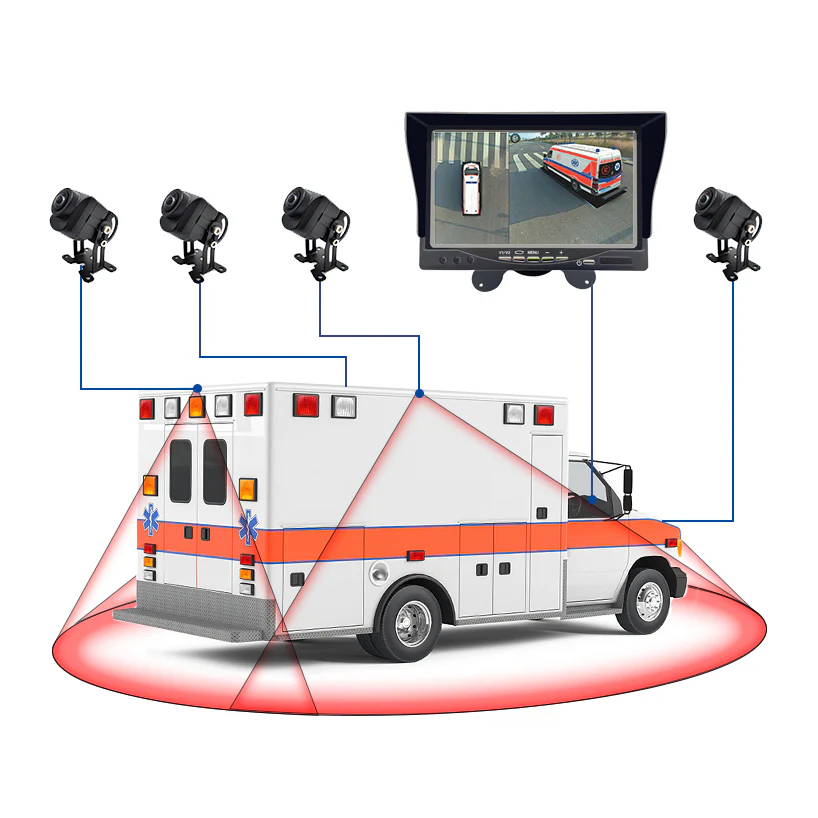

Emergency & Rescue

Specification

Item	Function	Description
	OS	Linux
	Menu Language	Chinese、English、other（can be customized）
	Video Compression	H.264
	Password Lock	The user password and administrator password

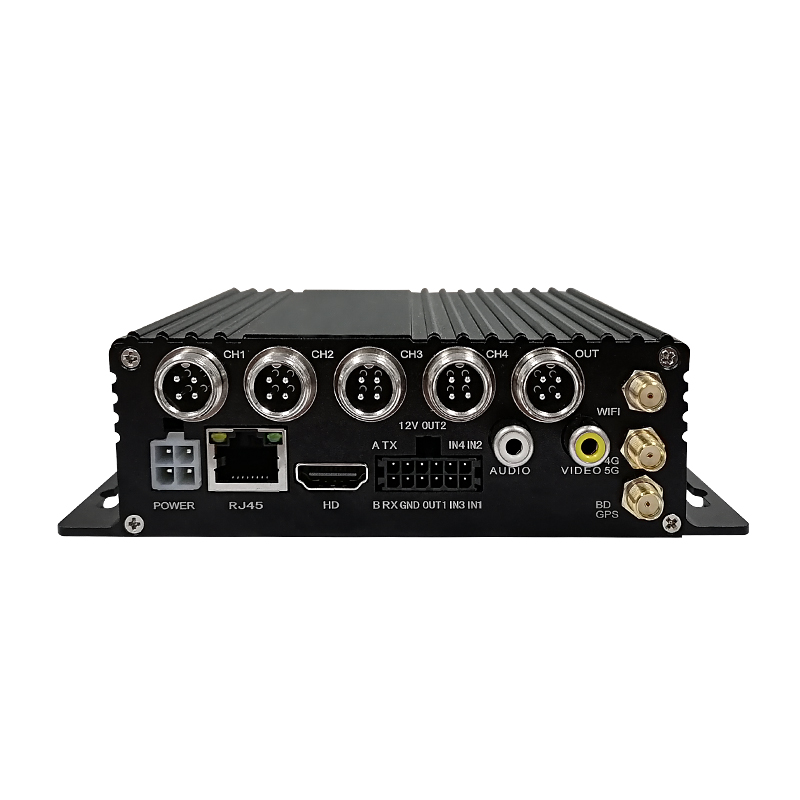

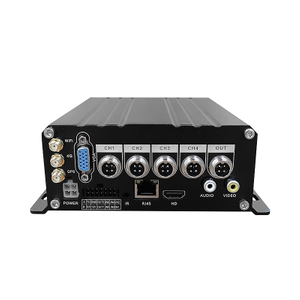

Video Function	Video Input	Supports 4-channel AHD 1080P, AHD 720P, TVI,AND D1 signal input aviation header portsL Compatible with different signal source mixed input display
	Video Output	Three integrated outputs: one HDMI output + two CVBS output
	Preview	Support 4 channel
	Video Format	PAL or NTSC
Audio	Audio Input	4CH
	Audio Output	not have
	Record Mode	Audio and video are recording simultaneously
Video Storage Function	Recording Channel	Four channel video recording
	Main stream Resolution	4ch:1080P\720P\D1\HD1\CIF	4ch:1080P\720P\D1\HD1\CIF
	Sub-stream Resolution	GIF\HD1\D1
	Recording Mode	Support boot recording (default), timer recording, alarm recording
	Image Quality	Normal, standard, HD, ULTRA HD 4 levels are optional
	OSD	stack date, time, GPS latitude and longitude, channel ID, license plate, etc.
	Storage	Support 1TB Micro TF card
Playback Subsystem	Video Search	Search according to recording time, recording type, video storage device, etc.
	Video Playback	Support local playback, 4 channel synchronous playback, full-screen playback preview of each channel
		Support local playback, 4 channel synchronous playback, full-screen playback preview of each channel
Alarm	Alarm Input	4 ch alarm input
	Alarm Output	2CH alarm output, output 12V high-level
Optional Functions	RS485 Protocol	Support 1*RS485 port
	RS232 Protocol	Support 1*RS232 port
	3G/4G	Built-in 3G or 4G communication module
	Wifi	Built-in WIFI module(2.4/5.8GHz is optional)
	GPS	Built-in GPS module; latitude, longitude, speed, etc. can be superimposed to video files, and can be uploaded wirelessly
	G-sensor	Built-in G-Sensor
Platform Software	PC software and web	Vehicle information analysis, video real-time preview, voice intercom, GPS upload, alarm upload, central command delivery, parameter configuration, remote video playback and other device management
	Mobile phone software	Video live preview, voice intercom, GPS positioning, message notification, etc.
Software Upgrade	USB port	1 interface, used for software upgrade or video file copy or video storage or mouse operation
	Sever	Support upgrade by memory card or remote upgrade of client server

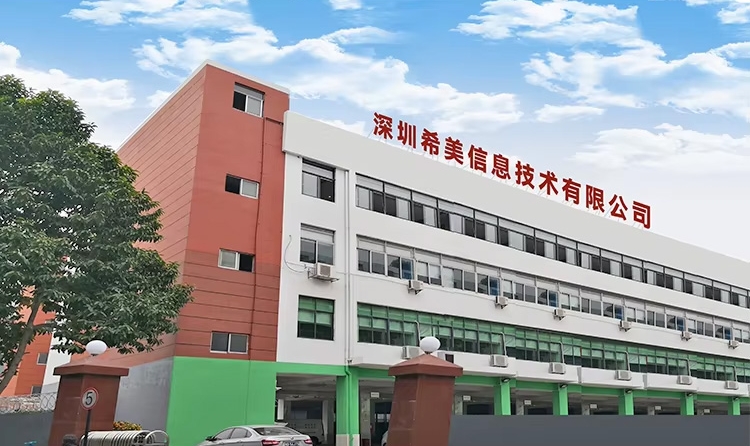

About Seemetech
