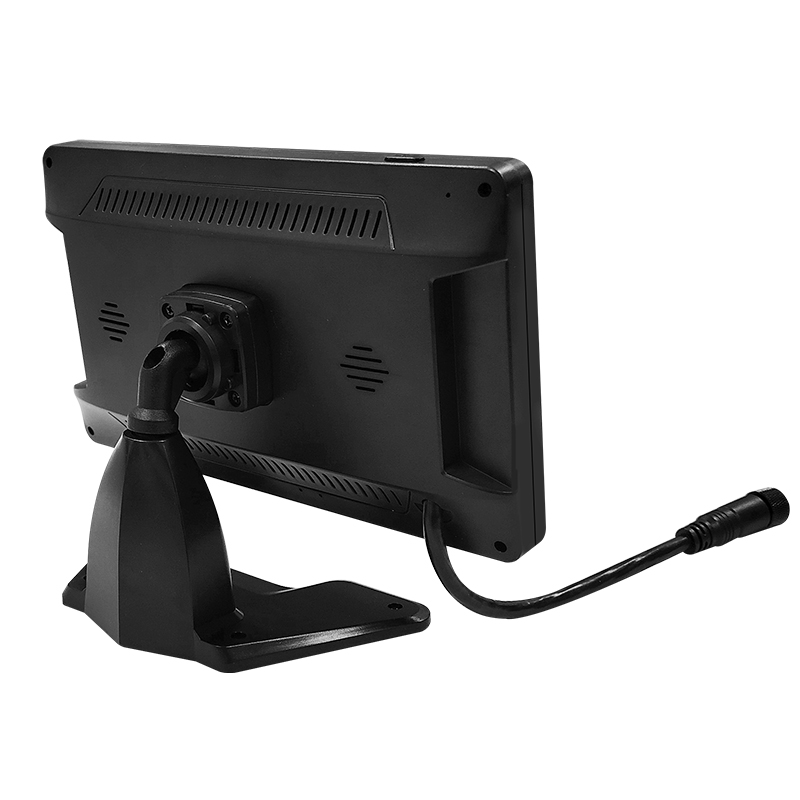

9inch Touch Screen 4ch AHD MDVR Monitor Camera System with 4 Split Display for Agricultural Machinery Blind Area Monitoring Screen DVR All-in-one

9inch Touch Screen 4ch AHD MDVR Monitor Camera System with 4 Split Display for Agricultural Machinery Blind Area Monitoring Screen DVR All-in-one

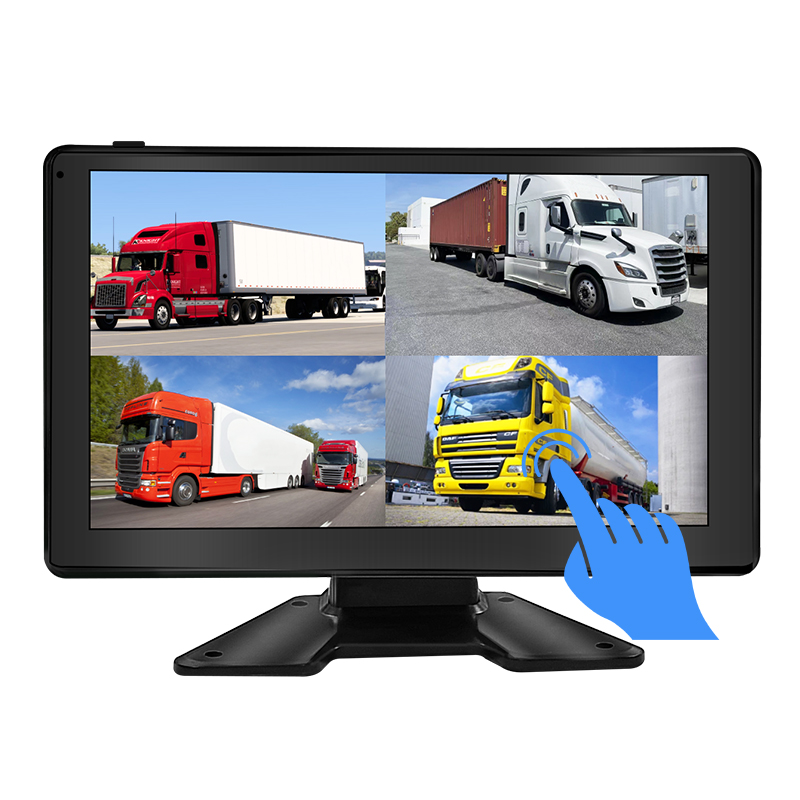

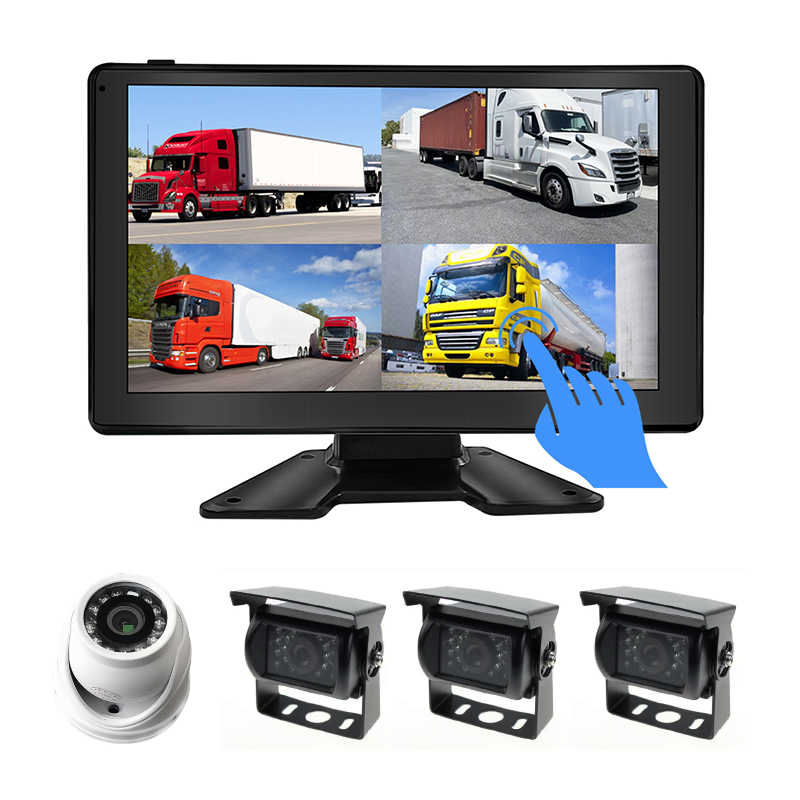

It's a 9 inch touch screen 4ch SD Card AHD MDVR Monitor all-in-one machine monitoring system,via CMSV6 platform real time remote viewing

Quantity:
Availability:





Inquire Add to Basket

Model:
SMT848-9inch

Core Features of 9inch Touch Scree AHD MDVR Monitor

1. Support mixed input of multiple video formats including AHD 1080P/ AHD 720P/ 960H/ CVBS

2. Support mixed input of different formats of AHD/ CVBS video signals PAL/NTSC (adaptive)

3. The camera screen of each input channel needs to set the vision, vision, resolution, chroma and sharpness independently

4. The camera screen of each input channel needs to set the left and right mirror function and the up and down jump function independently

5. The camera screen of each input channel supports accurate picture to avoid redundant images and effectively correct the distorted image

6. The camera screen of each input channel has independent settings for driving and reversing auxiliary lines

7. Independent four-way display function, supports automatic switching of display screen when turning and reversing

8.Supports time-lapse recording when parking and engine shutdown (24-hour parking monitoring function)

9.Supports recording of up to 1TB SD memory card, ultra-long panoramic image memory, convenient for users to check at any time

10.Supports online video playback, which can be paused, fast forwarded, rewinded, etc.; or backed up to a computer for playback

11.Supports opening or closing the video file OSD overlay character function (time, date, border, channel, license plate, driver's name, etc.)

12.Supports locking protection for video files, important video files can be set to lock protection, and locked files will not be overwritten or deleted

13. Users of this system can upgrade the latest program through the video card

14.Supports AI algorithm function expansion: ADAS front vehicle collision warning/BSD blind spot pedestrian warning/DMS fatigue driving warning

15.Supports 4G module, GPS module, wifi module and other function expansions

16.Supports CMSV6 platform protocol, JT808-2013/JT1076-2016 protocol

Scenes Solutions

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

Truck

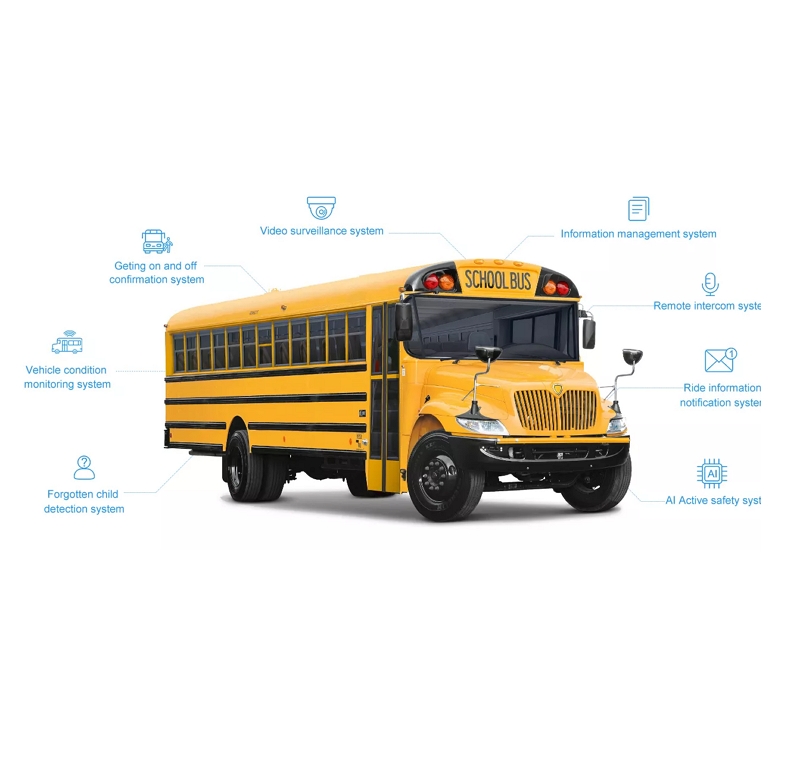

School Bus

Taxi

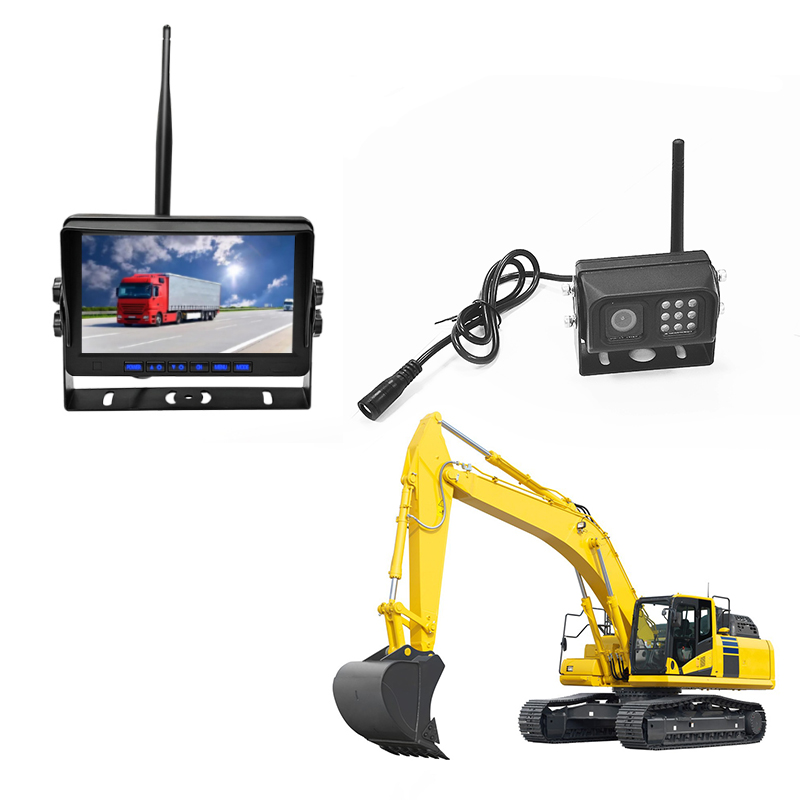

Excavator

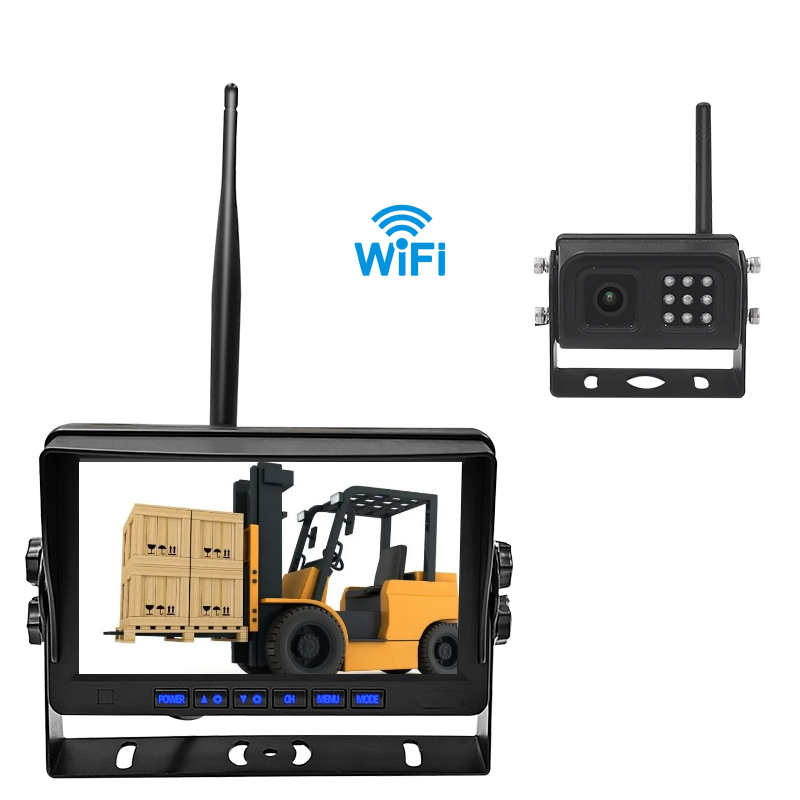

Forklift

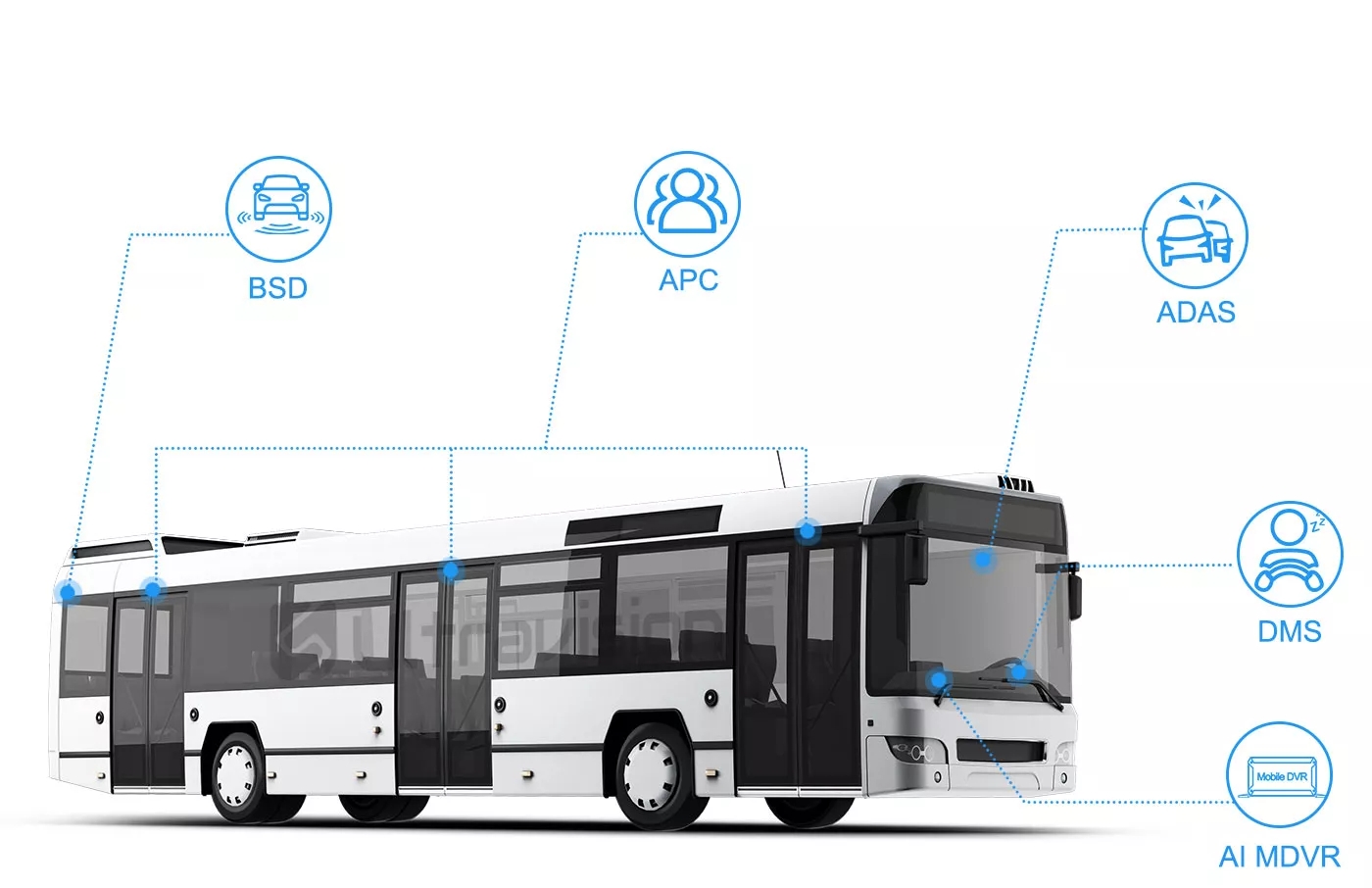

Bus

Emergency & Rescue

Specification

System	OS	Hisilicon solution Linux system
	Language	Simplified/Traditional Chinese, English, Russian, Korean (other languages can be customized)

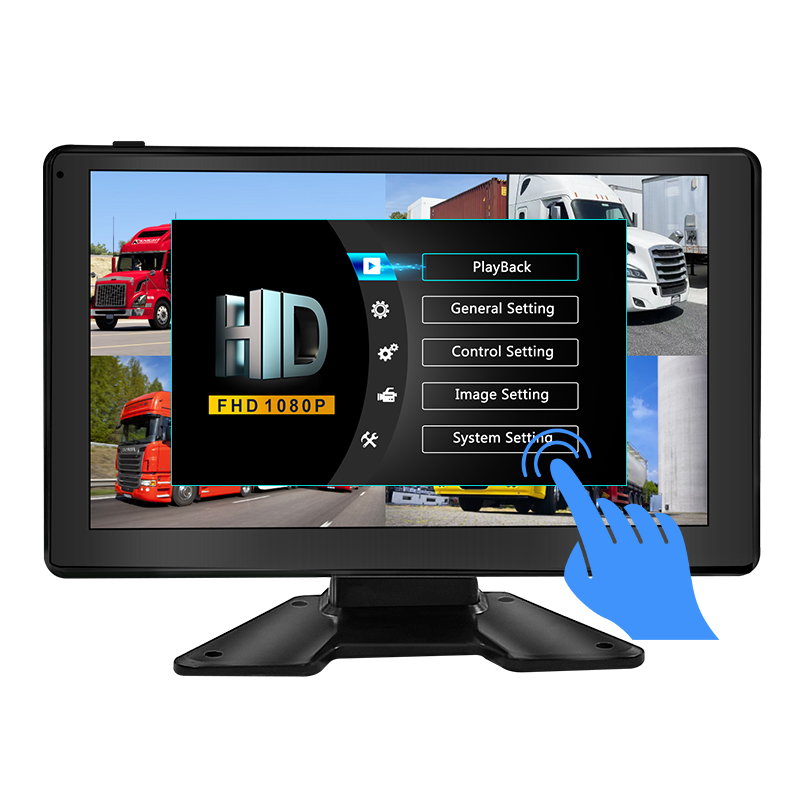

	Operation interface	OSD graphical menu, supports remote control and mouse operation to set system parameters
	Safety management	Two-level management of user password and administrator password
Processor	CPU	ARM Cortex-A7 quad-core @1.2GHz
Processor	Memory	8GB DDR4
Video and recording systems	Video Input	4-channel 1080P backward compatible, support CVBS signal mixed input
	Resolution	1024*600
	Video compression	H.264
	Preview function	Single channel, 2/3/4 screen splicing preview, support manual/alarm trigger full screen display function
	Video resolution	1080P, 720P, D1 optional
	Video quality	Normal, Standard (default), HD, UHD 4 levels optional
Audio	input/output	not support
Audio	Compression format	G.711u
AI algorithm (optional)	ADAS	Built-in ADAS algorithm expansion
	DMS	Built-in DMS algorithm expansion
	BSD	Built-in BSD algorithm extension
Network function (optional)	mobile network	Built-in 4G module
	Wifi network	Built-in wifi module, 2.5GHz, supports 5GHz as an option
	position	Built-in positioning module, supports GPS/BDS positioning module
Alarm input	IO trigger	3 groups of I/O triggers, support 9V-24V power supply to trigger full screen display
memory card	SD Card	Supports up to 1TB memory card, loop overwrite recording
	Upgrade method	Support SD video card upgrade
	Storage method	Proprietary raw disk storage method: real-time storage, no frame loss, no missed seconds
	USB	Upgrade/backup/recording/mouse operation
Video playback	Device playback	Supports operations such as direct playback on devices and backup and export of video files
Video playback	Computer playback	Our company provides dedicated player for playback
Power supply and power consumption	Power management	Adaptive wide power input, with low voltage, over voltage, reverse short circuit and other protection functions
	input voltage	DC24V (supports 12V ~ 36V input)
	Output voltage	+12V/2.5A
	Power consumption	Normal working state ≤8W (excluding camera)
working environment	temperature	-30℃ to +70℃
working environment	humidity	10% to 80%
Other	Size	230mm140mm35mm
Other	N.W	0.9kg
