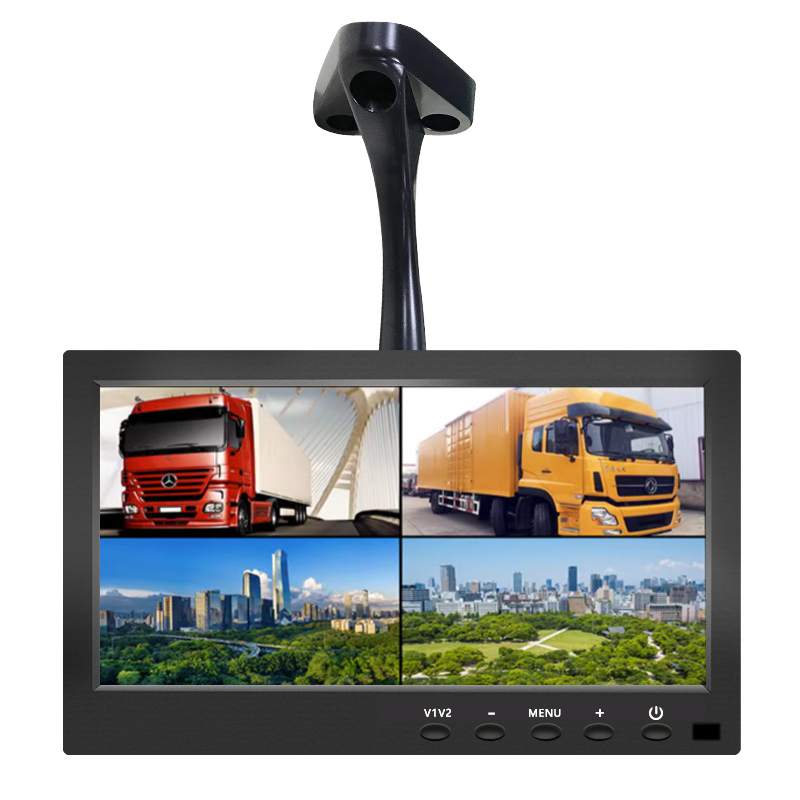

10.1-Inch 4CH Split Vehicle Monitor 4G WIFI GPS AI Function 1080p Resolution Reverse Night Vision 1 Year Warranty

10.1-Inch 4CH Split Vehicle Monitor 4G WIFI GPS AI Function 1080p Resolution Reverse Night Vision 1 Year Warranty

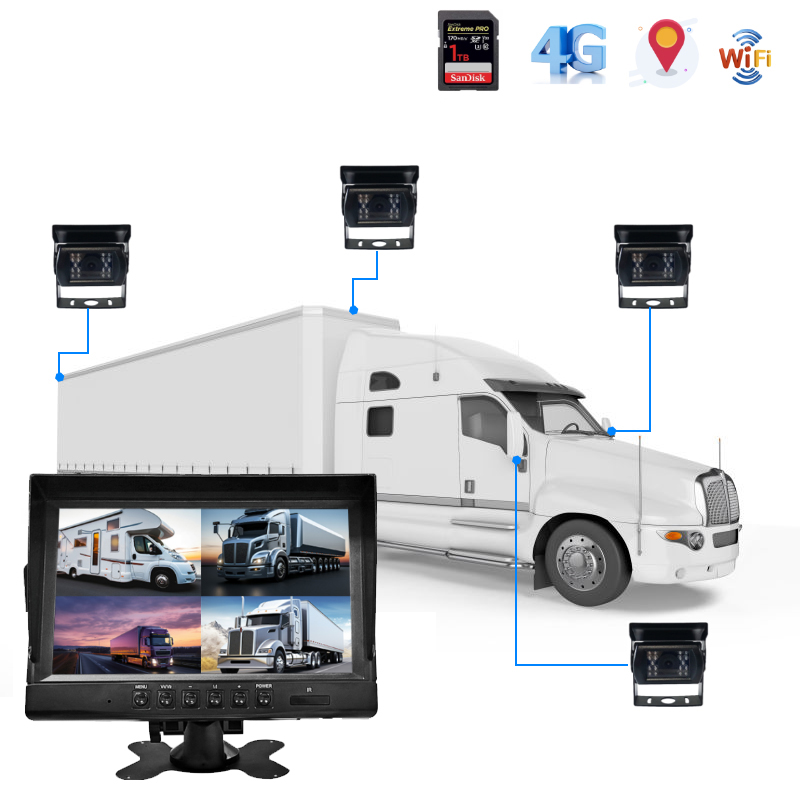

This 10.1" 4CH DVR is a versatile surveillance device. It features a HI3521D chip and supports H.264/H.265 compression. It accepts 4-channel AHD, 960H, and CVBS inputs, with output resolutions up to 1920×1080. Equipped with 1TB SD card storage and cycle coverage, it offers 4CH synchronous playback. The device also includes optional built-in 4G, GPS, and WIFI for connectivity, and supports optional ADAS, DMS, and BSD functions. Suitable for vehicle and small-scale surveillance applications.

Quantity:
Availability:





Inquire Add to Basket

Model:
SMT848-10.1-SD MDVR Monitor

Core Features of APC Camera

1. Advanced Compression Technology

Our 10.1" 4CH DVR utilizes H.264/H.265 video compression, reducing storage needs by up to 50% compared to traditional formats while maintaining high-quality video. This ensures efficient use of the 1TB SD card storage, allowing for longer recording times without compromising on clarity.

2. Versatile Video Input Compatibility

The DVR supports a wide range of video inputs, including AHD 1080P/960P/720P, 960H, and D1 (CVBS). This flexibility means it can work seamlessly with various camera types, making it adaptable for different surveillance setups.

3. High-Definition Recording and Playback

With a maximum recording resolution of 1920×1080 and support for multiple output resolutions, the DVR delivers crisp, clear video. It also offers 4-channel synchronous playback, allowing users to review footage from all cameras simultaneously.

4. Smart Connectivity Options

Equipped with built-in 4G, GPS, and WIFI, the DVR provides real-time data transmission and location tracking. This feature is especially useful for mobile surveillance applications, such as fleet management and public transport monitoring.

5. Optional AI-Enhanced Functions

The DVR can be configured with ADAS (Advanced Driver Assistance Systems), DMS (Driver Monitoring Systems), and BSD (Blind Spot Detection) functions. These intelligent features enhance safety and efficiency in vehicle surveillance systems.

6.Robust and Reliable Performance

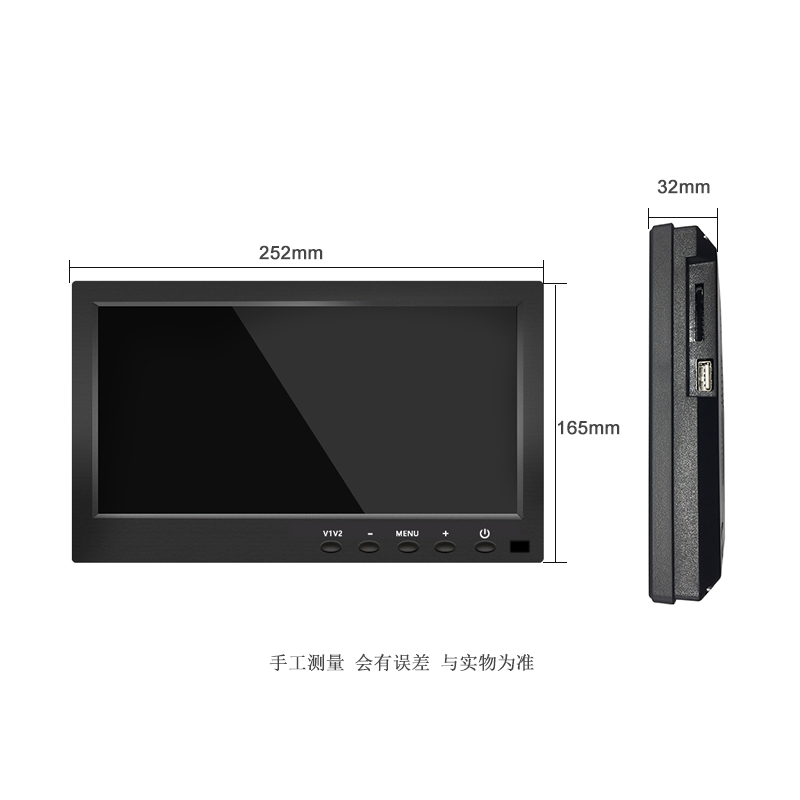

Designed to operate in extreme temperatures (-30℃ to +70℃), the DVR ensures continuous performance in diverse environments. Its compact size (253mm×165mm×52mm) and optional extension cables (3m, 5m, 10m, 15m) make it easy to install and integrate into any setting.

Scenes Solutions

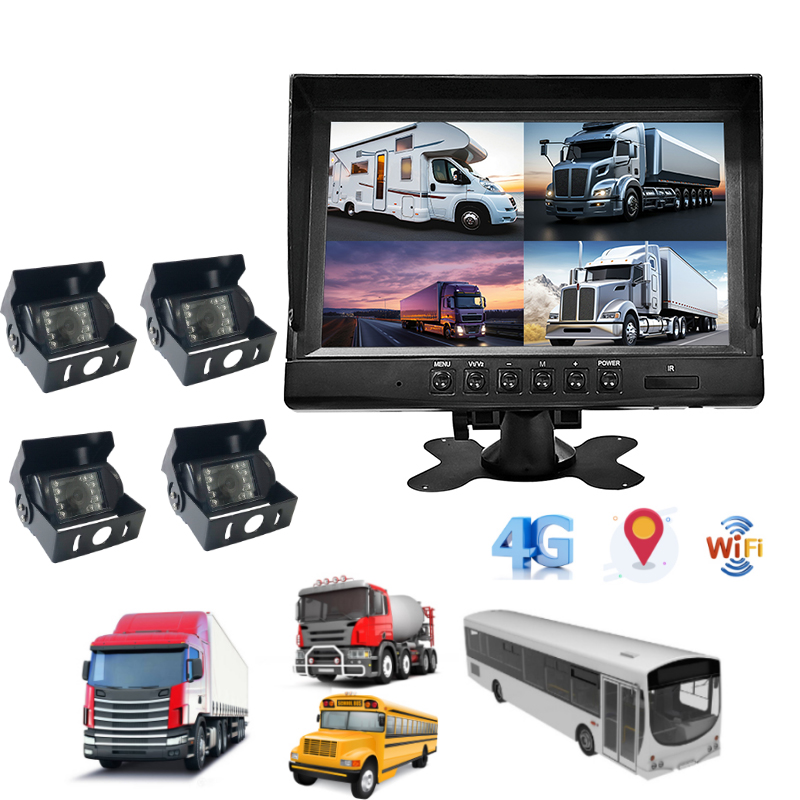

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

Truck

School Bus

bus monitor

Taxi

Large Truck

Forklift

Bus

Emergency & Rescue

Specification

Item		Parameter
Plan		Hisilicone 3521A
System language		Chinese, Traditional Chinese, English, Russian, Korean, and others (customizable)
Video compression format		H. 264
OSD		Character overlay function, supporting image overlay of time and date, channel characters, segmentation borders, vehicle information, etc
Video and recording system	Video input	4CH AHD1080P/960P/720P and 960H, D1 (CVBS) video inputs; 2CH HD+2CH SD, 3CH HD+1CH SD, 1CH HD+3CH SD video input; Compatible with mixed input of CVBS and AHD signals; Compatible with mixed input of PAL and NTSC formats;
	Preview function	6 multi screen mode splicing preview, supporting manual/voltage triggered full screen display function
	Display resolution	1024*600
	Video resolution	1920*1080
	Video image quality	Ultra clear, high-definition, standard, and regular 4-level video recording adjustable
	Video recording method	Automatic recording upon startup/timed recording
Audio	Audio input	Not support
	Audio output	Not support
	Compression format	G. 726 compression format
Optional function	3G/4G	Built in 3G or 4G communication module
	GPS	Built in GPS module; Latitude, longitude, speed, etc. can be overlaid onto the video file, and can also be uploaded wirelessly
	WIFI	Built in WIFI module
	Speed sensor	Not support
	RS232/485	Not support
Trigger input		3 sets of I/O triggers, supporting full screen display triggered by 12-24V power supply
Memory card	SD	Supports 1TB storage card, automatic full disk deletion, and cyclic overwrite
	Upgrade method	Support SD video card upgrade
	Storage method	Exclusive bare disk storage method: real-time saving, no leakage of seconds
	USB	No
Video replay	Video search	You can choose from the last three days, last week, last two weeks, last month, all, etc;
	Playback	4CH synchronous playback, supporting pause, fast forward, and rewind
	Playback	Supports fast forward or rewind at speeds of 2, 4, and 8 times
Power supply and consumption	Power management	Adaptive wide range power input, with protection functions such as low voltage, overvoltage, reverse short circuit, etc;
	Input voltage	DC:+12V~+36V (with camera operation requiring input voltage above 13V)
	Output voltage	+11.5V/3A
	Power waste	Normal working condition<5W (excluding display screen and camera)
Working environment	Temperature	-30℃ to +70℃
Working environment	Humidity	20% to 80%
Other	Size	229mm154mm64mm
Other	Net weight
Platform software	PC software and web	Vehicle information analysis, real-time video preview, voice intercom, GPS upload, alarm upload, central command issuance, parameter configuration, remote video playback and other equipment management
Platform software	Mobile software	Real time video preview, voice intercom, GPS positioning, message notification, etc
Software upgrade	USB	Not support
	SD	Can be used for software upgrades and video storage
	Server	Remote upgrade of client server
