10.1-Inch Touch Screen 4CH DVR Monitor Night View USB TF Card Split Quad Car Monitor 1-Year Warranty Car Video Reversing Aid

10.1-Inch Touch Screen 4CH DVR Monitor Night View USB TF Card Split Quad Car Monitor 1-Year Warranty Car Video Reversing Aid

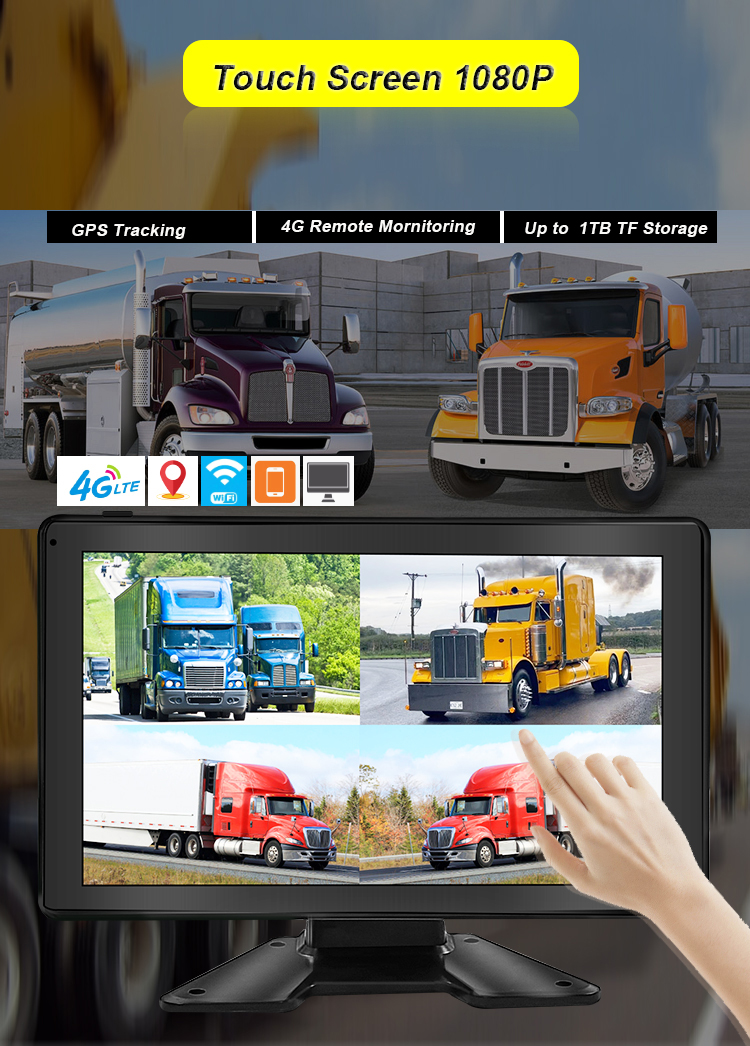

The 4CH Touch Screen MDVR Monitor is a sophisticated vehicle surveillance system designed for real-time monitoring, data recording, and AI-driven safety.

Quantity:
Availability:





Inquire Add to Basket

Model:
SMT848-1044

Core Features of 10.1-Inch Touch Screen 4CH DVR Monitor

1. Supports mixed input of multiple video formats of AHD 1080P/ AHD 720P/ 960H/ CVBS.

2. Supports mixed input of different formats of AHD/ CVBS video signals PAL/NTSC (adaptive).

3. The camera screen of each input channel needs to set the vision, vision, resolution, chroma and sharpness independently.

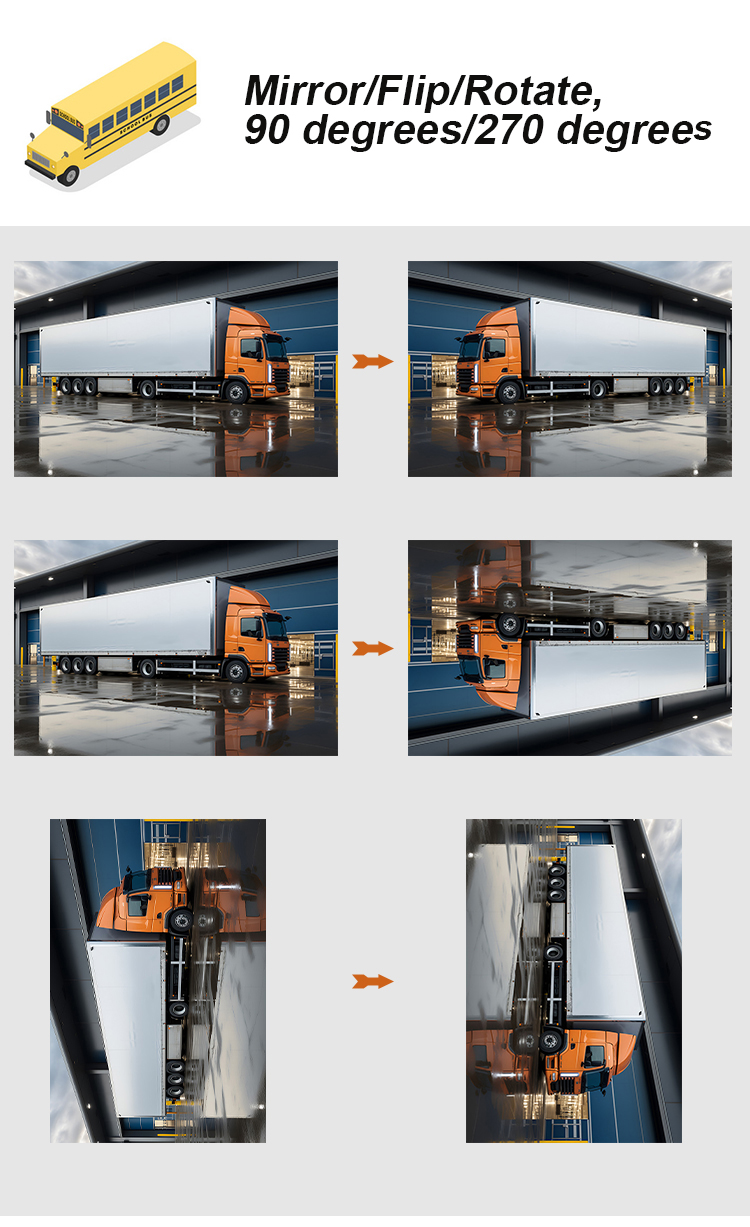

4. The camera screen of each input channel needs to set the left and right mirror function and the up and down jump function independently.

5. The camera screen of each input channel supports the picture, thus avoiding redundant images and effectively correcting the distorted image.

6. The camera screen of each input channel needs to set the driving and reversing auxiliary line independently.

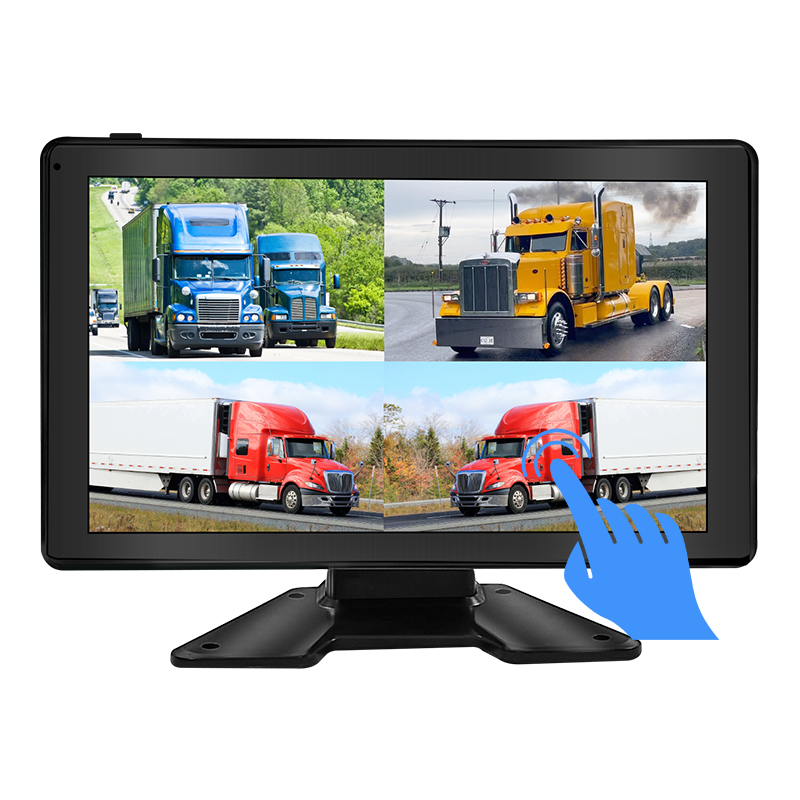

7. Independent four-way display function, support automatic switching of display screen when turning and reversing;

8. Support parking and engine shutdown time-lapse recording (24H parking monitoring function);

9. Supports recording up to 1TB SD memory card, ultra-long panoramic image memory, convenient for users to check at any time;

10. Supports online video playback, can pause, fast forward, fast rewind and other operations. Or backup to computer for playback

11. Supports opening or closing the video file OSD overlay character function (time, date, border, channel, license plate, driver's name and other information).

12. Supports locking protection of video files, important video files can be set to lock protection, and locked files will not be overwritten or deleted.

13. Users of this system can upgrade the latest program through the video card;

14. Supports AI algorithm function expansion: ADAS front vehicle collision warning/BSD blind spot pedestrian warning/DMS fatigue driving warning

15. Supports 4G module, GPS module, wifi module and other function expansions

16. Supports CMSV6/7 platform protocol, JT808-2013/JT1

Touch Screen 4CH DVR Monitor 10.1Monitor WIFI Monitor

Scenes Solutions

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

lorries

School Bus

Taxi

Rail Transit

Forklift

omni Bus

Emergency & Rescue

Specification

System	OS	HiSilicon Solution Linux System
	System Language	Simplified/Traditional Chinese, English, Russian, Korean (other languages can be customized)

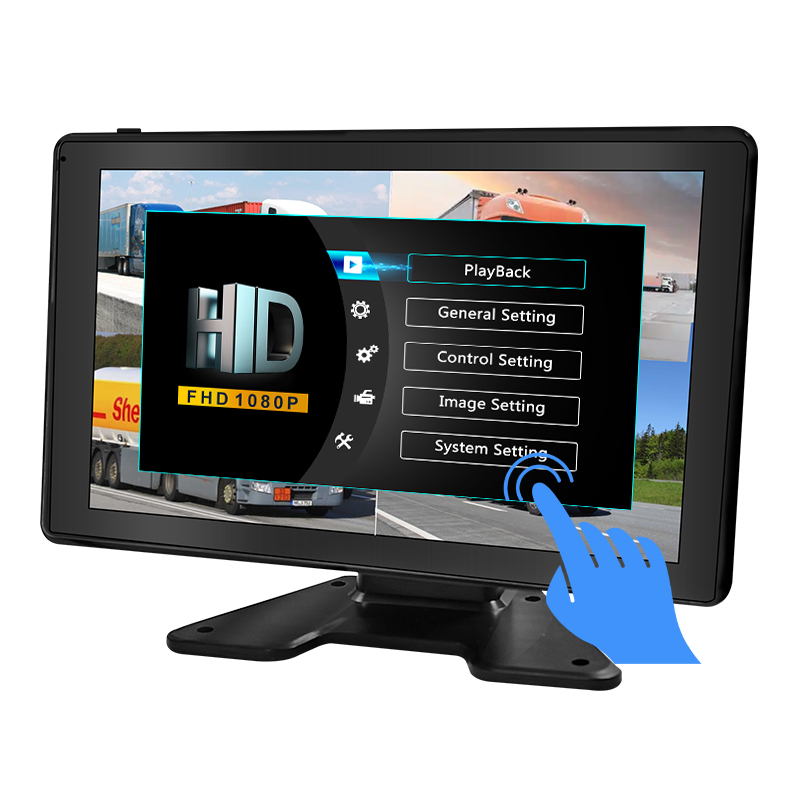

	Operation interface	OSD graphical menu, supports remote control and mouse operation to set system parameters
	Security Management	Two-level management of user password and administrator password
Processor	CPU	ARM Cortex-A7 quad-core @1.2GHz
Processor	Memory	8GB DDR4
Video and recording systems	Video input	4-channel 1080P backward compatible, support CVBS signal mixed input
	Resolution	1024*600
	Video compression format	H.264
	Preview function	Single channel, 2/3/4 screen splicing preview, support manual/alarm trigger full screen display function
	Video resolution	1080P, 720P, D1 optional
	Video quality	Normal, Standard (default), HD, UHD 4 levels optional
Audio	audio input	not support
	Audio output	not support
	Compression format	G.711u compression format
AI algorithm	ADAS	Built-in ADAS algorithm expansion
(Optional)	DMS	Built-in DMS algorithm expansion
(Optional)	BSD	Built-in BSD algorithm extension
Network function	mobile network	Built-in 4G module
(Optional)	Wifi	Built-in wifi module, 2.5GHz, supports 5GHz as an option
(Optional)	positioning	Built-in positioning module, supports GPS/BDS positioning module
Alarm input	IO trigger	3 groups of I/O triggers, support 9V-24V power supply to trigger full screen display
Memory card	SD Card	Supports up to 1TB memory card, loop overwrite recording
	Upgrade method	Support SD card upgrade
	Storage method	Proprietary raw disk storage method: real-time storage, no frame loss, no missed seconds
	USB	Upgrade/backup/recording/mouse operation
Video playback	Device playback	Supports direct playback of devices and video file backup and export operations
Video playback	Computer playback	Our company provides dedicated player for playback
Power supply and power consumption	Power management	Adaptive wide power input, with protection functions such as low voltage, over voltage, reverse connection and short circuit
	input voltage	DC24V (supports 12V ~ 36V input)
	Output voltage	+12V/2.5A
	Power consumption	Normal working state ≤8W (excluding camera)
working environment	Temperature	-30℃ to +70℃
working environment	Humidity	10% to 80%
	Meas	255mm160mm35mm
	N.W	0.9KG
