10.1-Inch 4CH Split Monitor 4G WIFI GPS ADAS DMS BSD AI 1080p Resolution Reverse Night Vision Camera 1-Year for Parking Car Monitor

10.1-Inch 4CH Split Monitor 4G WIFI GPS ADAS DMS BSD AI 1080p Resolution Reverse Night Vision Camera 1-Year for Parking Car Monitor

This 10.1-inch 4CH DVR split monitor is designed for versatile surveillance and fleet management applications. It features the HI3521D chip, supporting H.264/H.265 compression for efficient storage. It accepts 4-channel AHD and CVBS inputs with resolutions up to 1080P, offering clear 1920×1080 display. The monitor includes 1TB SD card storage with auto-delete and cycle coverage, and supports 4-channel synchronous playback. It also integrates 4G/GPS/WIFI for remote monitoring and optional AI functions like ADAS and DMS.

Quantity:
Availability:





Inquire Add to Basket

Model:
SMT848-10.1-SD U Bracket MDVR Monitor

Core Features of APC Camera

1.Efficient Video Compression & Storage

Utilizing H.264/H.265 compression, the monitor achieves up to 50% space savings compared to traditional methods. With support for 1TB SD card storage and automatic deletion of old files, it ensures continuous recording without manual intervention.

2.Multi-Format Input & High-Resolution Display

The monitor supports 4-channel AHD (1080P/960P/720P) and CVBS (D1, 960H) inputs, compatible with various camera types. Its 10.1-inch screen offers a 1920×1080 resolution, providing clear and detailed images for effective surveillance.

3.Advanced Remote Monitoring

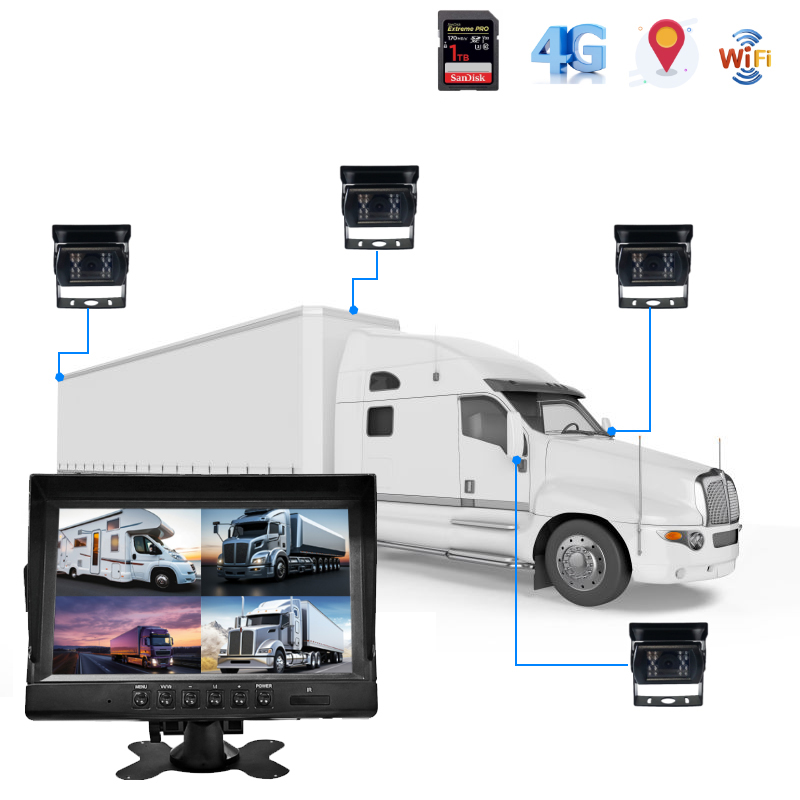

Equipped with built-in 4G/GPS/WIFI modules, the monitor enables real-time remote access to video feeds. Users can monitor and manage their systems from anywhere, enhancing operational efficiency and security.

4.Intelligent AI Functions (Optional)

The monitor supports AI features like ADAS (Advanced Driver Assistance Systems), DMS (Driver Monitoring Systems), and BSD (Blind Spot Detection). These features enhance safety by monitoring vehicle surroundings and driver status in real-time.

5.Reliable Performance

Designed for rugged environments, the monitor operates reliably between -30℃ and +70℃. Its wide input voltage range (DC 9-36V) ensures stable performance in diverse power conditions.

6.Flexible Installation & Expansion

Available with extension cables up to 15 meters, the monitor offers versatile installation options. An optional built-in speaker supports audio output, enhancing the overall monitoring experience.

Scenes Solutions

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

Truck

School Bus

bus monitor

Taxi

Trucks

Forklift

Bus

Emergency & Rescue

Specification

Item		Parameter
Plan		Hisilicone 3520(V300)
System language		Chinese, Traditional Chinese, English, and others (customizable)
Video compression format		H. 264
OSD		Character overlay function, supporting image overlay of time and date, channel characters, segmentation borders, vehicle information, etc
Video and recording system	Video input	4CH AHD1080P/960P/720P and 960H, D1 (CVBS) video inputs; 2CH HD+2CH SD, 3CH HD+1CH SD, 1CH HD+3CH SD video input; Compatible with mixed input of CVBS and AHD signals; Compatible with mixed input of PAL and NTSC formats;
	Preview function	12 multi screen mode splicing preview, supporting manual/voltage triggered full screen display function
	Display resolution	19201080, 1280720, 1024768, 800600
	Video resolution	1920*1080
	Video image quality	Ultra clear, high-definition, standard, and regular 4-level video recording adjustable
	Video recording method	Automatic recording upon startup
Audio	Audio input	Support 1CH audio input (CH1) (Optional)
	Audio output	Not support
	Compression format	G. 726 compression format
Trigger input		3 sets of I/O triggers, supporting full screen display triggered by 12-24V power supply
Memory card	SD card	Supports 2-512G storage card, automatic full disk deletion, and cyclic overwrite
	Upgrade method	Support SD video card upgrade
	Storage method	Exclusive bare disk storage method: real-time saving, no leakage of seconds
	USB	Recording/upgrade/backup
Video replay	Video search	You can choose from the last three days, last week, last two weeks, last month, all, etc;
	Playback	4CH synchronous playback, supporting pause, fast forward, and rewind
	Playback	Supports fast forward or rewind at speeds of 2, 4, and 8 times
Power supply and consumption	Power management	Adaptive wide range power input, with protection functions such as low voltage, overvoltage, reverse short circuit, etc;
	Input voltage	DC:+12V~+36V (with camera operation requiring input voltage above 13V)
	Output voltage	+11.5V/3A
	Power waste	Normal working condition<5W (excluding display screen and camera)
Working environment	Temperature	-30℃ to +70℃
Working environment	Humidity	20% to 80%
Other	Size	253mm165mm52mm
Other	Net weight

About Seemetech

Founded in 2017, Seemetech is a dynamic technology company dedicated to delivering innovative solutions in the field of intelligent transportation and vehicle security. With a strong focus on R&D, we specialize in designing and manufacturing cutting-edge products such as MDVR (Mobile Digital Video Recorders), MNVR (Mobile Network Video Recorders), and Car Monitors, empowering businesses worldwide to enhance safety, efficiency, and operational control.

Our Core Products

MDVR & MNVR: Advanced in-vehicle surveillance systems tailored for real time monitoring, GPS tracking and data analytics. Ideal for fleet management，public transportation，and logistics.
Car Monitors：High performance displays designed for seamless integration with vehicle systems，ensuring clear visibility and user friendly interfaces for drivers and operators.

Technology & Innovation

At Seemetech, we pride ourselves on our 20-member R&D team—a passionate group of engineers and industry experts committed to pushing technological boundaries. By leveraging AI, IoT, and cloud-based platforms, we continuously refine our products to meet evolving market demands.
Our Mission

We strive to redefine vehicle safety and connectivity through intelligent solutions that bridge the gap between technology and practicality. By partnering with global clients, we aim to drive progress in smart transportation ecosystems and deliver unparalleled value to industries worldwide.
Our Vision

As we expand our global footprint, Seemetech remains steadfast in its commitment to innovation, customer-centricity, and sustainable growth. Join us in shaping the future of mobility.

FAQs

Do you support OEM and ODM services?

Yes,we support OEM and ODM services. We have a professional R&D team to support various customization.
Are you a manufacturer factory or a trading company?

We are the original manufacturer located in Shenzhen,China, which has rich experience in car monitors ,car cameras and car players , warmly welcome to visit our factory.
How do you guarantee product quality?

All goods are 100% inspected before shipping, we do at least 5 tests, including In-coming raw material test, sample test then bulk produce, functional test, burn-in test, appearance inspection.
How to place an order?

1.Choose the product you like, confirm the model and quantity and place the order on Alibaba directly.
2. Tell us your special request and then we will recommend the right items accordingly ,and match them together for you then.
What's the MOQ for products?

MOQ no limited, sample orders also welcomed.
What's the payment terms?

T/T, PayPal, Ali pay,etc.
For sample orders, 100% in advance, for bulk orders 30% or 50% deposit, the balance before shipment.
What are the shipping method?

By express(DHL,Fedex, UPS), by sea, by air, or other available shipping methods appointed by customers, provide tracking number and estimated time of arrival.
What's the lead time?

1. Sample order 1 to 5 PCS: 3-7 working days.
2. General order 100 to200PCS: 7-15 working days.
3. Bulk order 500 to 1000PCS: 15-30 working days.(All depends on the quantity)
What after-sales support is available?

All products have one year warranty and we have professional technical support. If you have any problems with the product, we will provide solutions at any time.
