8 Channels 1080 4g Vga Monitor Hdd MDVR 8ch Cameras Buses Mobile MDVR

8 Channels 1080 4g Vga Monitor Hdd MDVR 8ch Cameras Buses Mobile MDVR

HDD & SD Card 1080P 8CH Mobile DVR

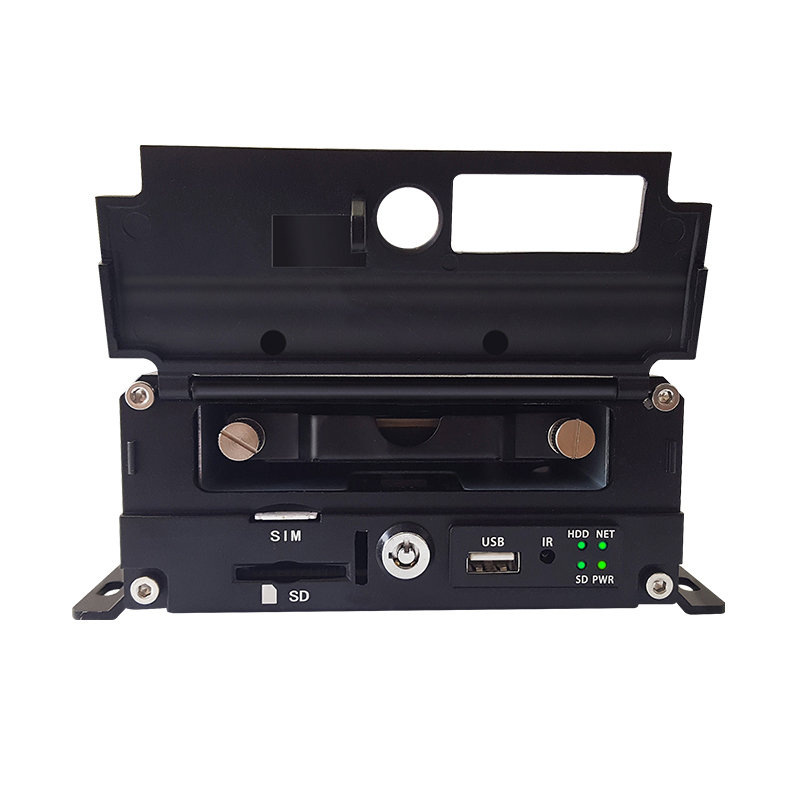

The SMT9808H is an 8-channel HD mobile digital video recorder (MDVR) featuring double systems (double communication channels) and high stability.

Quantity:
Availability:





Inquire Add to Basket

Model:
SMT9808-H

Core Features of 4CH AI MNVR

Key Features of 8CH IPC MNVR

CHIP:Hisilicon HI3521A(V100)

Compression Format: H.264

Camera input Resolution: AHD1080P/720P/CVBS

Video Input:8CH M12-4 interface (IPC cameras input can be customised)

Video Output: 3 CH (CVBS+VGA+HDMI)

Playback: 4 CH separate Playback

Storage:Max 1TB SD card*1 & 4T 2.5inch HDD *1(Not include)

CMS Server:CMSV6 Platform

Consumption:Normal less than 5W

Power Input:12V-36V

Working Temp.:-30℃-70℃

Size: 16.7*17*6cm

Weight: 1.2kg

Network:GPS/4G/WIFI(optional)

Upload video and GPS track to CMS platform via 4G or WiFi Language:Chinese,English (Free customization

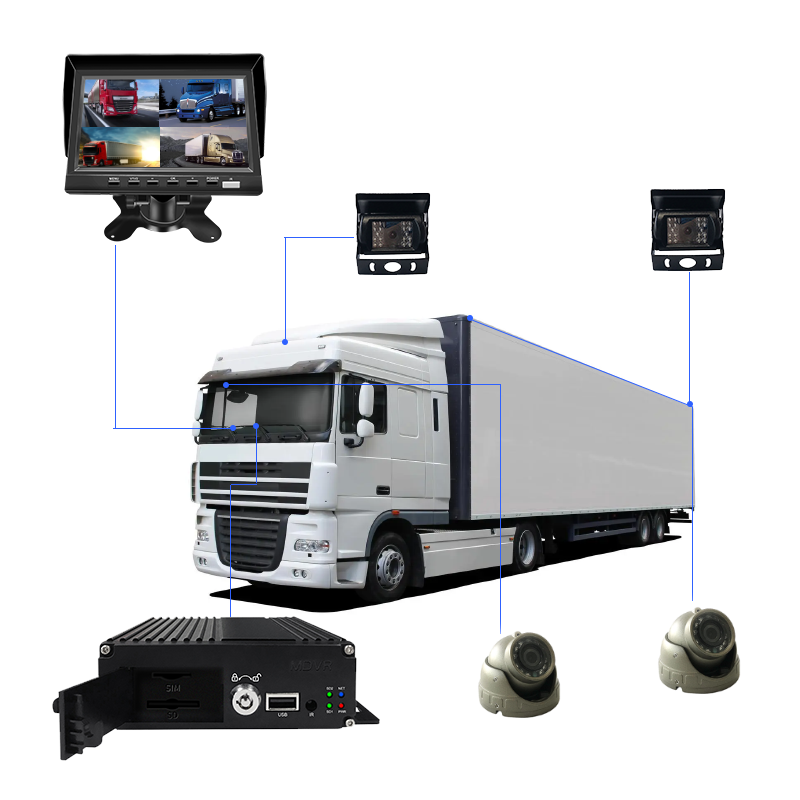

Adopting the high-performance processor and Linux operating system, it is a core product of new-generation wireless vehicle video surveillance solutions that uses H.264 video compression/decompression, GPS positioning and wireless data transmission technologies. The device is specially designed for mobile video surveillance for different types of vehicles, such as buses, long-distance coaches, taxis, logistics vehicles, armored cars, private cars, etc.

Scenes Solutions

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

Freigt Truck

School Bus

Taxi

Rail Transit

Forklift

Bus

Emergency & Rescue

Specification

Items		Specification
Solution		Hi3521A Linux system
Language		Simplified/Traditional Chinese, English, Russian (other languages can be customized)
Video compression format		H.264
GUI	Graphic OSD	Character overlay function, support time and date, channel characters, split border, vehicle information and other image overlay
GUI	Graphic OSD	System parameters can be set via external display and remote control
Video and recording systems	Video input	4/8-channel AHD/1080P, 960P, 720P, D1 (CVBS) video input; Compatible with mixed input of CVBS and AHD signals; Compatible with both PAL and NTSC mixed inputs
	Video output	HDMI x1； VGA x1； CVBS x2（RCA+M12 Aviation Head 1.0Vp-p 75Ω）
	Preview function	Multiple display modes splicing preview, support manual / voltage triggered full screen display function
	Video Resolution	1080P、720P、D1 are optional
	Video quality	Full HD, HD, Standard, Normal 4-level video adjustable
	Video mode	Automatic video recording at power on
Audio	Audio input	8CH M12 Aviation Head
	Audio output	1CH（RCA+M12Aviation Head）
	Compressed forma	G.7111UCompression, Speed:8KB/s
Trigger Input		4 groups of IO alarms (six groups of eight channels), high level or pulse speed input; with alarm linkage function
Trigger Output		2CH Switching output, linkage sound and light alarm, oil and power failure, etc.
Optional Functions	Communication Interface	RS232*1
	Communication Interface	RS485*1
	3G/4G	Built-in module: 4G wireless transmission function, TDD-LTE, FDD-LTE; Compatible with 3G networks WCDMA, CDMA2000,TD-SCDMA, compatible with GPRS, EDGE;
	RJ45	Ethernet network connectivity, RTSP video streaming, LAN live preview
	Wifi	Built-in module, support 2.4G or 5G frequency; support wifi4/wifi6 and other protocol modules；
	Location	Built-in module to support GPS / BD or GLOANSS satellite positioning；
Storage	SD card+HDD	Support 1*1TB SD Card +4TB 2.5Inch HDD；
	Upgrade Methods	Support U disk upgrade, SD card upgrade, FTP remote automatic upgrade
	Storage Methods	Proprietary bare disk pre-allocated storage (industry advanced storage)
	USB	Can be used for software upgrade, video file copy, video storage or mouse operation
Recording Playback	Video Search	Video data can be searched by recording time, recording mode, etc.
Recording Playback	Playback	Support 4/8channel synchronous playback, support pause, fast forward, rewind
Power and Consumption	Power management	Adaptive wide power input, reverse connection protection, power loss/over-voltage/over-current protection, short circuit protection function; Support time-delay shutdown function.
	Input voltage	DC:+8V ~ +36V（Over 42V auto shutdown protection）
	Output voltage	+12V@2.5A，+5V@2A
	Consumption	normal operating state＜5W （ Not including others）
Working environment	Temperature	-30℃ to +70℃
Working environment	Humidity	20% to 80%
Security Management	Password	Two-level management of user password and administrator password
Others	size
Others	net weight

As shown in the following list:

Video quality	Recording file size 10 minutes	64G	128G	256G	512G	1TB	2TB	4TB
ordinary	110M	12hour	24hour	49hour	99hour	198hour	397hour	794hour
standard	150M	9hour	18hour	36hour	72hour	145hour	291hour	582hour
high definition	190M	7hour	14hour	28hour	57hour	114hour	230hour	460hour
Full HD	230M	5hour	11hour	23hour	47hour	95hour	190hour	380hour
