4G 4CH 1080P HD MDVR with GPS & WiFi for Trucks, Cars, Buses - Wholesale Direct

4G 4CH 1080P HD MDVR with GPS & WiFi for Trucks, Cars, Buses - Wholesale Direct

This MDVR is a compact and reliable vehicle surveillance system. It features a Hisilicon HI3521A chip, supports 4CH AHD 1080P/720P video input, and offers 3CH output (CVBS, VGA, HDMI). With GPS/4G/WiFi options, it uploads data to the CMSV6 platform. It includes up to 1TB SD card storage and supports a 4T 2.5-inch SSD. Designed for -30℃ to 70℃ operation, it consumes less than 5W and runs on 12V-36V power.

Quantity:
Availability:





Inquire Add to Basket

Model:
SMT9804M

Core Features of 4CH AI MNVR

1.High-Performance Chipset & Compression

Equipped with the Hisilicon HI3521A(V100) chip and H.264 compression, it delivers up to 1080P video recording, ensuring efficient storage utilization and smooth video capture even at high resolutions.

2.Robust Storage Solution

Supports up to 1TB SD card and 4T 2.5-inch SSD (optional). The bare-disk storage technology prevents data loss and fragmentation, ensuring data integrity in the complex environment of vehicle operation.

3.Wide Voltage Input & Low Power Consumption

Features 8V-36V wide voltage input and ultra-low power consumption (<5W), making it suitable for various vehicle types. UPS technology protects data during power failures, ensuring complete event recording in unexpected situations.

4.Flexible Connectivity & Remote Monitoring

GPS/4G/WiFi module options (optional) allow video and GPS track uploads to the CMS platform, enabling remote monitoring, real-time video viewing, and playback. This feature is ideal for fleet management and remote surveillance needs.

5.Reliable Design & Durability

High-reliability aviation connectors and strong anti-vibration performance ensure stable operation in extreme temperatures (-30℃ to 70℃), making the device durable in harsh conditions.

This SSD MDVR is an ideal choice for vehicle surveillance, meeting the needs of various monitoring scenarios.

Scenes Solutions

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

Freigt Truck

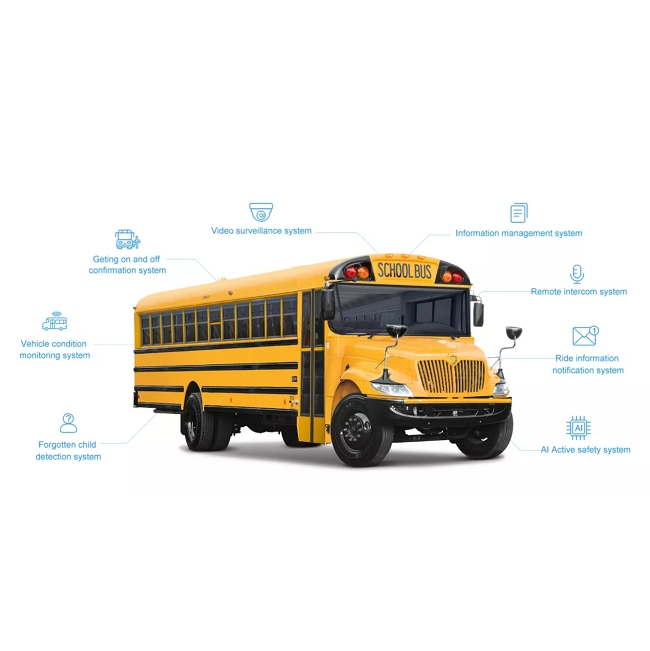

School Bus

Taxi

Rail Transit

Forklift

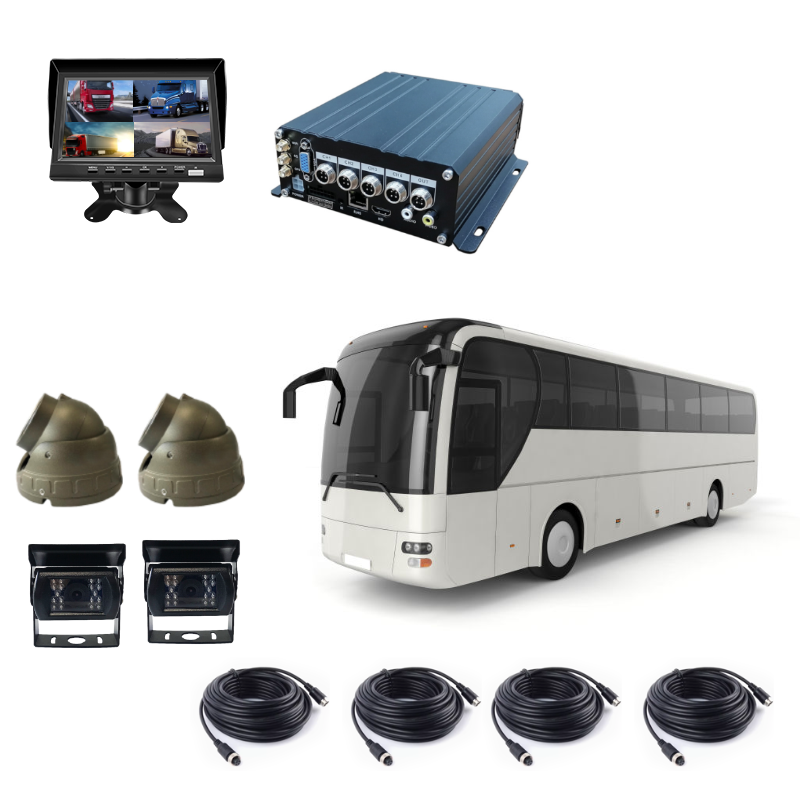

Bus

Emergency & Rescue

Specification

Item	Function	Description
SMT9804M	OS	Linux
	Menu Language	Chinese, English, other（can be customized）
	Video Compression	H.264
	Password Lock	The user password and administrator password
Video Function	Video Input	Supports 4-channel AHD 1080P, AHD 720P, TVI,AND D1 signal input aviation header ports Compatible with different signal source mixed input display
	Video Output	Three integrated outputs: HDMI+VGA+CVBS output
	Preview	Support single channel and 4 channel or 6 channel or 8 channel preview
	Video Format	PAL or NTSC
Audio	Audio Input	4CH
	Audio Output	No
	Record Mode	Audio and video are recording simultaneously
Video Storage Function	Recording Channel	4 channels can be chosen, each channel has independent media file folder
	Main Stream Resolution	4CH:1080P\720P\D1\HD1\CIF	4CH:1080P\720P\D1\HD1\CIF
	Sub-stream resolution	GIF\HD1\D1
	Recording Mode	Support boot recording (default), timer recording, alarm recording
	Image Quality	Normal, standard, HD, ULTRA HD 4 levels are optional
	OSD	stack date, time, GPS latitude and longitude, channel ID, license plate, etc.
	Storage	Support 1TB Micro SD card and 4T hard disk loop or mirror recording, and cyclic coverage deletion
Playback Subsystem	Video Search	Search according to recording time, recording type, video storage device, etc.
	Video Playback	Support local playback, 4 channel synchronous playback, full-screen playback preview of each channel
		Support local playback, 4 channel synchronous playback, full-screen playback preview of each channel
Alarm	Alarm Input	4 CH alarm input
	Alarm Output	2CH alarm output, output 12V high-level
Optional Functions	RS485 Protocol	Support 1*RS485 port
	RS232 Protocol	Support 1*RS232 port
	3G/4G	Built-in 3G or 4G communication module
	WIFI	Built-in WIFI module(2.4/5.8GHz is optional)
	GPS	Built-in GPS module; latitude, longitude, speed, etc. can be superimposed to video files, and can be uploaded wirelessly
	G-sensor	Built-in G-Sensor
Platform Software	PC Software and Web	Vehicle information analysis, video real-time preview, voice intercom, GPS upload, alarm upload, central command delivery, parameter configuration, remote video playback and other device management
	Mobile Phone Software	Video live preview, voice intercom, GPS positioning, message notification, etc.
Software Upgrade	USB Port	1 interface, used for software upgrade or video file copy or video storage or mouse operation
	Sever	Support upgrade by memory card or remote upgrade of client server
