7-Inch Touch Screen 4CH AHD 4G WIFI GPS Car Reverse Aid System Split Monitor with ADAS BSD DMS AI Function

7-Inch Touch Screen 4CH AHD 4G WIFI GPS Car Reverse Aid System Split Monitor with ADAS BSD DMS AI Function

This 7-inch touchscreen DVR monitor is a versatile surveillance solution featuring a 1024×600 resolution screen and powered by a Hisilicon Linux OS. It supports 4-channel 1080P video input with CVBS compatibility, offering high-definition recording. Equipped with an ARM Cortex-A7 quad-core CPU and 8GB DDR4 RAM, it ensures smooth performance. The device includes boot and timing recording modes, stores data on a 1TB TF card with loop coverage, and operates in -30℃ to +70℃. Its compact size (182×120×30mm) and lightweight (0.9kg) make it suitable for various applications.

Quantity:
Availability:





Inquire Add to Basket

Model:
SMT848-754 MDVR Monitor

Core Features of APC Camera

1. High-Performance Processor and Large Memory

Equipped with an ARM Cortex-A7 quad-core processor running at 1.2GHz and 8GB DDR4 RAM, our DVR monitor ensures smooth and stable performance even with multiple tasks and 4-channel HD video input. This powerful configuration guarantees clear and fluent surveillance footage, enhancing the overall performance of your monitoring system.

2. High-Definition Video Input and Compatibility

Supporting 4-channel 1080P HD video input with compatibility for AHD and CVBS signals, our device can seamlessly integrate with various types of cameras. Whether you are upgrading to HD cameras or still using analog ones, our DVR monitor can handle both, saving you the cost of a full system replacement. It also supports multiple video resolutions, including 1080P, 720P, and D1, to meet different surveillance needs.

3. Intelligent Recording and Storage Management

Featuring boot recording and timing recording options, users can set up automatic recording schedules to ensure no critical moments are missed. With support for up to 1TB TF card storage and loop coverage recording, the DVR monitor will automatically overwrite the oldest footage when the storage is full, ensuring continuous operation without manual intervention.

4. Wide Operating Temperature Range

Designed to operate in extreme conditions, our DVR monitor works reliably within a temperature range of -30℃ to +70℃. This wide temperature tolerance makes it suitable for various challenging environments, such as outdoor installations, industrial plants, and parking lots, providing continuous surveillance regardless of the weather.

5. Multiple Network Connections and Smart Features (Optional)

Our DVR monitor supports 4G, WIFI, and GPS (optional) connectivity, allowing users to remotely access and monitor footage via smartphones or computers. Additionally, it offers optional intelligent features such as ADAS (Advanced Driver Assistance Systems), DMS (Driver Monitoring Systems), and BSD (Blind Spot Detection), enhancing the functionality and adaptability of the surveillance system for different industries.

Scenes Solutions

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

Truck

School Bus

bus monitor

Taxi

Freight Trucks

Forklift

Trucks

Emergency & Rescue

Specification

Item		Parameter
Plan		Hisilicon solution
System language		Simplified Chinese, Traditional Chinese, English, Russian, Korean, Other (customizable)
Video compression format		H.264/H.265(optional)
OSD		Character overlay function, supports time and date, channel characters, segmentation borders, vehicle information and other image overlays
Video and recording System	Video input	4CH AHD1080P/960P/720P and 960H, D1 (CVBS) and other video inputs; Compatible with CVBS and AHD signal mixed input; Compatible with PAL and NTSC mixed input;
	Preview function	Multi-screen mode splicing preview, support manual/voltage trigger full screen display function
	Display resolution	1024*600
	Video resolution	1920*1080
	Video quality	Ultra-clear, high-definition, standard, and ordinary 4-level video recording adjustable
	Video method	Automatic recording when powered on
Audio	Audio input	Cable is not supported
	Audio output	1 set of speaker output provides AI algorithm sound
	Compression format	G.711u
Trigger input		3 groups of I/O triggers, support 12-24V power supply to trigger full screen display
Memory card	TF card	Supports up to 1TB memory card, automatically deletes when full, and overwrites in a loop
	Upgrade method	Support TF card video card upgrade
	Storage method	Proprietary raw disk storage method: real-time storage, without missing a second
	USB	Support
Video playback	Video search	You can choose the last three days, last week, last two weeks, last month, all, etc.
	Playback	4CH synchronous playback, support pause, fast forward and fast rewind
	Playback	Support 2, 4, 8 times fast forward or rewind
Sever platform	4G	Built-in 4G communication module
Sever platform	GPS	Built-in GPS/Beidou dual-mode module, supports built-in single Beidou module
Expand functions	AI algorithm	Support built-in ADAS/DSM/BSD and other algorithms
Power supply and consumption	Power management	Adaptive wide power input, with protection functions such as low voltage, over voltage, reverse connection and short circuit
	Input voltage	DC:+12V ~ +36V
	Output voltage	+12V/3A
	Consumption	Normal working state <8W (excluding camera)
Working environment	Temperature	-30℃ to +70℃
Working environment	Humidity	0% to 50%

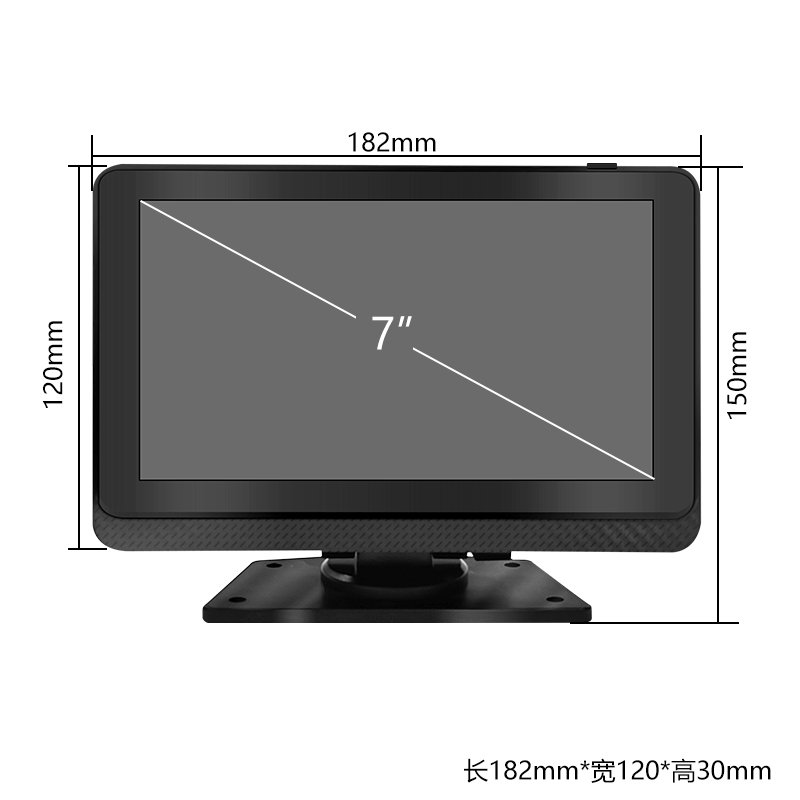

Other	Size	182mm120mm30mm
Other	N.W
