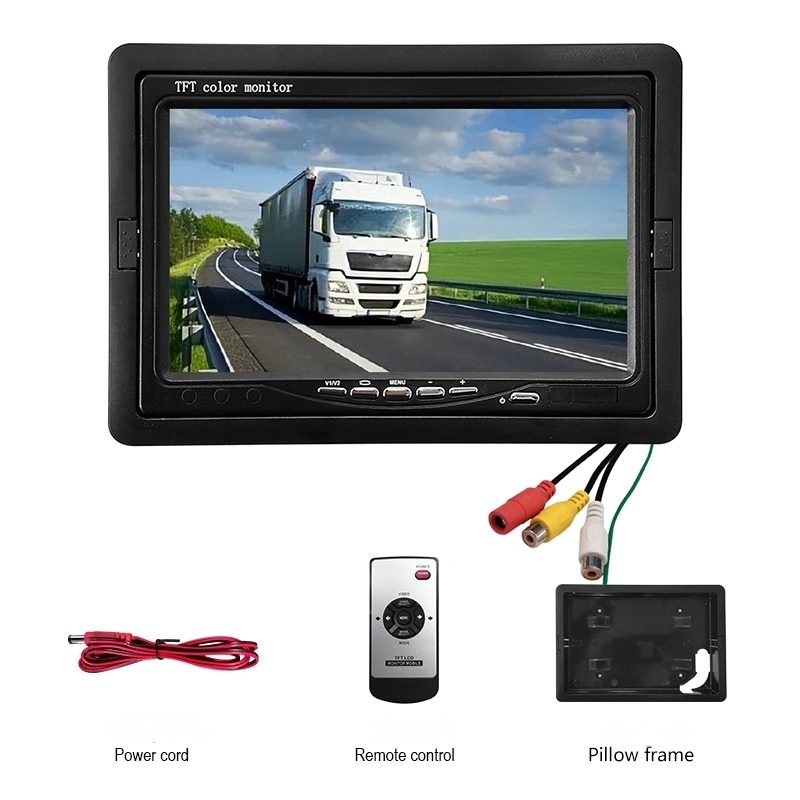

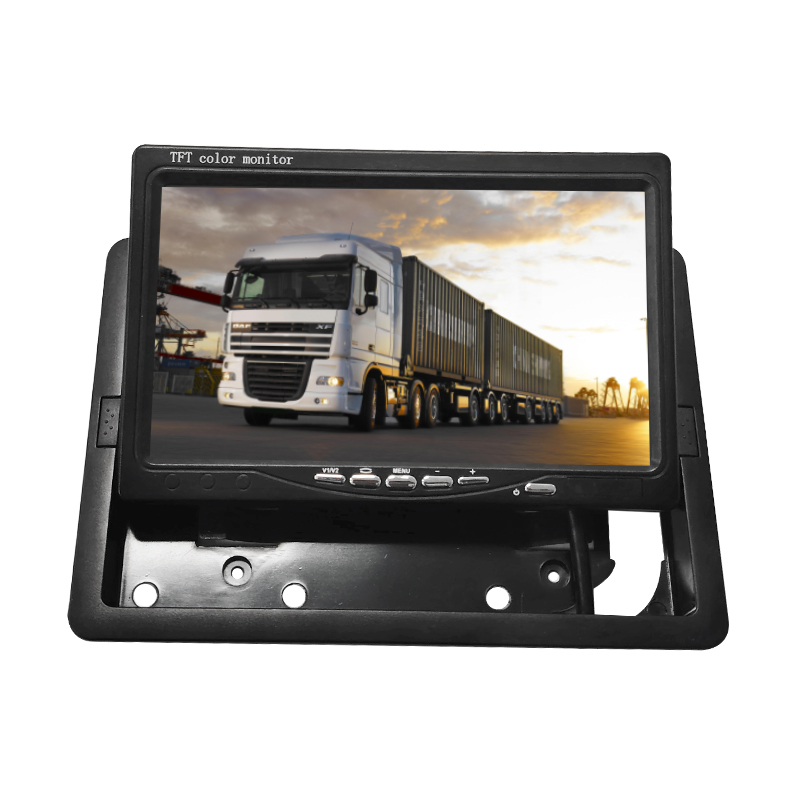

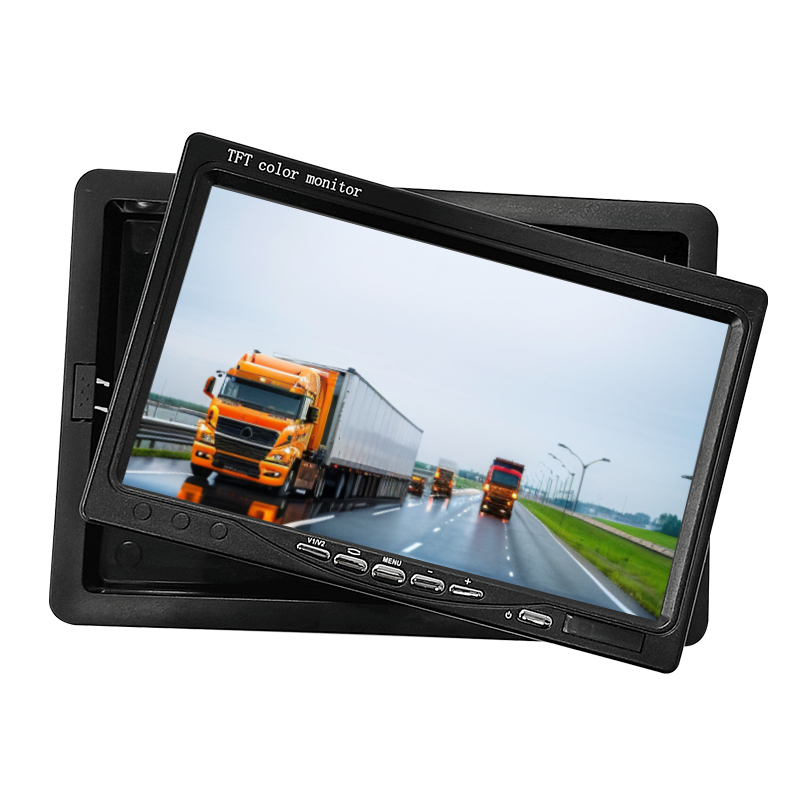

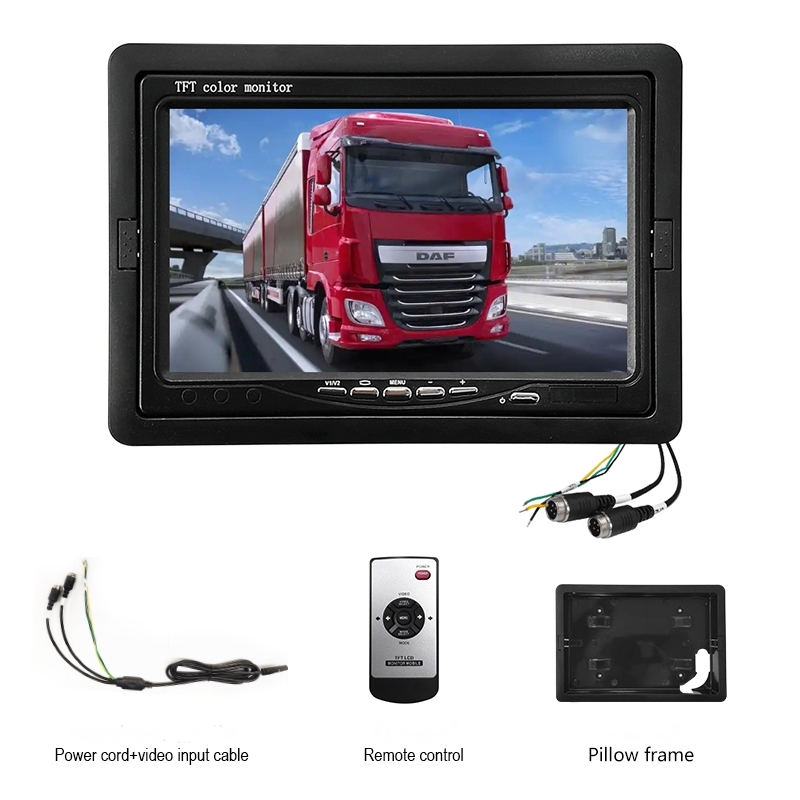

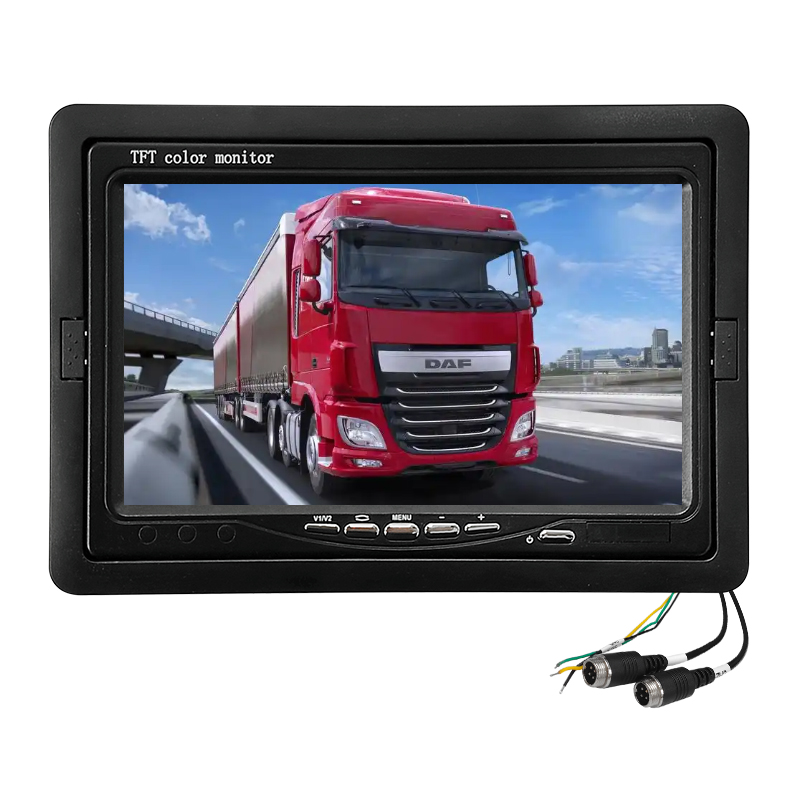

SMT730-074 Pillow frame MONITOR
Core Features of 7 inch Car Monitor/Screen
1. High-Resolution and Wide Viewing Angle
The 7-inch AHD monitor features a 1024x600 IPS screen, providing clear and detailed images. With a horizontal viewing angle of 170° and a vertical viewing angle of 45°, it ensures visibility from multiple angles. The brightness of 600 cd/㎡ and an 800:1 contrast ratio deliver excellent image quality in various lighting conditions, making it ideal for applications where clear visuals are crucial.
2. Robust Video Input Compatibility
This monitor supports AHD 1080P, 720P, and CVBS video input resolutions, ensuring compatibility with a wide range of cameras. It features 2CH M12 interfaces (with optional AV), providing reliable connections for multiple cameras. The automatic detection and switching between PAL and NTSC systems make it suitable for global use, enhancing its versatility.
3. Energy-Efficient and Durable Design
The monitor operates on a wide DC voltage range of +8V to +36V and consumes less than 4.5W of power, making it highly energy-efficient and cost-effective for long-term use. It is designed to operate reliably in a wide temperature range of -20℃ to +60℃, ensuring durability in harsh environments, such as industrial settings or outdoor applications.
4. Flexible Operation Modes
Equipped with both key and remote control operation modes, the monitor offers user-friendly interaction options. It supports reverse ruler lines, mirror, and flip functions, which are particularly useful for automotive applications such as backup cameras. These features allow the monitor to be customized to fit specific installation requirements and user preferences.

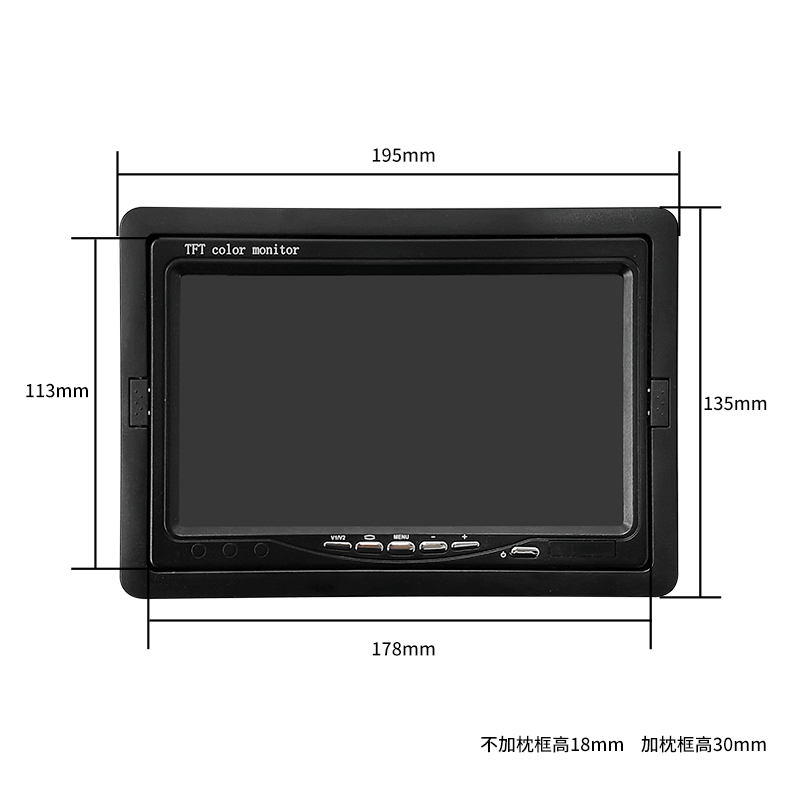

5. Compact and Easy to Install
With dimensions of 178mm x 113mm x 18mm (195mm x 135mm x 30mm with accessories), the monitor is compact and easy to install in space-limited areas. Its small form factor makes it ideal for automotive dashboards, industrial control panels, and security monitoring rooms, without compromising on functionality.
6. Versatile Applications
Suitable for a wide range of applications, including automotive, security, industrial, and retail. Whether used as a backup camera monitor, a surveillance display, or an industrial control screen, the 7-inch AHD monitor provides reliable performance and high-quality visuals. Its compact size and versatile features make it a valuable addition to any monitoring system.
Scenes Solutions
Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.
Freigt Truck
School Bus
RV
Taxi
Rail Transit
Forklift
Bus
Emergency & Rescue
