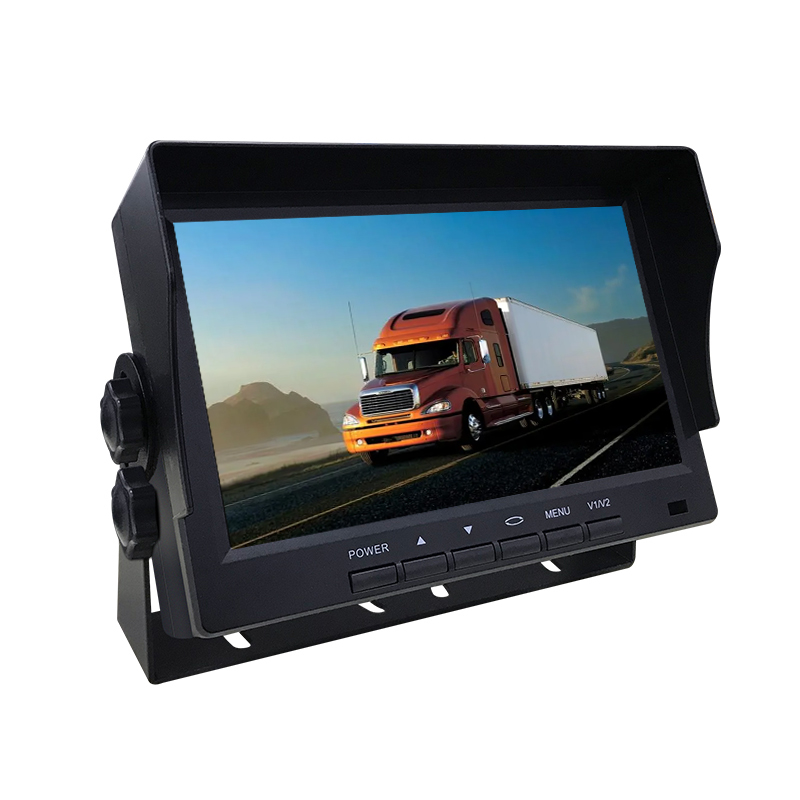

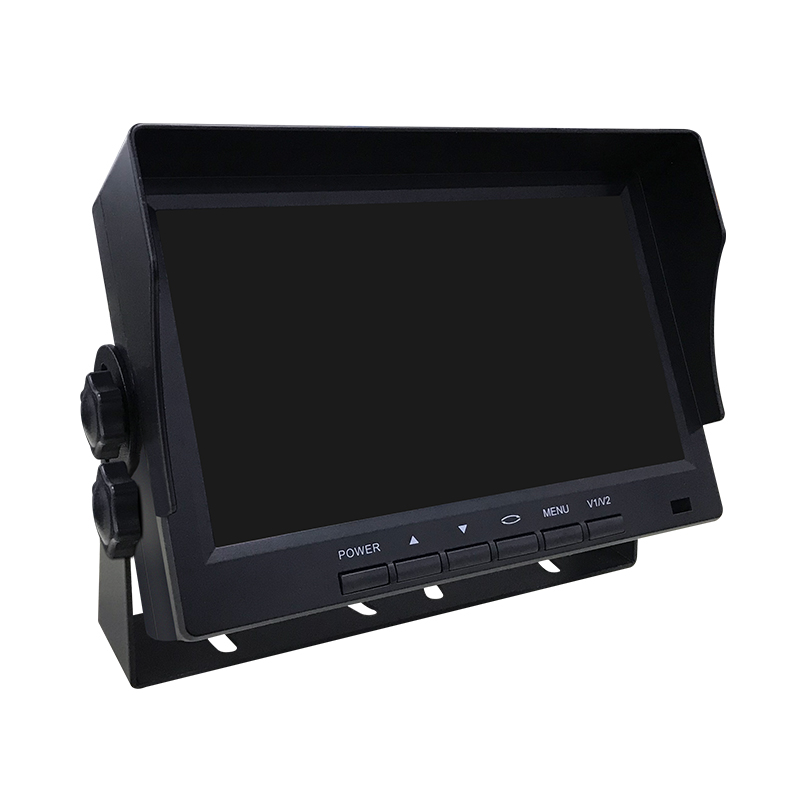

SMT760-07 MONITOR
Core Features of 7 inch Car Monitor/Screen
1. High-Resolution and Wide Viewing Angle
The 7-inch AHD monitor features a 1024x600 IPS screen with a horizontal viewing angle of 170° and a vertical viewing angle of 45°. This wide-angle capability ensures clear visibility from multiple positions, making it ideal for applications where the monitor may be viewed from different angles. The 600 cd/㎡ brightness and 800:1 contrast ratio provide clear and detailed images even in challenging lighting conditions.
2. Flexible Operation and Customization
Equipped with both key and remote control operation modes, the monitor offers user-friendly interaction options. It supports reverse ruler lines, mirror, and flip functions, which are particularly useful for automotive applications such as backup cameras. These features allow the monitor to be customized to fit specific installation requirements and user preferences.
3. Robust Video Input Compatibility
The monitor supports 1080P video input with backward compatibility, ensuring seamless integration with both high-definition and standard-definition cameras. It features 2CH M12 interfaces (with optional AV), providing reliable and stable connections for multiple cameras. The automatic detection and switching between PAL and NTSC systems make it a versatile choice for global use.
4. Energy-Efficient and Durable Design
The monitor operates on a wide DC voltage range of +8V to +36V and consumes less than 4.5W of power, making it highly energy-efficient and suitable for long-term use. Its durable design ensures reliable performance in a wide temperature range of -20℃ to +60℃, making it ideal for harsh environments such as industrial settings and outdoor use.
5. Compact and Easy to Install

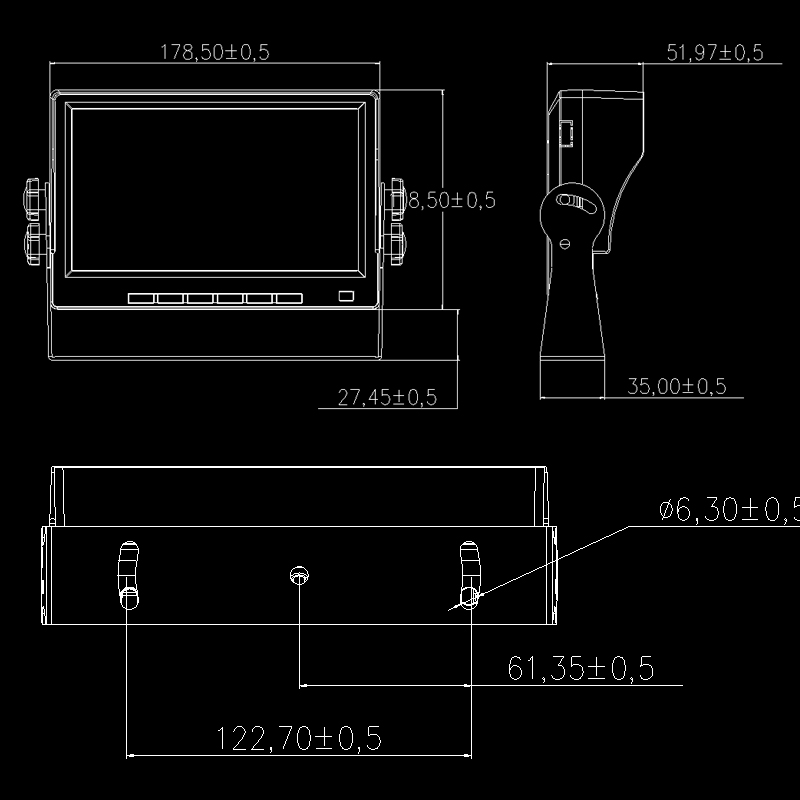

With dimensions of 178mm x 123mm x 52mm, the monitor is compact and easy to install in space-limited areas. Its small form factor makes it suitable for various applications, including automotive dashboards, industrial control panels, and security monitoring rooms, without compromising on functionality.
6. Optional Accessories for Enhanced Functionality
The monitor offers optional accessories, such as additional cameras and cable lengths of 5m or 15m. These accessories allow users to customize their setup based on specific needs, enhancing the flexibility and expandability of the product. This makes it a versatile solution for a wide range of applications, from simple backup camera setups to complex multi-camera surveillance systems.
Scenes Solutions
Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.
Freigt Truck
School Bus
RV
Taxi
Rail Transit
Forklift
Bus
Emergency & Rescue
