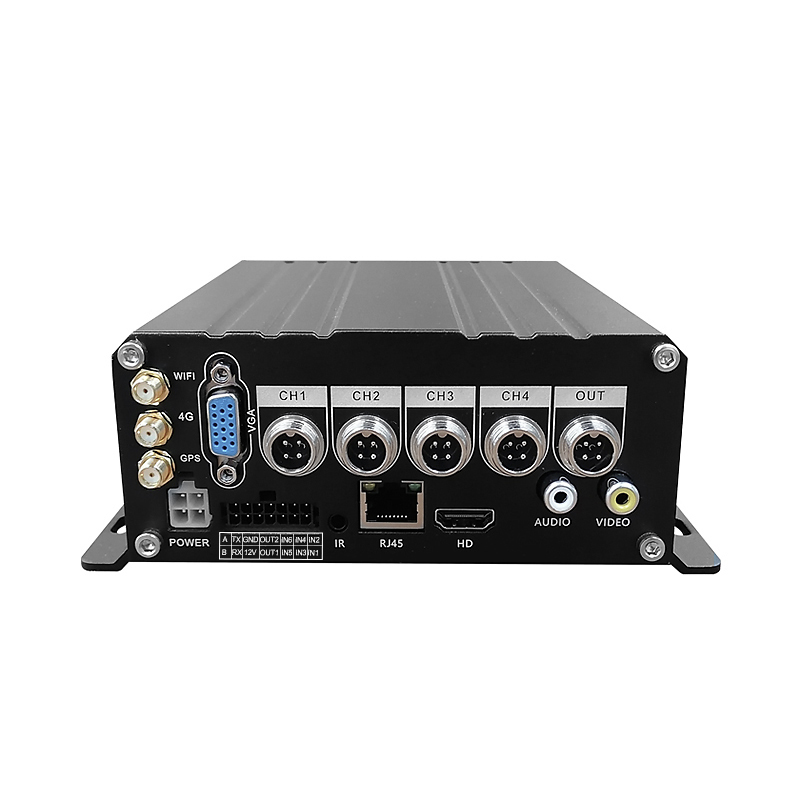

1080P 4CH MDVR Digital Video Recorder with 4G SIM WiFi GPS Video Vehicle Truck

The 4ch AI MDVR (4-Channel Artificial Intelligence Mobile Digital Video Recorder) is a sophisticated vehicle surveillance system designed for real-time monitoring, data recording, and AI-driven safety features

Quantity:
Availability:





Inquire Add to Basket

Model:
SMT9824AI

Core Features of 4CH AI MDVR

Core Features of 4ch AI MDVR

1.AI-Powered Safety Systems

ADAS (Advanced Driver Assistance System): Includes lane departure warnings, forward collision alerts, and pedestrian detection .

DMS (Drive Monitoring System): Detects fatigue, distraction, smoking, or phone usage via facial recognition .

BSD (Blind Spot Detection): Alerts drivers to obstacles in blind spots, supporting detection of pedestrians and non-motorized vehicles .

2.Video and Audio Capabilities

4-Channel Input: Supports up to 4 cameras in 1080P/720P resolution with H.264/H.265 compression for efficient storage .

Synchronized Recording: Combines video, audio (e.g., GPS location, G-sensor data) .

3.Storage and Durability

Dual Storage Options: Combines HDD/SSD (up to 4TB) and SD cards (up to 1TB) for redundancy .

Military-Grade Design: Anti-vibration, dustproof, and wide temperature tolerance (-30°C to +70°C) for harsh environments .

4. Connectivity and Power

4G LTE/WiFi/GPS: Enables real-time tracking and remote video access .

Wide Voltage Input (12–36V DC): Compatible with vehicle power systems .

5. Additional Functions

Intercom Support: audio communication .

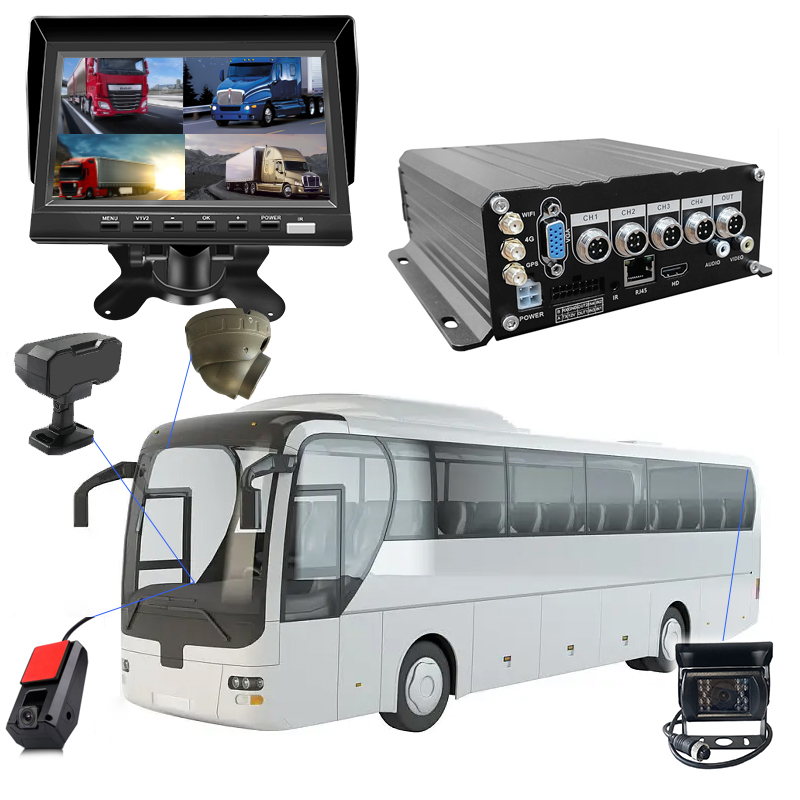

Scenes Solutions

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

Freigt Truck

School Bus

Taxi

Rail Transit

Forklift

Bus

Emergency & Rescue

Specification

Operating system		Embedded Linux system Hisilicon solution
System language		Simplified/Traditional Chinese, English, Russian, Korean (other languages can be customized)
Video compression format		H.264/H2.65 compressed mode
OSD		Character superposition function, support time, date, channel name, vehicle ID and other information superposition
GUI	Graph OSD	System parameters can be set by external display and remote control
safety management	Password access	User password and administrator password are managed at two levels

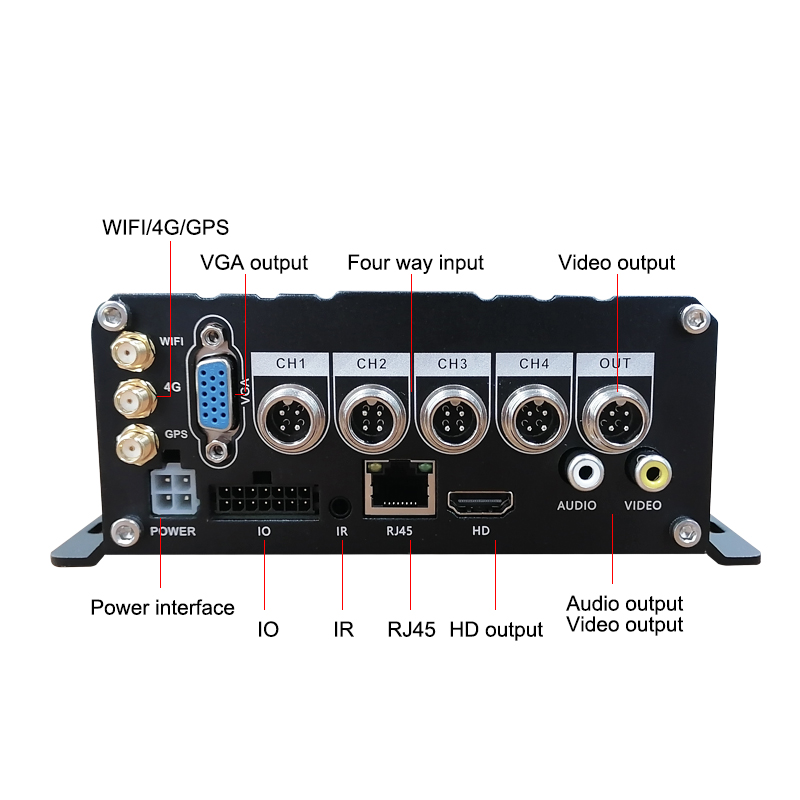

	video input	4CH AHD/TVI 1080P Backward compatibility, and support for CVBS input
	video output	HDMI x1； VGA x1； CVBS x1（RCA+M12Aviation head 2 ports 1.0Vp-p 75Ω）
	Preview function	Single-channel, 2/3/4/ screen splicing preview, support manual/alarm trigger full screen display function
	Video resolution	1080P、720P、D1 optional
	Video quality	Normal, standard (default), HD, Ultra HD 4 optional
	Video mode	Boot automatic video, timing video, alarm video
Audio	Audio input	4CH M12 Aviation head
	Audio output	1CH（RCA+M12 Aviation head 2interface）
	compressed format	G.711UCompression format, rate 8KB/s
Storage	storage medium	SD card supports 1TB and hard disk supports 4TB.
	Upgrade mode	Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade
	storage mode	Proprietary raw disk Preallocated storage (industry advanced storage)
	USB	USB interface, you can use U disk backup video and upgrade and mouse connection
Replay	video retrieval	You can search video data by recording time and recording method
Replay	Playback	Support 8 synchronous playback, pause, fast forward, fast rewind
Alarm input		4 groups (8 channels can be customized) IO alarm, high level input, pulse input; With alarm linkage function
Signal transfer output		2 switch output, linkage sound and light alarm equipment, oil cut-off equipment, etc
Optional function	communication interface	1CH RS232 interface
	communication interface	1CH RS485 interface
	Mobile network	Built-in 4G module, support TDD-LTE, FDD-LTE network Compatible with 3G-WCDMA, CDMA2000,TD-SCDMA and GPRS, EDGE and other networks;
	WIFI network	Built-in wifi module 2.4G band, network connection, wifi camera connection, support for optional 5G band
	RJ45 network	Ethernet network connection, RTSP video streaming, LAN live preview,IPC camera connection
	Location	Built-in positioning module; Support for optional GPS/BD/GLONASS satellite positioning
Power supply and power consumption	power management	Adaptive wide power input, reverse short-circuit protection, power loss/overvoltage/overcurrent protection function; Support 0-24 hours delay shutdown function.
	Input voltage	DC:+8V ~ +36V（Greater than 42V automatic shutdown protection）
	Output voltage	+12V@2.5A
	Consumption	normal working＜5W
work environment	Temperature	-30 ℃ ~ +70 ℃
work environment	Humidity	20% ~ 90%
Others	N.W	1.14KG
