SMT9824-4R

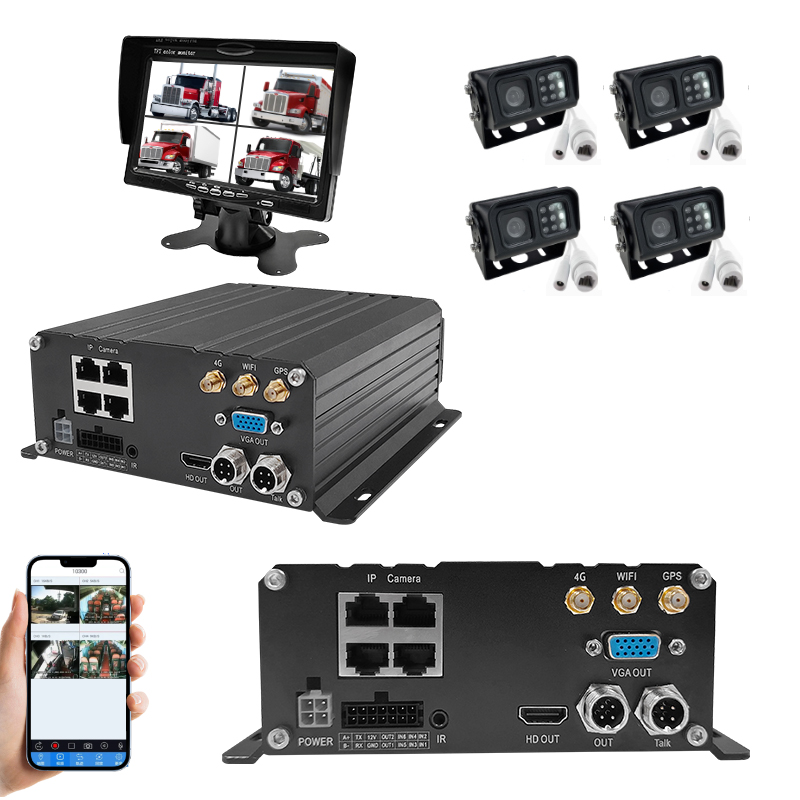

Core Features of 12CH Mobile NVR Systems Vehicle MDVR
Key Features of 12CH Mobile NVR Systems Vehicle MDVR
1. HiSilicon Linux system solution, H.264/H.265 compression mode, multi stream recording, high-definition recording effect up to 1080P;
2.8V-36V adaptive wide voltage input range (automatic shutdown protection above 42V), ultra-low power consumption design, suitable for use in various vehicles;
3. Professional car power protection design, non scalding, with international standard power polarity reverse protection, loss/overvoltage/overcurrent protection, and short circuit protection;
4. Automatic trigger display function (IN1-IN4 trigger input function can be set, and the screen will automatically switch to display the corresponding image);
5. High resolution 1920x1080 (including video input, output, and recording resolution);
6. Support 4CH 200M IPC camera connection inputt;
7. Support multiple storage strategies such as multi disk cyclic storage, main stream storage, and small stream storage;
8. Supports 4T hard drive and 1T SD card recording, uses aviation shock resistant materials to reduce data damage caused by vehicle vibration, and the product can adapt to more harsh road conditions;
9. Rich variety of display modes, all of which can be independently set as startup screens to meet the special needs of different users;
10. Advanced bare disk+pre partitioned storage technology solves the problem of easy damage caused by uneven disk writing, the problem of file fragmentation caused by repeated erasing, the problem of data loss caused by storage file system crashes, inability to find storage, and file garbled characters, and the problem of data loss caused by time synchronization, ensuring data integrity and effectiveness. The use of dedicated storage methods solves the problem of data confidentiality;
11. Exclusive bare disk storage technology, perfectly solving the problems of video data leakage, loss of seconds, and ineffective storage for other products in the market;
13. Each camera image can independently set brightness, contrast, saturation, chromaticity, and sharpness;
14. Each camera screen can independently set the reversing marking line (users can adjust the position and width of the auxiliary line);
15. Each camera image can be independently set to move and zoom in, cutting unnecessary images around the video;
16. Support top bottom left right margin image scaling adjustment for video output, adapting to full display of various screen images without being cut;
17. Provide DC12V power output, which can provide constant voltage power supply for multiple peripheral devices such as cameras and displays;
18. Real time high-definition video recording, 1080P/720P/D1 optional, adjustable frame rate and image quality;
19.4 alarm inputs (including door opening and closing, lighting, steering, braking, reversing, and various other types that can be configured), which can be linked to multiple responses;
20.2 alarm outputs, supporting linkage of sound and light alarms, oil and power cut-off controllers, etc;
21. Support enabling/disabling OSD character overlay function (time, date, channel number, vehicle information, etc.);
22. Supports multilingual menus such as Simplified/Traditional Chinese, English, Korean, Russian, etc. (customizable menus for other languages);
23. Support customization of startup logo;
Scenes Solutions
Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.
Freigt Truck
School Bus
RV
Taxi
Rail Transit
Forklift
Bus
Emergency & Rescue
