You are here: Home » Products » MNVR Series » 4CH MNVR M12-6Pin » Logo Customized Vehicle IPC 1080P SD HDD Mobile NVR Car DVR Camera System Bus Truck MNVR Monitor Kit

Product Category

4CH 1080P IPC MNVR H.265 H.264 SD Card HDD Mobile NVR for Truck Vehicle Train

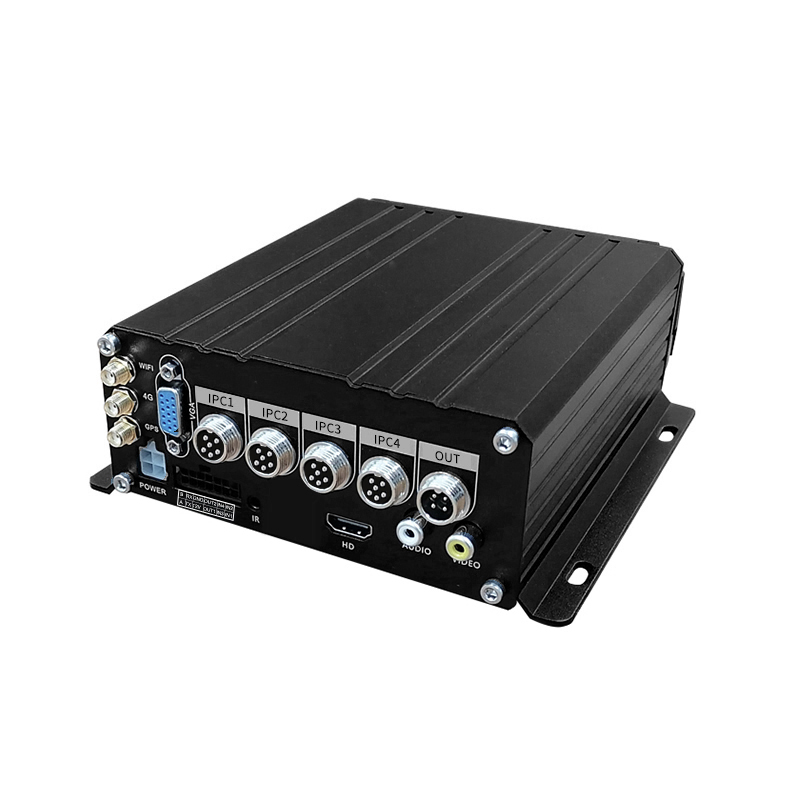

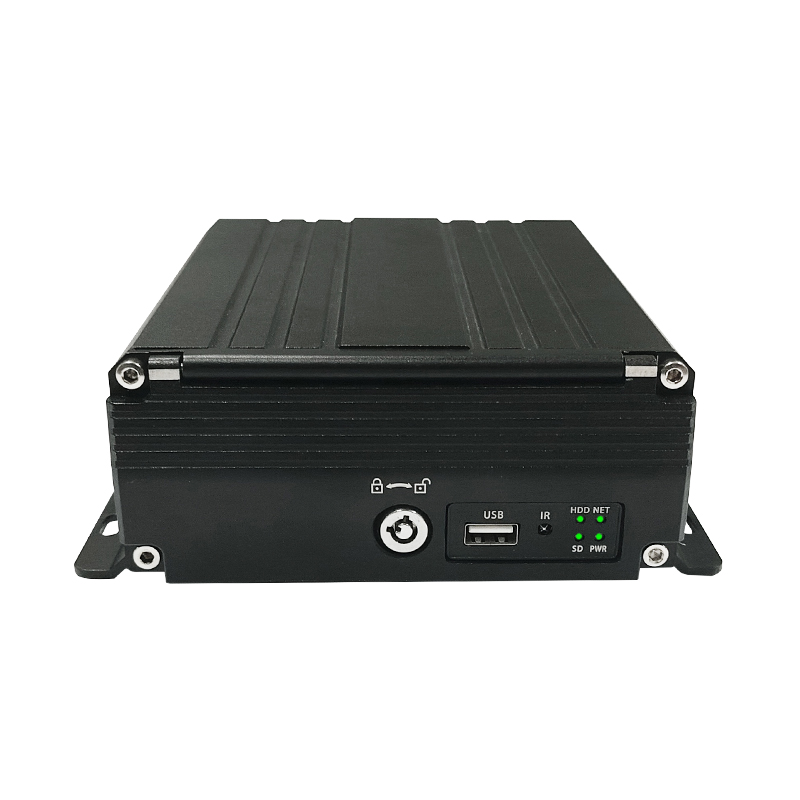

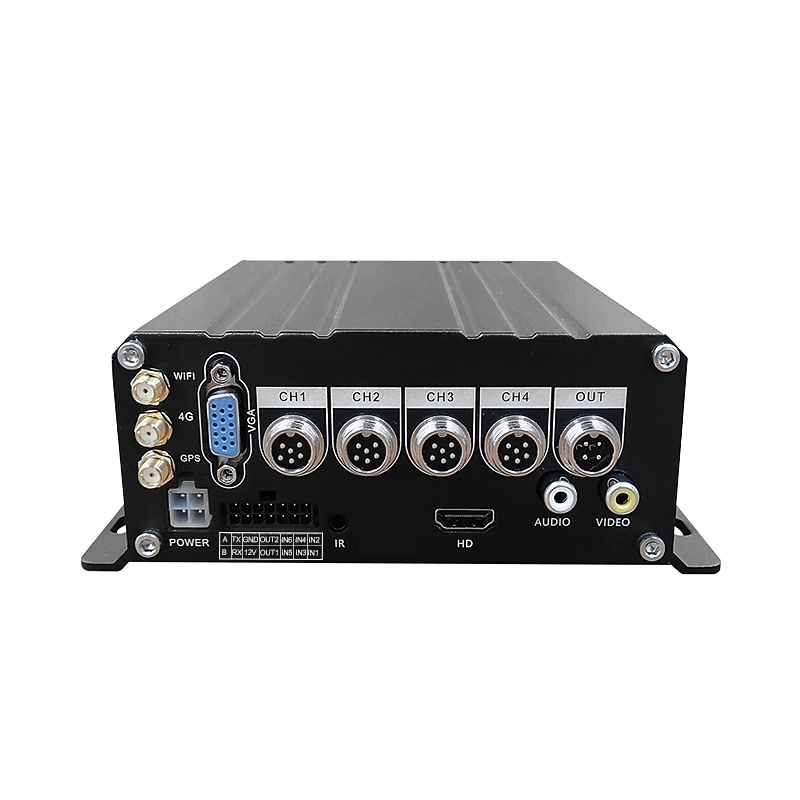

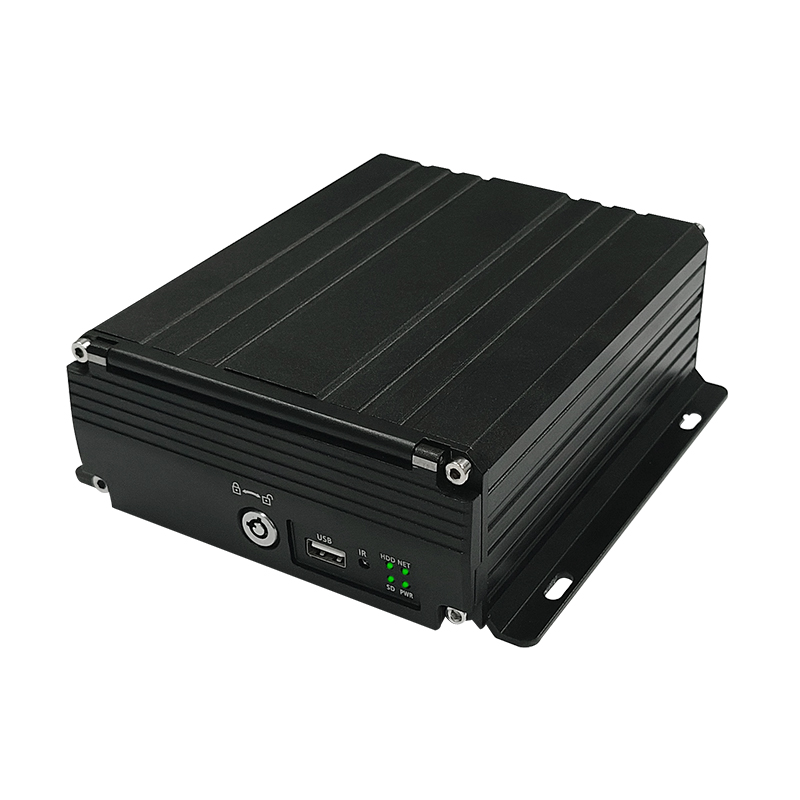

Logo Customized Vehicle IPC 1080P SD HDD Mobile NVR Car DVR Camera System Bus Truck MNVR Monitor Kit

4ch IPC MNVR Ideal for logistics vehicles, public transport (buses, taxis), and industrial fleets requiring,mobile surveillance with IP camera integration. It is a sophisticated vehicle surveillance system designed for real-time monitoring, data recording

Quantity:
Availability:





Inquire Add to Basket

Model:
SMT9824-IPC

Core Features of 4CH AI MNVR

Key Features of 4CH IPC MNVR

1. IPC Camera Support

- Supports 4CH IP cameras (IPC)

- Resolution options include1080P/720P with H.265/H.264 compression for efficient storage and transmission .

2. Mobile and Network Capabilities

- 4G LTE connectivity for real-time remote monitoring and GPS/Glonass/Beidou tracking .

- Optional Wi-Fi and SIM card support for redundancy .

3. Storage and Durability

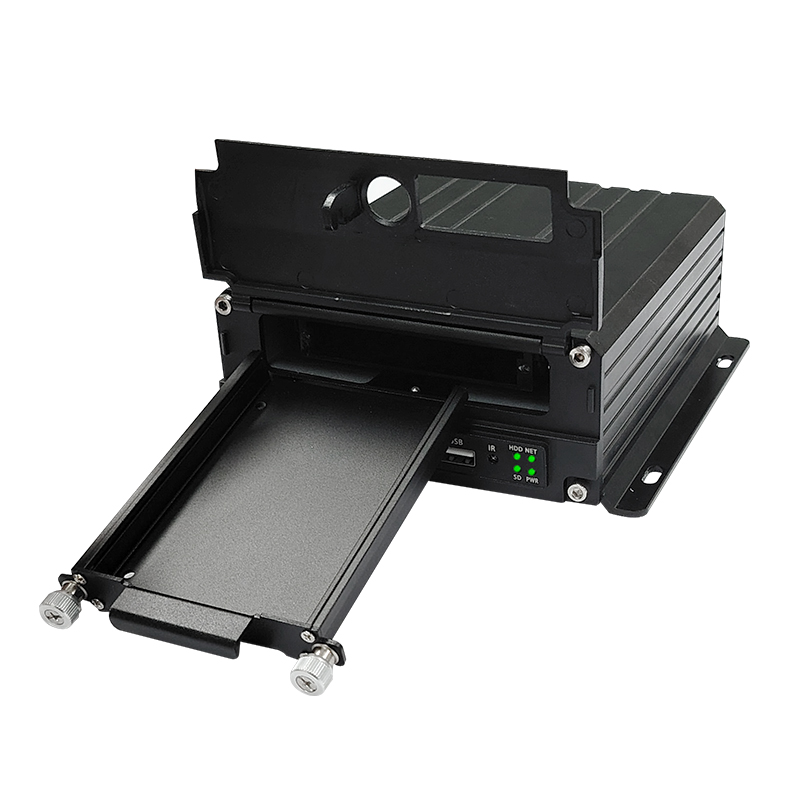

- SD card slots and HDD (SD up to 1TB,HDD 4TB) for loop recording and encrypted data storage .

- Operates in extreme temperatures (-30°C to +70°C) and meets anti-electric disturbance standard

Scenes Solutions

Application: Buses, School Bus,Freigt Truck,RV,Ship & Crane,Forklifts,Emergency & Rescue,Tax,Rail Transit,Agricultual Vehicles,etc.

Freigt Truck

School Bus

Taxi

Rail Transit

Forklift

Bus

Emergency & Rescue

Specification

Operate system		Embedded Linux system Hisilicon solution
System language		Simplified/Traditional Chinese, English, Russian, Korean (other languages can be customized)
Video compression format		H.264/H2.65 compact model
OSD		Character superposition function, support time, date, channel name, vehicle ID and other information superposition
GUI	Graph OSD	System parameters can be set by external display and remote control
Safety management	Password access	User password and administrator password are managed at two levels
Video and video System	Video input	4CH IPC Camera input
	Video output	HDMI x; VGA x1;CVBS x1;M12 aviation interface x1; 1.0Vp-p 75Ω）(AHD1080P output)
	Preview function	Single,2/4/6/8/12,Screen stitching preview，Support manual/alarm trigger full screen display function
	Video resolution	1080P,720P,D1 option
	Video quality	Normal, standard (default), HD, Ultra HD 4 optional
	Video mode	Boot automatic video, timing video, alarm video
Audio	Audio input	4CH M12 Aviation head interface
	Audio output	1CH（M12 Aviation head interface）
	Compress format	G.711U compressed format , Rate 8KB/s
Storage	Storage medium	SD 1TB+HDD 4TB；
	Upgrade ways	Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade
	Storage ways	Proprietary raw disk Preallocated storage (industry advanced storage)
	USB	USB interface，Usb flash drive can be used to back up videos and upgrades as well as mouse connection
Replay	Video Search	You can search video data by recording time and recording method
Replay	Playback	Supports four simultaneous playback, pause, fast forward, and fast rewind
I/0 Alarm	Alarm input	4 groups of IO alarm, high level input, pulse input; With alarm linkage function
I/0 Alarm	Alarm output	2CH switch output, linkage sound and light alarm equipment, oil cut-off equipment, etc
Option function	communication interface	1CH RS232 interface
	communication interface	1CH RS485 interface
	mobile network	Built in 4G module,Support TDD-LTE, FDD-LTE network Compatiable 3G- WCDMA, CDMA2000,TD-SCDMA and GPRS, EDGE etc network.
	WIFI Network	Built-in wifi module 2.4G band, network connection or wifi camera connection, support for optional 5G band
	Position	Built-in positioning module; Support for optional GPS/BD/GLONASS satellite positioning
Ethernet network		Ethernet network connection, RTSP video streaming,IPC camera connection
Power supply and power consumption	Power management	Adaptive wide power input, reverse short-circuit protection, power loss/overvoltage/overcurrent protection
	Input voltage	DC:+12V ~ +36V（>42V Automatic shutdown protection）
	Output voltage	+12V@2.5A
	Consumption	Normal working＜5W
Work environment	Temperature	-30 ℃ ~ +70 ℃
Work environment	Humidity	20% ~ 80%
Others	N.W	1.3KG

Video quality	Video file size 10 minutes	64G	128G	256G	512G	1TB	2TB	4TB
Normal	110M	8Hours	16Hours	33Hours	66Hours	132Hours	264Hours	528Hours
Standard	150M	6Hours	12Hours	24Hours	48Hours	96Hours	184Hours	268Hours
HD	190M	4.5Hours	9Hours	19Hours	38Hours	76Hours	152Hours	304Hours
UHD	230M	3.5Hours	7.5Hours	15Hours	31Hours	62Hours	124Hours	248Hours

About Seemetech

Founded in 2017, Seemetech is a dynamic technology company dedicated to delivering innovative solutions in the field of intelligent transportation and vehicle security. With a strong focus on R&D, we specialize in designing and manufacturing cutting-edge products such as MDVR (Mobile Digital Video Recorders), MNVR (Mobile Network Video Recorders), and Car Monitors, empowering businesses worldwide to enhance safety, efficiency, and operational control.

Our Core Products

MDVR & MNVR: Advanced in-vehicle surveillance systems tailored for real time monitoring, GPS tracking and data analytics. Ideal for fleet management，public transportation，and logistics.
Car Monitors：High performance displays designed for seamless integration with vehicle systems，ensuring clear visibility and user friendly interfaces for drivers and operators.

Technology & Innovation

At Seemetech, we pride ourselves on our 20-member R&D team—a passionate group of engineers and industry experts committed to pushing technological boundaries. By leveraging AI, IoT, and cloud-based platforms, we continuously refine our products to meet evolving market demands.
Our Mission

We strive to redefine vehicle safety and connectivity through intelligent solutions that bridge the gap between technology and practicality. By partnering with global clients, we aim to drive progress in smart transportation ecosystems and deliver unparalleled value to industries worldwide.
Our Vision

As we expand our global footprint, Seemetech remains steadfast in its commitment to innovation, customer-centricity, and sustainable growth. Join us in shaping the future of mobility.

FAQs

Do you support OEM and ODM services?

Yes,we support OEM and ODM services. We have a professional R&D team to support various customization.
Are you a manufacturer factory or a trading company?

We are the original manufacturer located in Shenzhen,China, which has rich experience in car monitors ,car cameras and car players , warmly welcome to visit our factory.
How do you guarantee product quality?

All goods are 100% inspected before shipping, we do at least 5 tests, including In-coming raw material test, sample test then bulk produce, functional test, burn-in test, appearance inspection.
How to place an order?

1.Choose the product you like, confirm the model and quantity and place the order on Alibaba directly.
2. Tell us your special request and then we will recommend the right items accordingly ,and match them together for you then.
What's the MOQ for products?

MOQ no limited, sample orders also welcomed.
What's the payment terms?

T/T, PayPal, Ali pay,etc.
For sample orders, 100% in advance, for bulk orders 30% or 50% deposit, the balance before shipment.
What are the shipping method?

By express(DHL,Fedex, UPS), by sea, by air, or other available shipping methods appointed by customers, provide tracking number and estimated time of arrival.
What's the lead time?

1. Sample order 1 to 5 PCS: 3-7 working days.
2. General order 100 to200PCS: 7-15 working days.
3. Bulk order 500 to 1000PCS: 15-30 working days.(All depends on the quantity)
What after-sales support is available?

All products have one year warranty and we have professional technical support. If you have any problems with the product, we will provide solutions at any time.
